CPLDs (Complex Programmable Logic Devices)
Browse available CPLDs (Complex Programmable Logic Devices) part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM9320RC208-20IC CPLD 320MC 20NS 208RQFP |
1,412 | - |
|
Datasheet | MAX® 9000 | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.75V ~ 5.25V | 20 | 320 | 6000 | 132 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
|
EPM9320RI208-20IC CPLD 320MC 20NS 208RQFP |
1,152 | - |
|
Datasheet | MAX® 9000 | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.5V ~ 5.5V | 20 | 320 | 6000 | 132 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
EPM9400RC208-15IC CPLD 400MC 15NS 208RQFP |
4,525 | - |
|
Datasheet | MAX® 9000 | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 25 | 400 | 8000 | 139 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
|
EPM9400RC208-20IC CPLD 400MC 20NS 208RQFP |
2,168 | - |
|
Datasheet | MAX® 9000 | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.75V ~ 5.25V | 25 | 400 | 8000 | 139 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
EPM9400RC240-15IC CPLD 400MC 15NS 240RQFP |
4,265 | - |
|
Datasheet | MAX® 9000 | 240-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 25 | 400 | 8000 | 159 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 240-RQFP (32x32) |
|
EPM9400RC240-20IC CPLD 400MC 20NS 240RQFP |
1,821 | - |
|
Datasheet | MAX® 9000 | 240-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.75V ~ 5.25V | 25 | 400 | 8000 | 159 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 240-RQFP (32x32) |
|

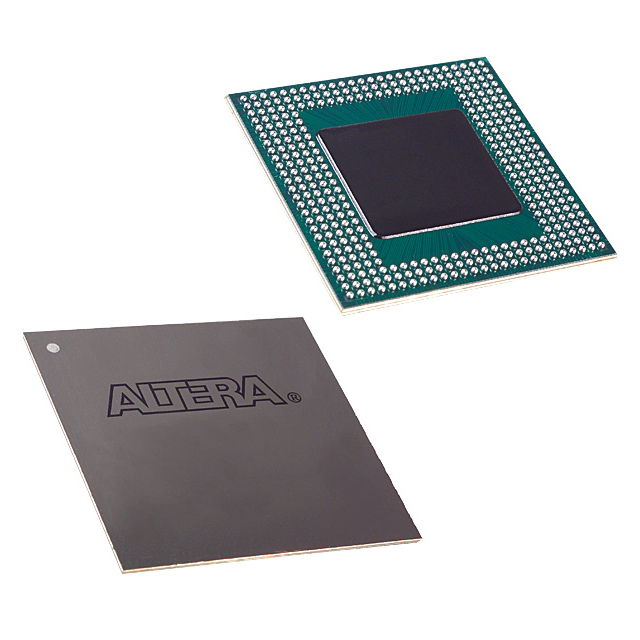

EPM9560ABC356-10IC CPLD 560MC 10NS 356BGA |
3,310 | - |
|
Datasheet | MAX® 9000A | 356-LBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 216 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 356-BGA (35x35) |
|
|
EPM9560ARC208-10NIC CPLD 560MC 10NS 208RQFP |
2,089 | - |
|
Datasheet | MAX® 9000A | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 153 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
|
EPM9560ARC240-10IC CPLD 560MC 10NS 240RQFP |
3,515 | - |
|
Datasheet | MAX® 9000A | 240-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 191 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 240-RQFP (32x32) |
|
|
EPM9560RC208-15IC CPLD 560MC 15NS 208RQFP |
2,308 | - |
|
Datasheet | MAX® 9000 | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 153 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
|
EPM9560RC208-20IC CPLD 560MC 20NS 208RQFP |
3,998 | - |
|
Datasheet | MAX® 9000 | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 153 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
|
EPM9560RC240-20IC CPLD 560MC 20NS 240RQFP |
4,063 | - |
|
Datasheet | MAX® 9000 | 240-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 191 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 240-RQFP (32x32) |
|
EPM9560RC304-15IC CPLD 560MC 15NS 304RQFP |
3,323 | - |
|
Datasheet | MAX® 9000 | 304-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 35 | 560 | 12000 | 216 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 304-RQFP (40x40) |
|
|
EPM9560RI304-20IC CPLD 560MC 20NS 304RQFP |
3,426 | - |
|
Datasheet | MAX® 9000 | 304-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.5V ~ 5.5V | 35 | 560 | 12000 | 216 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 304-RQFP (40x40) |
|
XCR3256XL-10PQG208CIC CPLD 256MC 9.1NS 208QFP |
2,164 | - |
|
Datasheet | CoolRunner XPLA3 | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable (min 1K program/erase cycles) | 9.1 ns | 3V ~ 3.6V | 16 | 256 | 6000 | 164 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
XCR3256XL-10PQG208IIC CPLD 256MC 9.1NS 208QFP |
3,541 | - |
|
Datasheet | CoolRunner XPLA3 | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable (min 1K program/erase cycles) | 9.1 ns | 2.7V ~ 3.6V | 16 | 256 | 6000 | 164 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
XCR3256XL-12PQG208CIC CPLD 256MC 10.8NS 208QFP |
2,212 | - |
|
Datasheet | CoolRunner XPLA3 | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable (min 1K program/erase cycles) | 10.8 ns | 3V ~ 3.6V | 16 | 256 | 6000 | 164 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
XCR3256XL-12PQG208IIC CPLD 256MC 10.8NS 208QFP |
3,440 | - |
|
Datasheet | CoolRunner XPLA3 | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable (min 1K program/erase cycles) | 10.8 ns | 2.7V ~ 3.6V | 16 | 256 | 6000 | 164 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
XCR3256XL-7PQG208CIC CPLD 256MC 7NS 208QFP |
1,563 | - |
|
Datasheet | CoolRunner XPLA3 | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable (min 1K program/erase cycles) | 7 ns | 3V ~ 3.6V | 16 | 256 | 6000 | 164 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
XCR3384XL-10PQG208IIC CPLD 384MC 9NS 208QFP |
4,494 | - |
|
Datasheet | CoolRunner XPLA3 | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable (min 1K program/erase cycles) | 9 ns | 2.7V ~ 3.6V | 24 | 384 | 9000 | 172 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
CPLDs (Complex Programmable Logic Devices) FAQ
Common questions about selecting, comparing and sourcing CPLDs (Complex Programmable Logic Devices) components through Winsun (HK) Electronics.
What should I check when selecting CPLDs (Complex Programmable Logic Devices) components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific CPLDs (Complex Programmable Logic Devices) part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find CPLDs (Complex Programmable Logic Devices) parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for CPLDs (Complex Programmable Logic Devices) components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
