Encoders
Browse available Encoders part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACZ11BR4E-15FD1-20CROTARY ENCODER INCREMENT 20PPR |
455 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ACZ11BR2E-20FD1-20CZ-0546ROTARY ENCODER INCREMENT 20PPR |
1,939 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
290VAA5F201A2ROTARY ENCODER MECHANICAL 20PPR |
281 | - |
|
Datasheet | 290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
PEC09-2120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,791 | - |
|
Datasheet | PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC11S-9215F-S0015ROTARY ENCODER MECHANICAL 15PPR |
519 | - |
|
Datasheet | PEC11S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
482016514001MECHANICAL INCREMENTAL ENCODER S |
541 | - |
|
Datasheet | WS-ENTV | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | - | - | - |
|
|
482020514001MECHANICAL INCREMENTAL ENCODER S |
249 | - |
|
Datasheet | WS-ENTV | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | - | - | - |
|
ECW1J-C28-BC0024LROTARY ENCODER MECHANICAL 24PPR |
245 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
288T232R161A2ROTARY ENCODER MECHANICAL 16PPR |
757 | - |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Round End | Yes | No | Panel Mount | Right Angle | Solder Lug | 50K | - | - |
|

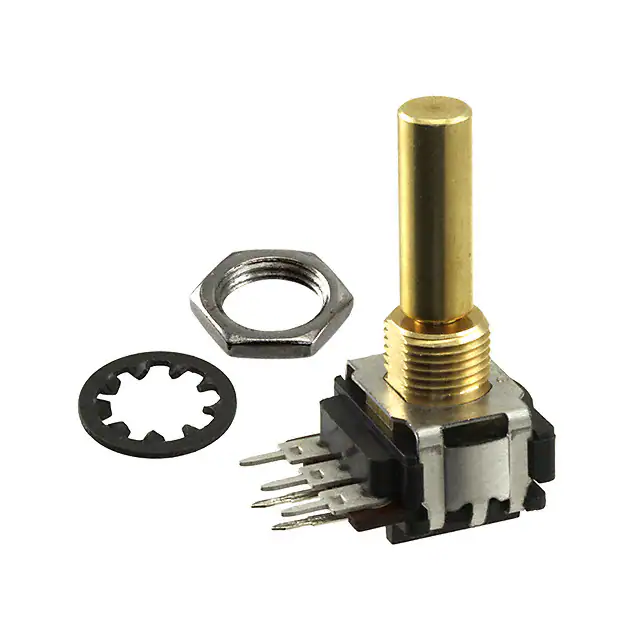

288X232R161B2ROTARY ENCODER MECHANICAL 4PPR |
362 | - |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 4 | - | 1/4" Dia Round End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 50K | - | - |
|
EC11E18244AUROTARY ENCODER MECHANICAL 18PPR |
729 | - |
|
Datasheet | EC11 | Tray | Active | - | Mechanical | Quadrature (Incremental) | 18 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

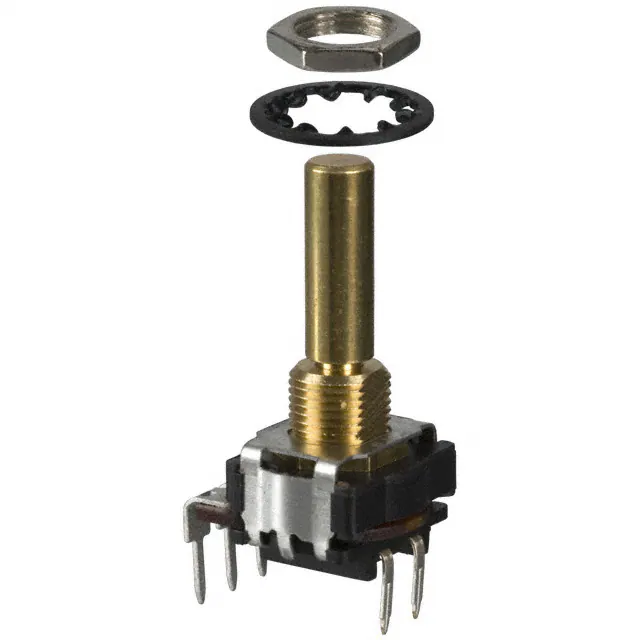

288V232R161B2ROTARY ENCODER MECHANICAL 16PPR |
2,314 | - |
|
Datasheet | 288 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Round End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
|
EC11E18244A5METAL SHAFT ENCODERS |
1,081 | - |
|
Datasheet | EC11E | Tray | Active | - | Incremental | Quadrature (Incremental) | 18 | 5V | 4.5mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC11E09244AQMETAL SHAFT ENCODERS |
1,037 | - |
|
Datasheet | EC11E | Tray | Active | - | Incremental | Quadrature (Incremental) | 9 | 5V | 4.5mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC11E15244B2ROTARY ENCODER MECHANICAL 15PPR |
937 | - |
|
Datasheet | EC11 | Tray | Active | - | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
ACZ16NBR1E-15FD1-24CROTARY ENCODER INCREMENT 24PPR |
617 | - |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
3315C-001-006LROTARY ENCODER MECHANICAL 6PPR |
2,395 | - |
|
Datasheet | 3315 | Tube | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
|
EC28A1560401RING TYP ENCODERS |
569 | - |
|
Datasheet | EC28A | Tray | Active | - | - | - | 15 | 5V | 28mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
ECW0J-B24-AC0006LROTARY ENCODER MECHANICAL 6PPR |
656 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-C24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
279 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
Encoders FAQ
Common questions about selecting, comparing and sourcing Encoders components through Winsun (HK) Electronics.
What should I check when selecting Encoders components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Encoders part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Encoders parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Encoders components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
