Encoders
Browse available Encoders part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC12R-3225F-S0024ROTARY ENCODER MECHANICAL 24PPR |
926 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4020F-S0024ROTARY ENCODER MECHANICAL 24PPR |
851 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4215F-S0024ROTARY ENCODER |
814 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
EC12D1524403ROTARY ENCODER MECHANICAL 15PPR |
617 | - |
|
Datasheet | EC12 | Tray | Active | - | Incremental | Quadrature (Incremental) | 15 | 5V | 12mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-3217F-S0024ROTARY ENCODER |
275 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
PEC11R-4215K-S0012ROTARY ENCODER MECHANICAL 12PPR |
7,049 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4015F-S0024ROTARY ENCODER MECHANICAL 24PPR |
3,091 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4315F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,439 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN12-HN22AF25ROTARY ENCODER MECHANICAL 24PPR |
601 | - |
|
Datasheet | EN12 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

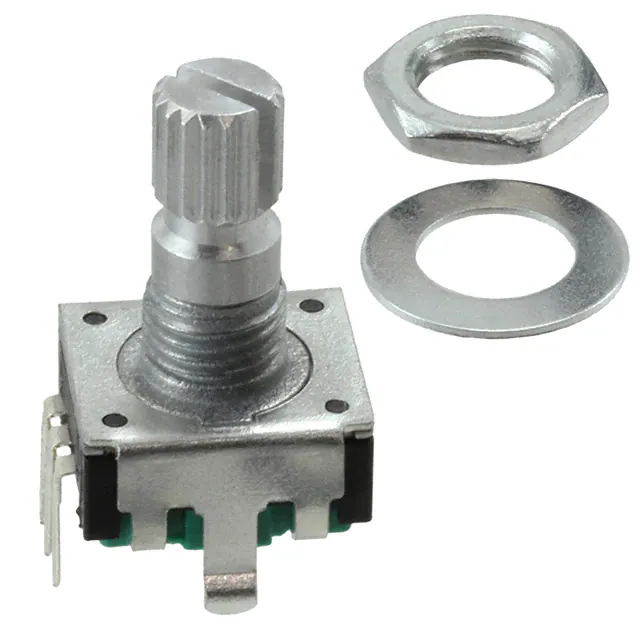

PEC11R-4215K-N0024ROTARY ENCODER MECHANICAL 24PPR |
4,679 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4315K-S0012ROTARY ENCODER MECHANICAL 12PPR |
832 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-VVD00203BROTARY ENCODER MECHANICAL 3PPR |
3,960 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Mechanical | - | 3 | - | - | No | No | Surface Mount | Horizontal | PC Pin | 70K | - | - |
|
|
EC12E24204A2ROTARY ENCODER MECHANICAL 24PPR |
1,339 | - |
|
Datasheet | EC12 | Tray | Active | - | Incremental | Quadrature (Incremental) | 24 | 5V | 12mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4015F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,597 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

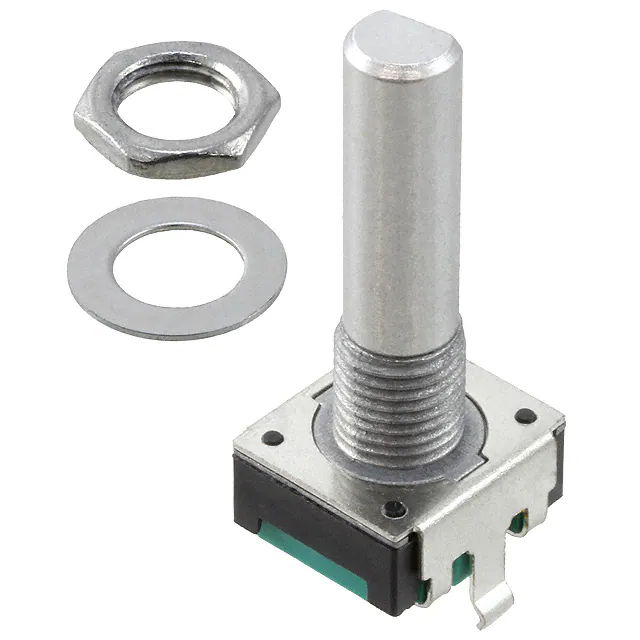

PEC11R-4025F-N0024ROTARY ENCODER MECHANICAL 24PPR |
817 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EC12E24204A9ROTARY ENCODER MECHANICAL 24PPR |
1,601 | - |
|
Datasheet | EC12 | Tray | Active | - | Incremental | Quadrature (Incremental) | 24 | 5V | 12mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC16-2215F-S0024ROTARY ENCODER MECHANICAL 24PPR |
2,190 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
PEC16-4020F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,179 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC16-4015F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,126 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC16-2220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
906 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
Encoders FAQ
Common questions about selecting, comparing and sourcing Encoders components through Winsun (HK) Electronics.
What should I check when selecting Encoders components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Encoders part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Encoders parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Encoders components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
