Encoders
Browse available Encoders part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
61S100-2ROTARY ENCODER OPTICAL 100PPR |
3,746 | - |
|
Datasheet | 61S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
61S128-2ROTARY ENCODER OPTICAL 128PPR |
2,579 | - |
|
Datasheet | 61S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
61S64-2ROTARY ENCODER OPTICAL 64PPR |
4,656 | - |
|
Datasheet | 61S | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
513360-11ROTARY ENCODER MECHANICAL 11PPR |
2,545 | - |
|
Datasheet | 51 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 11 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
|
513360-9ROTARY ENCODER MECHANICAL 9PPR |
1,759 | - |
|
Datasheet | 51 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 9 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
|
513361-10ROTARY ENCODER MECHANICAL 10PPR |
4,157 | - |
|
Datasheet | 51 | Bulk | Active | Not Verified | Mechanical | BCD (Absolute) | 10 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
|
61S75-2-060ROTARY ENCODER OPTICAL 75PPR |
2,511 | - |
|
Datasheet | 61S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 75 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
62S15-M5-PHVROTARY ENCODER OPTICAL 24PPR |
3,085 | - |
|
Datasheet | 62S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 24 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
25BSP22-B-3-16CROTARY ENCODER MECHANICAL 16PPR |
2,891 | - |
|
Datasheet | 25 | Bulk | Active | Not Verified | Mechanical | Binary (Absolute) | 16 | - | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Right Angle | PC Pin | 50K | - | - |
|
|
62S30-M0-PHROTARY ENCODER OPTICAL 12PPR |
4,202 | - |
|
Datasheet | 62S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 12 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
25LB18-Q-ZROTARY ENCODER MECHANICAL 20PPR |
3,339 | - |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
25LR10-QROTARY ENCODER MECHANICAL 36PPR |
3,086 | - |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 36 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
25LR11-QROTARY ENCODER MECHANICAL 32PPR |
4,414 | - |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 32 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
25LR22-QROTARY ENCODER MECHANICAL 16PPR |
3,813 | - |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
HEDR-55L1-BY07ROTARY ENCODER OPTICAL 3600PPR |
4,825 | - |
|
Datasheet | HEDR | Bulk | Obsolete | Not Verified | Optical | Quadrature with Index (Incremental) | 3600 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
|
HEDR-55L2-BY07ROTARY ENCODER OPTICAL 3600PPR |
3,684 | - |
|
Datasheet | HEDR | Bulk | Obsolete | Not Verified | Optical | Quadrature with Index (Incremental) | 3600 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
|
HEDR-55L2-BY09ROTARY ENCODER OPTICAL 3600PPR |
2,946 | - |
|
Datasheet | HEDR | Bulk | Obsolete | Not Verified | Optical | Quadrature with Index (Incremental) | 3600 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
|
HEDR-55L2-BYL8ROTARY ENCODER OPTICAL 3600PPR |
2,680 | - |
|
Datasheet | HEDR | Bulk | Obsolete | Not Verified | Optical | Quadrature with Index (Incremental) | 3600 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|

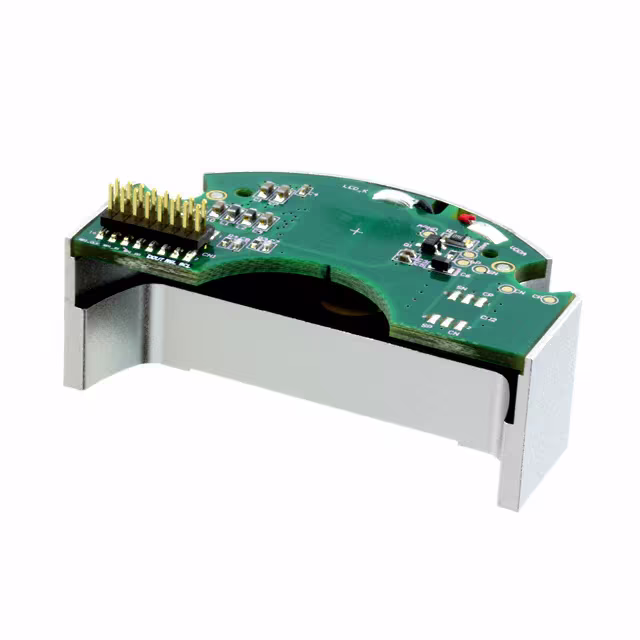

AEAT-9000-1GSH1ROTARY ENCODER OPTICAL 2048PPR |
3,562 | - |
|
Datasheet | - | Bulk | Obsolete | Not Verified | Optical | Binary (Absolute) | 2048 | 5V | - | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|
|
HEDR-55L2-BH09ROTARY ENCODER OPTICAL 2048PPR |
4,771 | - |
|
Datasheet | HEDR | Bulk | Obsolete | Not Verified | Optical | Quadrature with Index (Incremental) | 2048 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
Encoders FAQ
Common questions about selecting, comparing and sourcing Encoders components through Winsun (HK) Electronics.
What should I check when selecting Encoders components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Encoders part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Encoders parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Encoders components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
