Encoders
Browse available Encoders part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
600128CN1ROTARY ENCODER OPTICAL 128PPR |
4,169 | - |
|
Datasheet | 600 | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | Cable with Connector | 10M | - | - |
|
EM14R0B-R20-R064SROTARY ENCODER OPTICAL 64PPR |
1,532 | - |
|
Datasheet | EM14 | Tray | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 1M | - | - |
|
510E1A48F204PCROTARY ENCODER MECHANICAL 4PPR |
2,155 | - |
|
Datasheet | 510 | Box | Obsolete | Not Verified | Mechanical | Gray Code (Absolute) | 4 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
510E1A48F204PDROTARY ENCODER MECHANICAL 4PPR |
1,179 | - |
|
Datasheet | 510 | Box | Obsolete | Not Verified | Mechanical | Gray Code (Absolute) | 4 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
288V222R161B2ROTARY ENCODER MECHANICAL 16PPR |
2,430 | - |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Round End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|

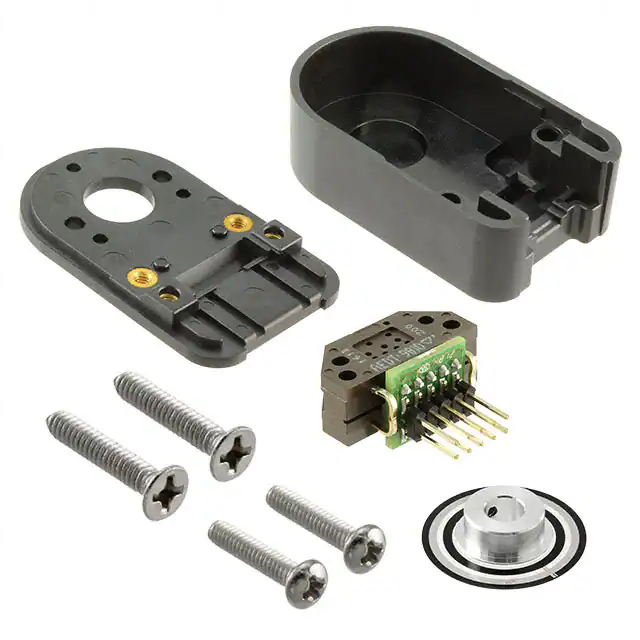

AEDC-5550-W12ROTARY ENCODER OPTICAL 5000PPR |
3,612 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | - | - | - | - | - | - |
|

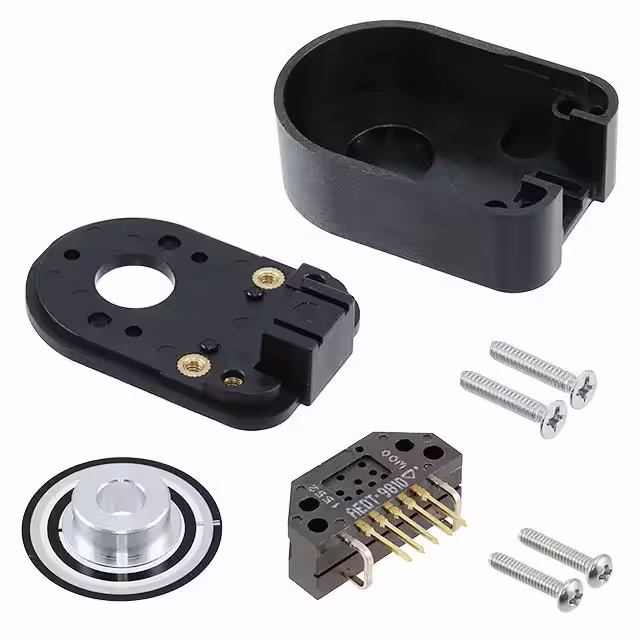

AEDC-5560-W12ROTARY ENCODER OPTICAL 2500PPR |
1,771 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 4.5V ~ 5.5V | Hole for Shaft | No | No | - | - | - | - | - | - |
|
|
AEDC-5560-W13ROTARY ENCODER OPTICAL 2500PPR |
1,019 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 4.5V ~ 5.5V | Hole for Shaft | No | No | - | - | - | - | - | - |
|
|
AEDC-5560-Z13ROTARY ENCODER OPTICAL 5000PPR |
2,784 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | - | - | - | - | - | - |
|

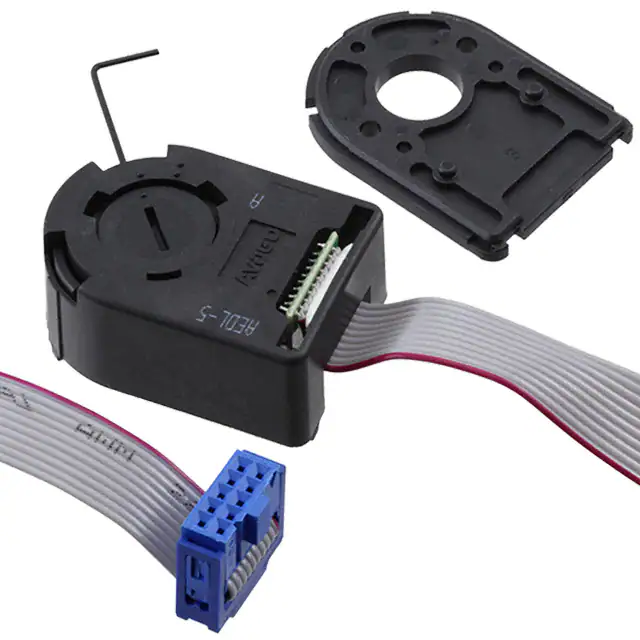

AEDL-5810-W11ROTARY ENCODER OPTICAL 2500PPR |
1,863 | - |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
|
AEDL-5810-W12ROTARY ENCODER OPTICAL 2500PPR |
3,964 | - |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
|
AEDL-5810-J01ROTARY ENCODER OPTICAL 1024PPR |
1,229 | - |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1024 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
|
AEDL-5810-U06ROTARY ENCODER OPTICAL 2048PPR |
1,256 | - |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2048 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
|
AEDT-9810-A00ROTARY ENCODER OPTICAL 500PPR |
1,591 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDT-9811-I00ROTARY ENCODER OPTICAL 512PPR |
3,189 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDT-9811-L00ROTARY ENCODER OPTICAL 1250PPR |
2,170 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1250 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDT-9811-R00ROTARY ENCODER OPTICAL 4096PPR |
4,287 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 4096 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDT-9811-U00ROTARY ENCODER OPTICAL 2048PPR |
1,924 | - |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2048 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDC-5520-B03ENCODER 2CH 1000CPR 1/8" |
3,760 | - |
|
Datasheet | AEDC-55xx | Bulk | Active | Not Verified | Optical | Voltage | 1000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
AEDC-5550-B12ENCODER 3CH 1000CPR 6MM |
4,029 | - |
|
Datasheet | AEDC-55xx | Bulk | Active | Not Verified | Optical | Differential Voltage | 1000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
Encoders FAQ
Common questions about selecting, comparing and sourcing Encoders components through Winsun (HK) Electronics.
What should I check when selecting Encoders components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Encoders part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Encoders parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Encoders components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
