FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

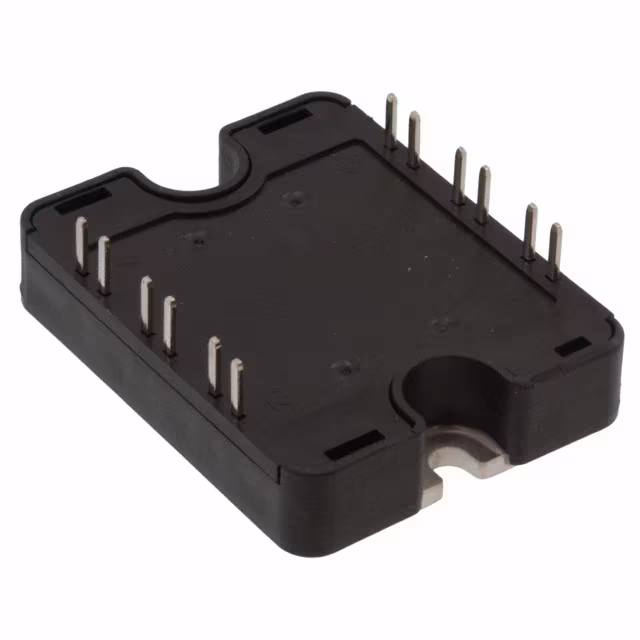

APTC60AM45B1GMOSFET 3N-CH 600V 49A SP1 |
4,893 | - |
|
Datasheet | CoolMOS™ | SP1 | Bulk | Active | MOSFET (Metal Oxide) | 3 N Channel (Phase Leg + Boost Chopper) | - | 600V | 49A | 45mOhm @ 24.5A, 10V | 3.9V @ 3mA | 150nC @ 10V | 7200pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|

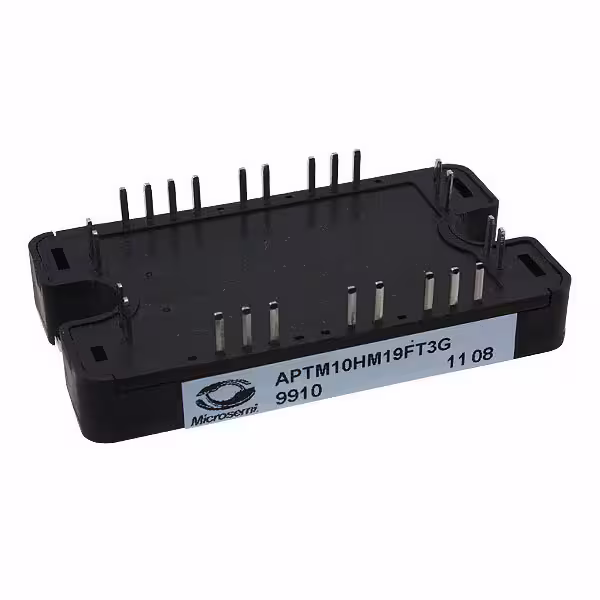

APTM10HM19FT3GMOSFET 4N-CH 100V 70A SP3 |
5,219 | - |
|
Datasheet | - | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 100V | 70A | 21mOhm @ 35A, 10V | 4V @ 1mA | 200nC @ 10V | 5100pF @ 25V | 208W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTC60HM70T3GMOSFET 4N-CH 600V 39A SP3 |
9,416 | - |
|
Datasheet | - | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 600V | 39A | 70mOhm @ 39A, 10V | 3.9V @ 2.7mA | 259nC @ 10V | 7000pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTC60AM45BC1GMOSFET 3N-CH 600V 49A SP1 |
6,081 | - |
|
Datasheet | CoolMOS™ | SP1 | Bulk | Active | MOSFET (Metal Oxide) | 3 N Channel (Phase Leg + Boost Chopper) | - | 600V | 49A | 45mOhm @ 24.5A, 10V | 3.9V @ 3mA | 150nC @ 10V | 7200pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
|
APTM100DSK35T3GMOSFET 2N-CH 1000V 22A SP3 |
8,304 | - |
|
Datasheet | - | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTM10DSKM09T3GMOSFET 2N-CH 100V 139A SP3 |
5,304 | - |
|
Datasheet | - | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 139A | 10mOhm @ 69.5A, 10V | 4V @ 2.5mA | 350nC @ 10V | 9875pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
|
APTM100H46FT3GMOSFET 4N-CH 1000V 19A SP3 |
7,607 | - |
|
Datasheet | POWER MOS 8™ | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 19A | 552mOhm @ 16A, 10V | 5V @ 2.5mA | 260nC @ 10V | 6800pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|

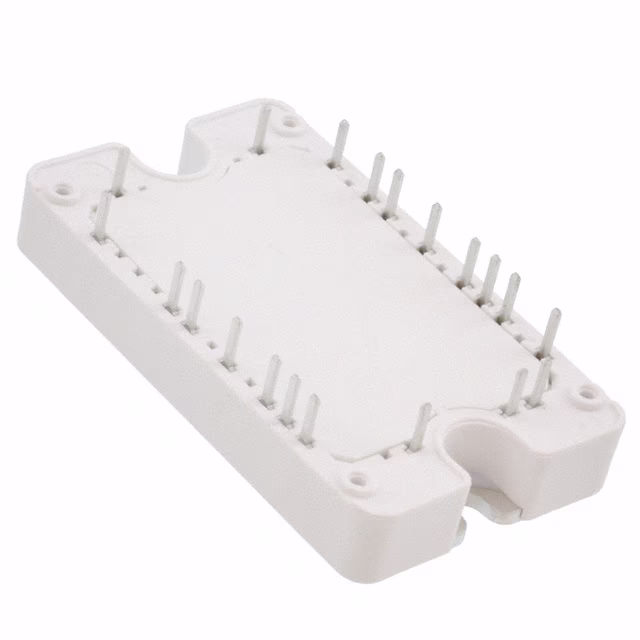

APTC60HM70RT3GMOSFET 4N-CH 600V 39A SP3 |
4,126 | - |
|
Datasheet | CoolMOS™ | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) + Bridge Rectifier | - | 600V | 39A | 70mOhm @ 39A, 10V | 3.9V @ 2.7mA | 259nC @ 10V | 7000pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | - | SP3 |
|
|
APTC60AM24T1GMOSFET 2N-CH 600V 95A SP1 |
3,810 | - |
|
Datasheet | - | SP1 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
|
APTC60HM45T1GMOSFET 4N-CH 600V 49A SP1 |
4,671 | - |
|
Datasheet | - | SP1 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 600V | 49A | 45mOhm @ 24.5A, 10V | 3.9V @ 3mA | 150nC @ 10V | 7200pF @ 25V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
