FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTC80A15SCTGMOSFET 2N-CH 800V 28A SP4 |
8,906 | - |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 800V | 28A | 150mOhm @ 14A, 10V | 3.9V @ 2mA | 180nC @ 10V | 4507pF @ 25V | 277W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTC80A10SCTGMOSFET 2N-CH 800V 42A SP4 |
5,743 | - |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 800V | 42A | 100mOhm @ 21A, 10V | 3.9V @ 3mA | 273nC @ 10V | 6761pF @ 25V | 416W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
MSCC60VRM99CT3AGMOSFET 600V 19A SP3F |
7,764 | - |
|
Datasheet | - | Module | Tube | Active | - | - | - | 600V | 19A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP3F |
|
|
APTM20AM10FTGMOSFET 2N-CH 200V 175A SP4 |
3,590 | - |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 200V | 175A | 12mOhm @ 87.5A, 10V | 5V @ 5mA | 224nC @ 10V | 13700pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM20HM20FTGMOSFET 4N-CH 200V 89A SP4 |
8,659 | - |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 200V | 89A | 24mOhm @ 44.5A, 10V | 5V @ 2.5mA | 112nC @ 10V | 6850pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM10HM09FT3GMOSFET 4N-CH 100V 139A SP3 |
9,708 | - |
|
Datasheet | - | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 100V | 139A | 10mOhm @ 69.5A, 10V | 4V @ 2.5mA | 350nC @ 10V | 9875pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTM08TAM04PGMOSFET 6N-CH 75V 120A SP6-P |
8,568 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 75V | 120A | 4.5mOhm @ 60A, 10V | 4V @ 1mA | 153nC @ 10V | 4530pF @ 25V | 138W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
APTM100H45FT3GMOSFET 4N-CH 1000V 18A SP3 |
3,715 | - |
|
Datasheet | - | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 18A | 540mOhm @ 9A, 10V | 5V @ 2.5mA | 154nC @ 10V | 4350pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
MSCSM70VM19C3AGMOSFET 2N-CH 700V 124A SP3F |
6,872 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 700V | 124A (Tc) | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215nC @ 20V | 4500pF @ 700V | 365W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|

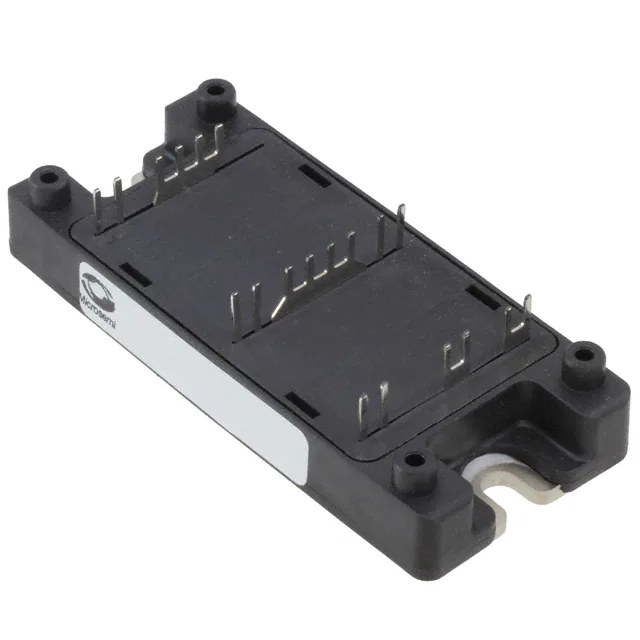

APTM50AM38FTGMOSFET 2N-CH 500V 90A SP4 |
3,471 | - |
|
Datasheet | POWER MOS 7® | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 90A | 45mOhm @ 45A, 10V | 5V @ 5mA | 246nC @ 10V | 11200pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
