FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM50TAM65FPGMOSFET 6N-CH 500V 51A SP6-P |
9,047 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 500V | 51A | 78mOhm @ 25.5A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7000pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
APTM100A13DGMOSFET 2N-CH 1000V 65A SP6 |
3,833 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 65A | 156mOhm @ 32.5A, 10V | 5V @ 6mA | 562nC @ 10V | 15200pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM20HM10FGMOSFET 4N-CH 200V 175A SP6 |
5,401 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 200V | 175A | 12mOhm @ 87.5A, 10V | 5V @ 5mA | 224nC @ 10V | 13700pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM100A13SGMOSFET 2N-CH 1000V 65A SP6 |
5,666 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 65A | 156mOhm @ 32.5A, 10V | 5V @ 6mA | 562nC @ 10V | 15200pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM100TA35FPGMOSFET 6N-CH 1000V 22A SP6-P |
2,126 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|

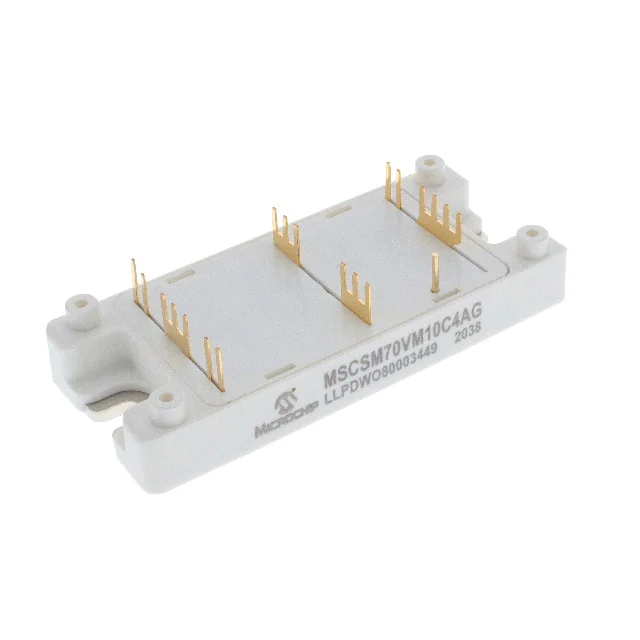

MSCSM70VM10C4AGMOSFET 2N-CH 700V 238A SP4 |
1 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 700V | 238A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA | 430nC @ 20V | 9000pF @ 700V | 674W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP4 |
|
APTM20DUM04GMOSFET 2N-CH 200V 372A SP6 |
5,791 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 200V | 372A | 5mOhm @ 186A, 10V | 5V @ 10mA | 560nC @ 10V | 28900pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM50AM19FGMOSFET 2N-CH 500V 163A SP6 |
4,054 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 163A | 22.5mOhm @ 81.5A, 10V | 5V @ 10mA | 492nC @ 10V | 22400pF @ 25V | 1136W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM10DUM02GMOSFET 2N-CH 100V 495A SP6 |
6,334 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 495A | 2.5mOhm @ 200A, 10V | 4V @ 10mA | 1360nC @ 10V | 40000pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM120A20DGMOSFET 2N-CH 1200V 50A SP6 |
2,973 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 50A | 240mOhm @ 25A, 10V | 5V @ 6mA | 600nC @ 10V | 15200pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
