FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM50HM35FGMOSFET 4N-CH 500V 99A SP6 |
7,410 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 99A | 39mOhm @ 49.5A, 10V | 5V @ 5mA | 280nC @ 10V | 14000pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|

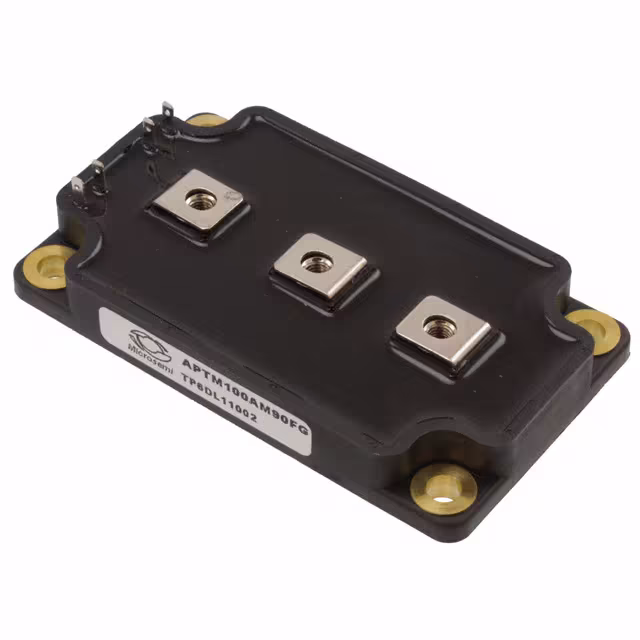

APTM100AM90FGMOSFET 2N-CH 1000V 78A SP6 |
6,139 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 78A | 105mOhm @ 39A, 10V | 5V @ 10mA | 744nC @ 10V | 20700pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM120A15FGMOSFET 2N-CH 1200V 60A SP6 |
6,464 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 60A | 175mOhm @ 30A, 10V | 5V @ 10mA | 748nC @ 10V | 20600pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|

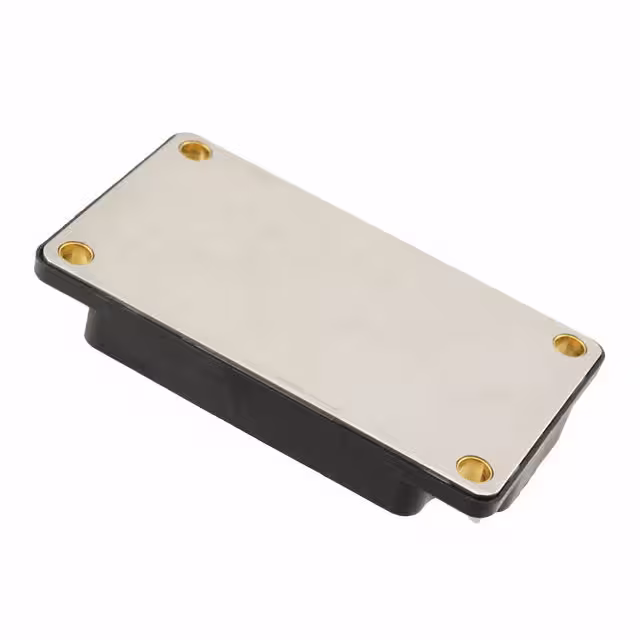

APTM100H18FGMOSFET 4N-CH 1000V 43A SP6 |
3,903 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 43A | 210mOhm @ 21.5A, 10V | 5V @ 5mA | 372nC @ 10V | 10400pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|

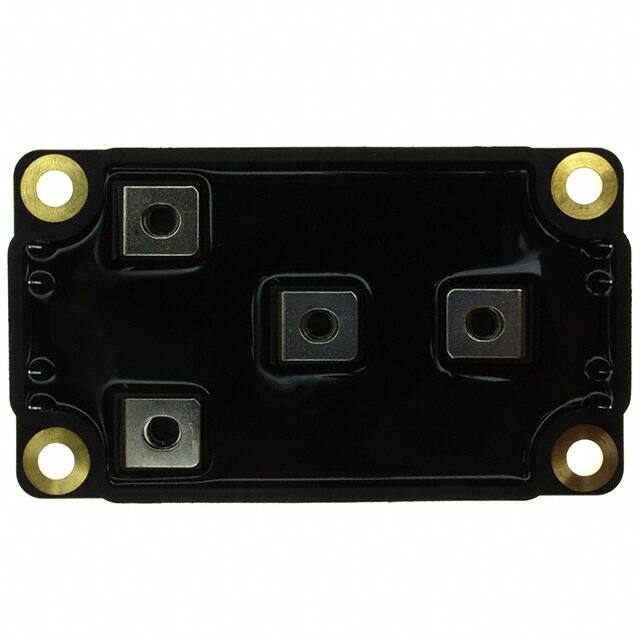

APTM120H29FGMOSFET 4N-CH 1200V 34A SP6 |
8,924 | - |
|
Datasheet | POWER MOS 7® | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 34A | 348mOhm @ 17A, 10V | 5V @ 5mA | 374nC @ 10V | 10300pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM100TA35SCTPGMOSFET 6N-CH 1000V 22A SP6-P |
8,239 | - |
|
Datasheet | POWER MOS 7® | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
.jpg "MSCSM120HM16CT3AG")
|

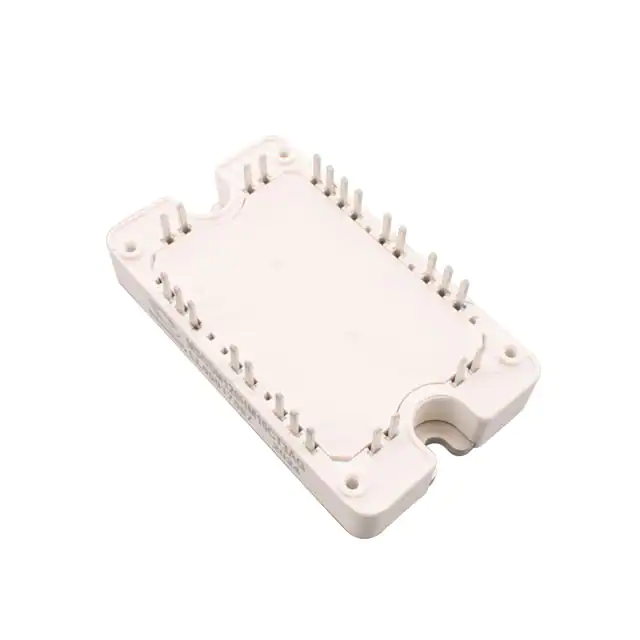

MSCSM120HM16CT3AGMOSFET 4N-CH 1200V 173A SP3F |
9,755 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 4 N-Channel | - | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 745W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
APTC60TAM21SCTPAGMOSFET 6N-CH 600V 116A SP6-P |
5,946 | - |
|
Datasheet | CoolMOS™ | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 600V | 116A | 21mOhm @ 88A, 10V | 3.6V @ 6mA | 580nC @ 10V | 13000pF @ 100V | 625W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
APTMC170AM60CT1AGMOSFET 2N-CH 1700V 50A SP1 |
9,853 | - |
|
Datasheet | - | SP1 | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 50A (Tc) | 60mOhm @ 50A, 20V | 2.3V @ 2.5mA (Typ) | 190nC @ 20V | 3080pF @ 1000V | 350W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
|
MSCSM70HM05CAGSIC MOSFET |
2,214 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
