FETs, MOSFETs
Use the filters and product table below to compare FETs, MOSFETs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

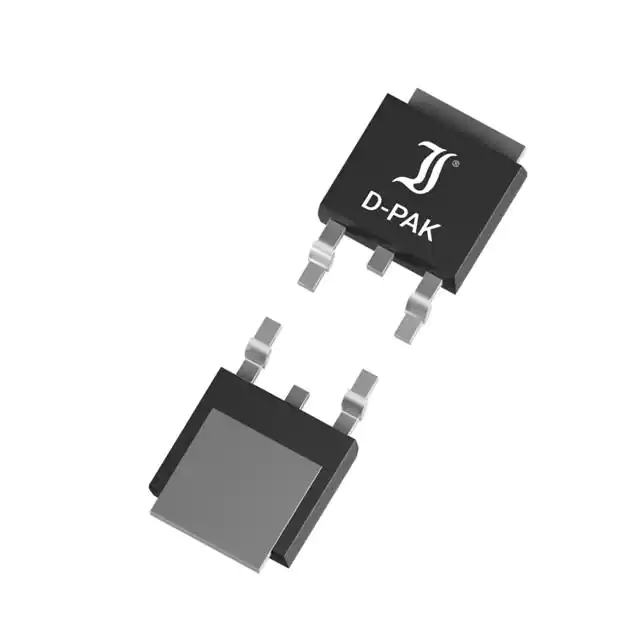

DI040P04D1-AQMOSFET DPAK P -40V -40A 0.015? 1 |
2,352 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 15mOhm @ 10A, 10V | 2.5V @ 250µA | 59 nC @ 10 V | ±20V | 3538 pF @ 20 V | - | 52W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252 (DPAK) |
|
DIT100N10MOSFET TO220AB N 100V 0.0099OHM |
997 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tc) | 10V | 13mOhm @ 40A, 10V | 4V @ 250µA | 85 nC @ 10 V | ±20V | 4800 pF @ 50 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
DI2A2N100D1KMOSFET, DPAK, N-CH, 1000V, 2.2A |
2,480 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2.2A (Tc) | 10V | 6.8Ohm @ 1.5A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±25V | 510 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
DI015N25D1MOSFET DPAK N 250V 0.2OHM 175C |
2,500 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 15A (Tc) | 10V | 255mOhm @ 15A, 10V | 4.5V @ 250µA | 8.9 nC @ 10 V | ±20V | 475 pF @ 125 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
DIT120N08MOSFET TO220AB N 80V 0.0049OHM |
152 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 6mOhm @ 40A, 10V | 4V @ 250µA | 163 nC @ 10 V | ±20V | 6500 pF @ 25 V | - | 220W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
DI100N10PQMOSFET PWRQFN 5X6 100V 0.0045OHM |
4,792 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tc) | 4.5V, 10V | 5mOhm @ 30A, 10V | 3V @ 250µA | 64 nC @ 10 V | ±20V | 3400 pF @ 30 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-QFN (5x6) |
|
|
DI150N04PQMOSFET PWRQFN 5X6 40V 0.0014OHM |
5,000 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 150A (Tc) | 10V | 1.45mOhm @ 75A, 10V | 4V @ 250µA | 61 nC @ 10 V | ±20V | 3950 pF @ 20 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
|
DI070P04PQ-AQMOSFET, POWERQFN 5X6, -40V, -70A |
3,230 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | 2.5V @ 250µA | 125 nC @ 10 V | ±20V | 7560 pF @ 20 V | - | 46W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
|
DI100N04D1-AQMOSFET, DPAK, 40V, 100A, 0, 69W |
2,494 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | - | - | 100A | - | - | - | - | - | - | - | 69W | - | - | - | Surface Mount | TO-252 (DPAK) |
|
|
DI110N06D1MOSFET DPAK N 65V 0.0032OHM |
2,490 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 65 V | 110A (Tc) | 4.5V, 10V | 3.2mOhm @ 30A, 10V | 2.5V @ 250µA | - | ±20V | 4211 pF @ 30 V | - | 71W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
FETs, MOSFETs FAQ
Common questions about filtering, comparing and sourcing FETs, MOSFETs components.
How can I narrow the FETs, MOSFETs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FETs, MOSFETs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
