Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1532AFIXED IND 10UH 1.5A 110 MOHM TH |
7,174 | - |
|
Datasheet | 1532 | Axial | Bulk | Active | Wirewound | - | 10 µH | ±10% | 1.5 A | - | Unshielded | 110mOhm Max | 69 @ 2.5MHz | 40MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|

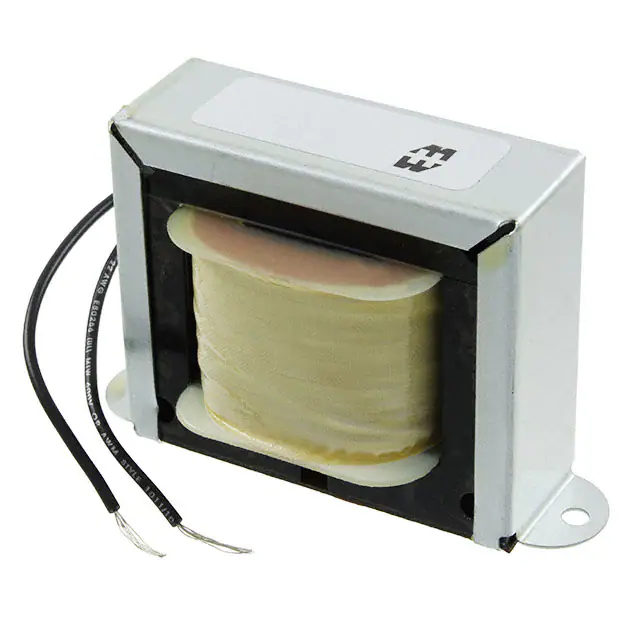

159ZJFIXED IND 10MH 5A 160 MOHM CHASS |
101 | - |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 5 A | - | Unshielded | 160mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
195C20FIXED IND 1MH 20A 13 MOHM CHASS |
4,999 | - |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 20 A | - | Unshielded | 13mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.000" L x 3.060" W (76.20mm x 77.72mm) | 2.500" (63.50mm) |
|
|
195G10FIXED IND 5MH 10A 40 MOHM CHASS |
4,431 | - |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 10 A | - | Unshielded | 40mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 3.600" W (95.25mm x 91.44mm) | 3.130" (79.50mm) |
|
|
195E20FIXED IND 2.5MH 20A 22 MOHM CHAS |
3,423 | - |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 20 A | - | Unshielded | 22mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 4.200" W (95.25mm x 106.68mm) | 3.130" (79.50mm) |
|
193VFIXED IND 150MH 3A 1OHM CHAS MNT |
2,432 | - |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 150 mH | ±15% | 3 A | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) |
|

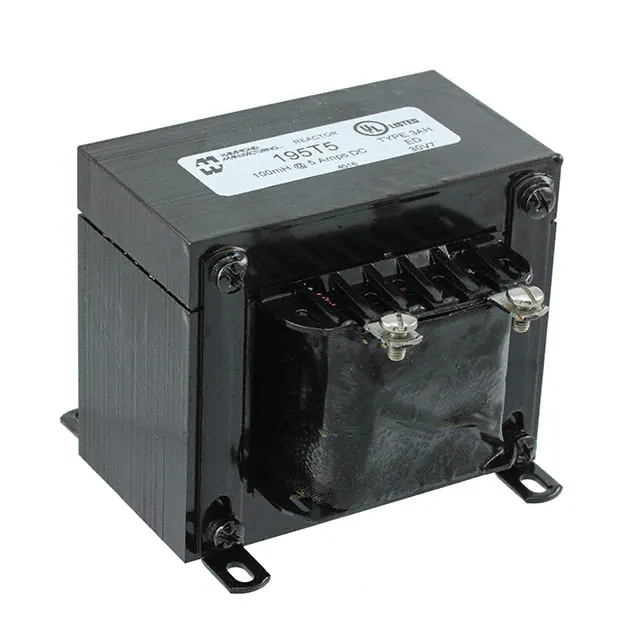

195T5FIXED IND 100MH 5A 640 MOHM CHAS |
1,556 | - |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 100 mH | ±15% | 5 A | - | Unshielded | 640mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 5.250" W (114.30mm x 133.35mm) | 3.750" (95.25mm) |
|
|
1532BFIXED IND 15UH 1A 170 MOHM TH |
2,966 | - |
|
Datasheet | 1532 | Axial | Bulk | Active | Wirewound | - | 15 µH | ±10% | 1 A | - | Unshielded | 170mOhm Max | 62 @ 2.5MHz | 33MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
1536TFIXED IND 100UH 2A 216 MOHM TH |
261 | - |
|
Datasheet | 1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 100 µH | ±20% | 2 A | - | Unshielded | 216mOhm | - | 4.1MHz | - | - | 1 kHz | - | Through Hole | - | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | - |
|

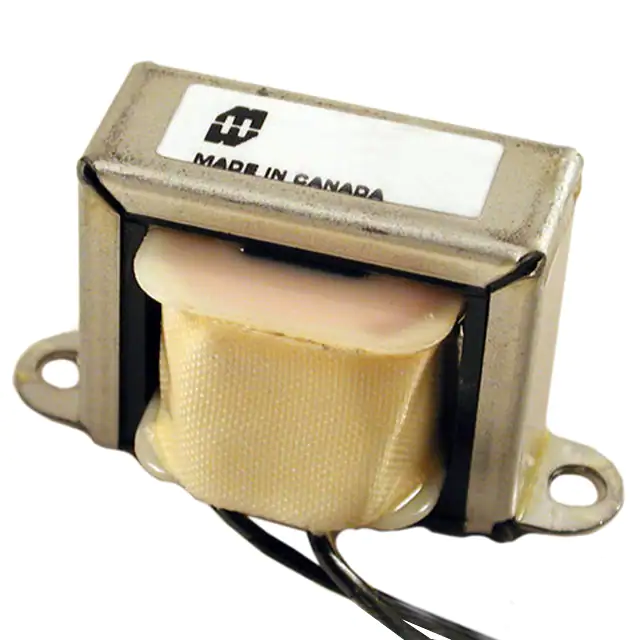

156BFIXED IND 1.5MH 5A 70 MOHM CHASS |
178 | - |
|
Datasheet | 156 | Nonstandard | Bulk | Active | - | - | 1.5 mH | ±15% | 5 A | - | Unshielded | 70mOhm | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
