Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
195R20FIXED IND 50MH 20A 130 MOHM CHAS |
3,165 | - |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 50 mH | ±15% | 20 A | - | Unshielded | 130mOhm | - | - | - | - | - | - | Chassis Mount | - | 9.000" L x 8.250" W (228.60mm x 209.55mm) | 7.500" (190.50mm) |
|
1532HFIXED IND 100UH 400MA 3 OHM TH |
4,691 | - |
|
Datasheet | 1532 | Axial | Bulk | Active | Wirewound | - | 100 µH | ±10% | 400 mA | - | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | - | 790 kHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|

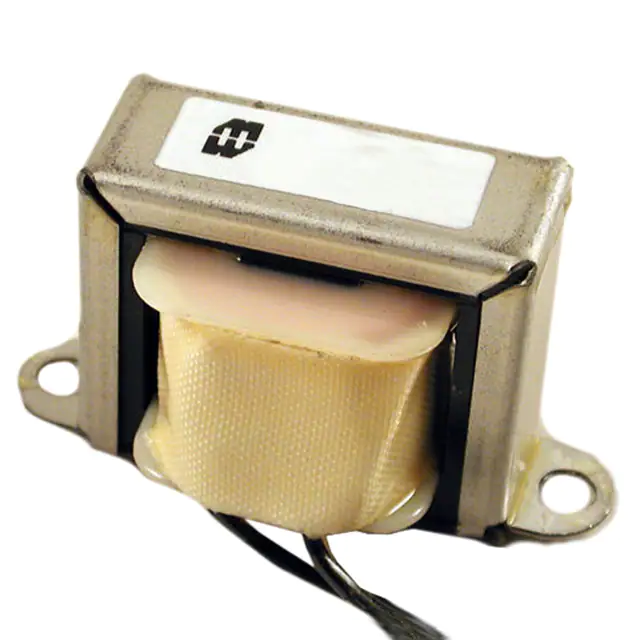

158SAFIXED IND 1H 240MA 41 OHM CHASS |
2,100 | - |
|
Datasheet | 158 | Nonstandard | Bulk | Active | - | - | 1 H | ±15% | 240 mA | - | Unshielded | 41Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|
159ZBFIXED IND 320MH 600MA 7.8 OHM |
4,687 | - |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 320 mH | ±15% | 600 mA | - | Unshielded | 7.8Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|

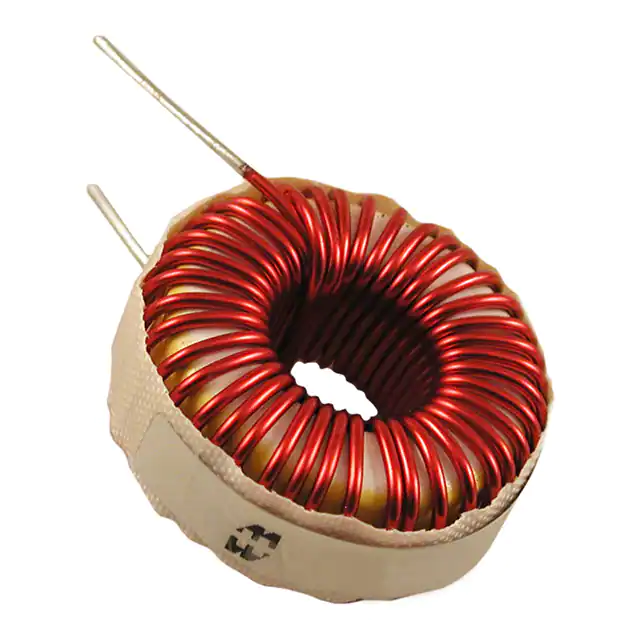

1540M22FIXED IND 900UH 3.75A 175MOHM TH |
3,261 | - |
|
Datasheet | 1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 900 µH | ±15% | 3.75 A | - | Unshielded | 175mOhm Max | - | - | - | - | - | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
|
|
154MFIXED IND 2H 100MA 175 OHM CHASS |
3,890 | - |
|
Datasheet | 154 | Nonstandard | Bulk | Active | - | - | 2 H | ±15% | 100 mA | - | Unshielded | 175Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) |
|
|
154EFIXED IND 20H 20MA 1.666K OHM |
4,982 | - |
|
Datasheet | 154 | Nonstandard | Bulk | Active | - | - | 20 H | ±15% | 20 mA | - | Unshielded | 1.666kOhm | - | - | - | - | - | - | Chassis Mount | - | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) |
|

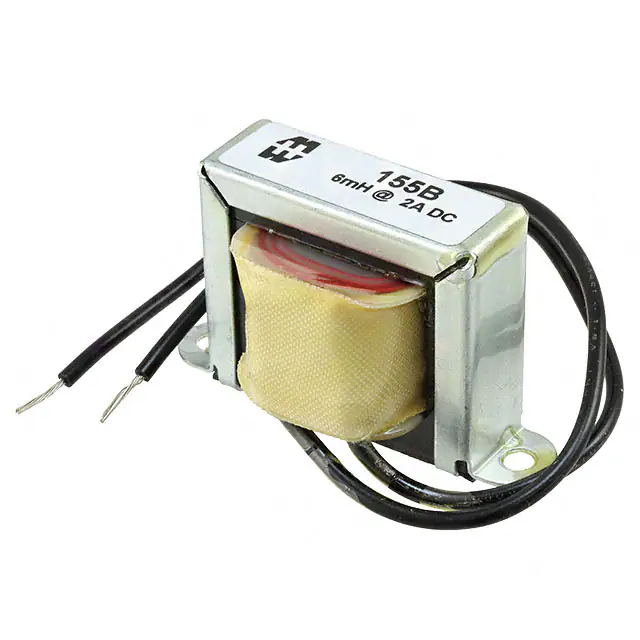

155BFIXED IND 6MH 2A 300 MOHM CHASS |
4,853 | - |
|
Datasheet | 155 | Nonstandard | Bulk | Active | - | - | 6 mH | ±15% | 2 A | - | Unshielded | 300mOhm | - | - | - | - | - | - | Chassis Mount | - | 2.380" L x 1.380" W (60.45mm x 35.05mm) | 1.380" (35.05mm) |
|
194AFIXED IND 4H 50MA 167 OHM CHASS |
1,868 | - |
|
Datasheet | 194 | Nonstandard | Box | Active | - | - | 4 H | ±15% | 50 mA | - | Unshielded | 167Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.380" L x 1.200" W (60.45mm x 30.48mm) | 1.375" (34.93mm) |
|
156RFIXED IND 1.5H 200MA 56 OHM CHAS |
2,955 | - |
|
Datasheet | 156 | Nonstandard | Bulk | Active | - | - | 1.5 H | ±15% | 200 mA | - | Unshielded | 56Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
