Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
197B15FIXED IND 500UH 15A 0.039OHM SMD |
3,986 | - |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 500 µH | ±15% | 15 A | - | Unshielded | 39mOhm | - | 812.3kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|

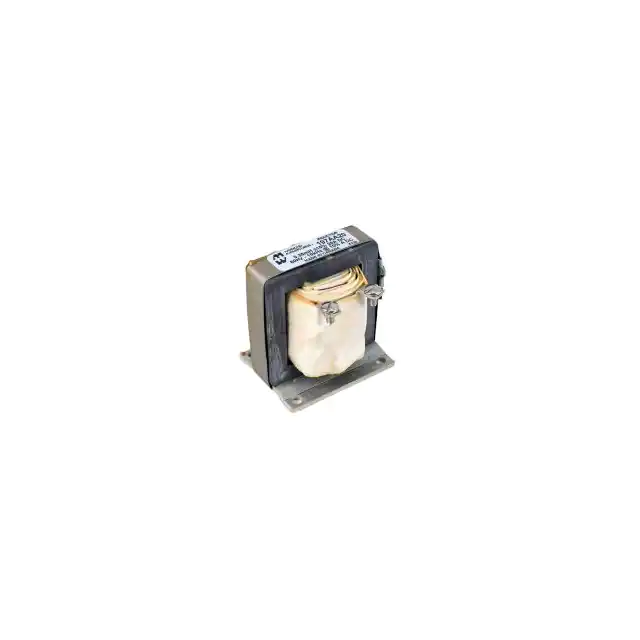

197AA20FIXED IND 250UH 20A 0.014OHM SMD |
4,170 | - |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 250 µH | ±15% | 20 A | - | Unshielded | 14mOhm | - | 1.19MHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.050" L x 2.500" W (77.47mm x 63.50mm) | 3.376" (85.75mm) |
|

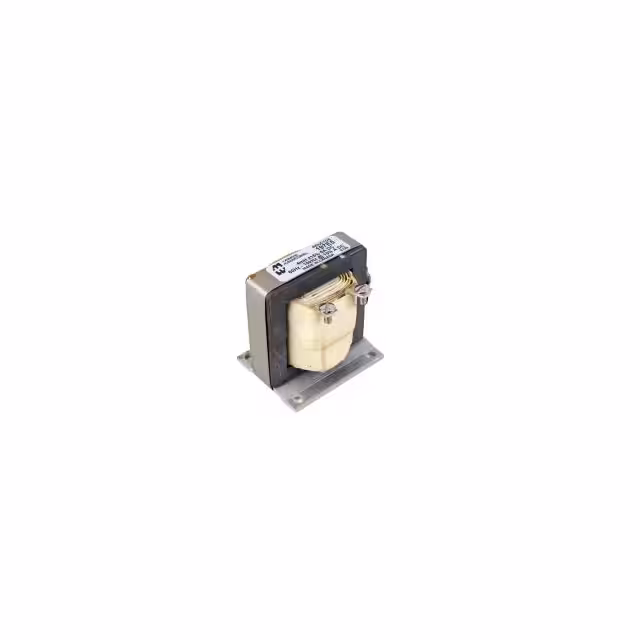

197E5FIXED IND 4MH 5A 0.232OHM SMD |
3,891 | - |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 4 mH | ±15% | 5 A | - | Unshielded | 232mOhm | - | 250.5kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|
193KFIXED IND 2.6H 300MA 21 OHM CHAS |
1,946 | - |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 2.6 H | ±15% | 300 mA | - | Unshielded | 21Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.125" (79.38mm) |
|
|
193GFIXED IND 10H 150MA 102 OHM CHAS |
4,782 | - |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 150 mA | - | Unshielded | 102Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 3.130" W (82.55mm x 79.50mm) | 3.810" (96.77mm) |
|
|
193NFIXED IND 3H 500MA 35 OHM CHASS |
1,057 | - |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 3 H | ±15% | 500 mA | - | Unshielded | 35Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|
|
193LFIXED IND 5H 300MA 57 OHM CHASS |
2,448 | - |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 5 H | ±15% | 300 mA | - | Unshielded | 57Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|
197E10FIXED IND 3.5MH 10A 0.096OHM SMD |
4,068 | - |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 3.5 mH | ±15% | 10 A | - | Unshielded | 96mOhm | - | 129.55kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|
197A25FIXED IND 480UH 25A 0.011OHM SMD |
3,995 | - |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 480 µH | ±15% | 25 A | - | Unshielded | 11mOhm | - | 504kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.950" (100.33mm) |
|
197C15FIXED IND 1.35MH 15A 0.029OHM SM |
2,775 | - |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1.35 mH | ±15% | 15 A | - | Unshielded | 29mOhm | - | 289.05kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
