Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM30-2R2K-RC2.2UH 10% AXIAL MOLDED INDUCTOR |
2,489 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 2.2 µH | ±10% | - | 485mA | Unshielded | 950mOhm Max | 33 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
AM30-R33M-RC.33UH 10% AXIAL MOLDED INDUCTOR |
1,686 | - |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | - | 1.58A | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
RHC50-15-5R0K-RC5UH 10% 15AMP RADIAL HI. CURR. |
3,966 | - |
|
Datasheet | - | Radial, Horizontal Cylinder | Box | Active | - | - | 5 µH | ±10% | 15 A | 20A | Unshielded | 8mOhm Max | - | 30MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial, Horizontal Cylinder | 0.725" Dia x 1.375" L (18.42mm x 34.93mm) | - |
|
SQAC2929-501NJ-RC500NH 5% SMD SQ. AIR CORE IND. |
1,771 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 500 nH | ±5% | 4.3 A | - | Unshielded | 16.5mOhm Max | 180 @ 50MHz | 500MHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.551" L x 0.295" W (14.00mm x 7.49mm) | 0.295" (7.49mm) |
|
SQAC1515-47NG-RC47NH 2% SQ. AIR CORE INDUCTOR |
3,958 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±2% | 4.9 A | - | Unshielded | 6.35mOhm Max | 230 @ 400MHz | 1.87GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.160" L x 0.140" W (4.06mm x 3.56mm) | 0.154" (3.91mm) |
|
|
SQAC2929-431NJ-RC430NH 5% SMD SQ. AIR CORE IND. |
1,476 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 430 nH | ±5% | 4.2 A | - | Unshielded | 15.5mOhm Max | 180 @ 50MHz | 550MHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.520" L x 0.295" W (13.21mm x 7.49mm) | 0.295" (7.49mm) |
|
|
RHC50-15-500K-RC50UH 10% 15AMP RADIAL HI.CURR. |
2,507 | - |
|
Datasheet | - | Radial, Horizontal Cylinder | Box | Active | - | - | 50 µH | ±10% | 15 A | 9A | Unshielded | 20mOhm Max | - | 4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial, Horizontal Cylinder | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - |
|
|
RHC50-3-270K-RC27UH 10% 3AMP RADIAL HI. CURR. |
3,107 | - |
|
Datasheet | - | Radial, Horizontal Cylinder | Box | Active | - | - | 27 µH | ±10% | 3 A | 15A | Unshielded | 35mOhm Max | - | 8MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial, Horizontal Cylinder | 0.811" Dia x 0.875" L (20.60mm x 22.23mm) | - |
|
|
SQAC1515-47NJ-RC47NH 5% SQ. AIR CORE INDUCTOR |
3,016 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±5% | 4.9 A | - | Unshielded | 6.35mOhm Max | 230 @ 400MHz | 1.87GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.160" L x 0.140" W (4.06mm x 3.56mm) | 0.154" (3.91mm) |
|

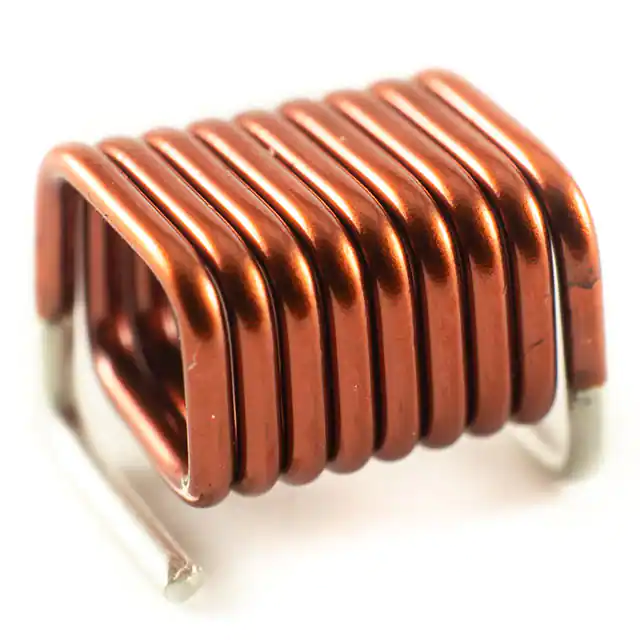

SQAC2222-161NJ-RC160NH 5% SQ. AIR CORE INDUCTOR |
4,761 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 160 nH | ±5% | 5.7 A | - | Unshielded | 8.25mOhm Max | 140 @ 50MHz | 1GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.290" L x 0.220" W (7.37mm x 5.59mm) | 0.234" (5.95mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
