Fixed Inductors

Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
PCXA503-1R0M 1.0uH 20% Shielded High Current Allied Components International	4,776	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	1 µH	±20%	12.2 A	14.3A	Shielded	7.6mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.217" L x 0.209" W (5.50mm x 5.30mm)	0.122" (3.10mm)

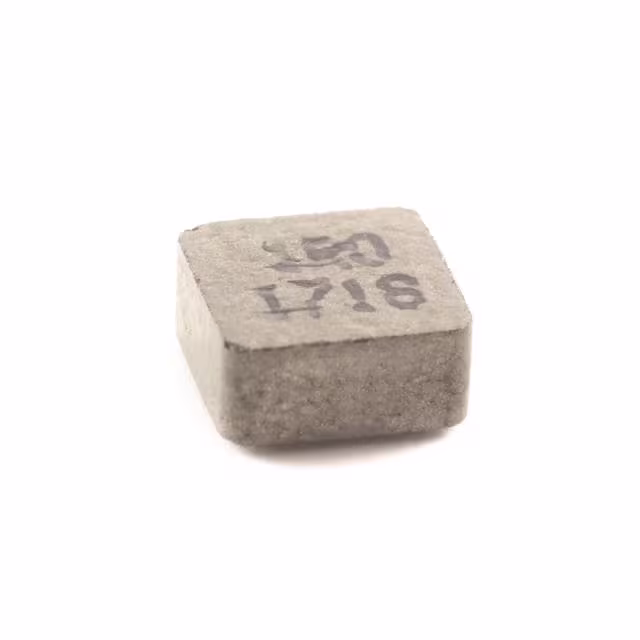

PCXA402-R72M .72uH 20% Shielded High Current Allied Components International	4,337	-	RFQ	Datasheet	*	Nonstandard	Tape & Reel (TR)	Active	-	-	720 nH	±20%	10.5 A	10.6A	Shielded	11.6mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.161" L x 0.161" W (4.10mm x 4.10mm)	0.083" (2.10mm)
PCXA402-1R5M 1.5uH 20% Shielded High Current Allied Components International	2,358	-	RFQ	Datasheet	*	Nonstandard	Tape & Reel (TR)	Active	-	-	1.5 µH	±20%	7.6 A	7.4A	Shielded	23.5mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.161" L x 0.161" W (4.10mm x 4.10mm)	0.083" (2.10mm)

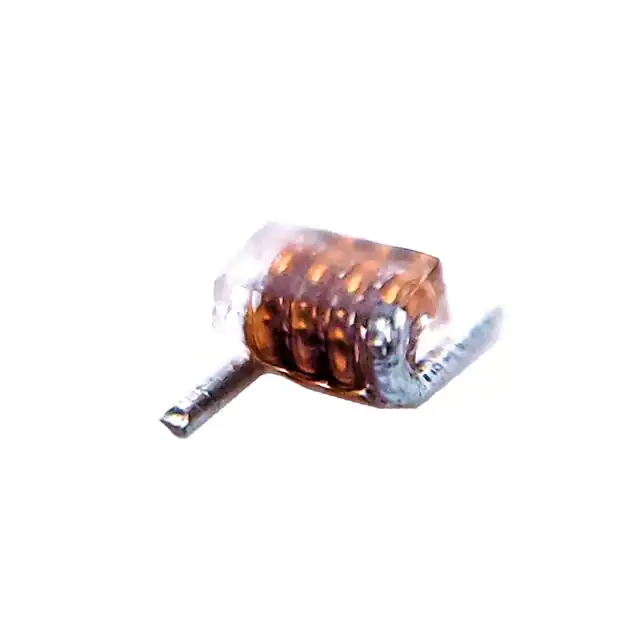

SMAC10-2K-RC 1.65nH 10% SMD AirCore Inductor Allied Components International	1,778	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	1.65 nH	±10%	1.6 A	-	Shielded	4mOhm Max	100 @ 800MHz	10.2GHz	-	-40°C ~ 125°C	800 MHz	-	Surface Mount	-	0.087" L x 0.056" W (2.20mm x 1.42mm)	0.060" (1.52mm)
SMAC10-3J-RC 2.55nH 5% SMD Air Core Inductor Allied Components International	4,818	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	2.55 nH	±5%	1.6 A	-	Shielded	5mOhm Max	100 @ 800MHz	8.2GHz	-	-40°C ~ 125°C	800 MHz	-	Surface Mount	-	0.087" L x 0.056" W (2.20mm x 1.42mm)	0.060" (1.52mm)
SMAC10-4G-RC 3.85nH 2% SMD Air Core Inductor Allied Components International	1,755	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	3.85 nH	±2%	1.6 A	-	Shielded	6mOhm Max	100 @ 800MHz	7.5GHz	-	-40°C ~ 125°C	800 MHz	-	Surface Mount	-	0.087" L x 0.056" W (2.20mm x 1.42mm)	0.060" (1.52mm)
SMAC15-9J-RC 9.85nH 5% SMD Air Core Inductor Allied Components International	1,324	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	9.85 nH	±5%	1.6 A	-	Shielded	13mOhm Max	100 @ 800MHz	5.2GHz	-	-40°C ~ 125°C	800 MHz	-	Surface Mount	-	0.159" L x 0.056" W (4.04mm x 1.42mm)	0.060" (1.52mm)
SMAC60-R10L-RC 100NH 15% SMD AIR COIL INDUCTOR Allied Components International	4,355	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	100 nH	±15%	-	-	Unshielded	15mOhm Max	-	-	-	-40°C ~ 125°C	200 MHz	-	Surface Mount	-	0.465" L x 0.190" W (11.80mm x 4.83mm)	0.140" (3.55mm)
SMAC25-33J-RC 33NH 5% SMD AIR CORE INDUCTOR Allied Components International	4,803	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	33 nH	±5%	3 A	-	Unshielded	4.8mOhm Max	100 @ 150MHz	2.5GHz	-	-40°C ~ 125°C	150 MHz	-	Surface Mount	-	0.190" L x 0.150" W (4.83mm x 3.81mm)	0.165" (4.20mm)
SMAC25-27G-RC 27NH 2% SMD AIR CORE INDUCTOR Allied Components International	1,950	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	27 nH	±2%	3.5 A	-	Unshielded	4mOhm Max	100 @ 150MHz	2.7GHz	-	-40°C ~ 125°C	150 MHz	-	Surface Mount	-	0.190" L x 0.150" W (4.83mm x 3.81mm)	0.165" (4.20mm)
