Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS20-6R8K-RC6.8UH 10% AXIAL SHIELDED IND. |
1,801 | - |
|
Datasheet | AS20 | Axial | Bag | Active | - | - | 6.8 µH | ±10% | - | 320mA | Shielded | 1.73Ohm Max | 46 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.100" Dia x 0.250" L (2.54mm x 6.35mm) | - |
|
|
AS20-2R2K-RC2.2UH 10% AXIAL SHIELDED IND. |
1,369 | - |
|
Datasheet | AS20 | Axial | Bag | Active | - | - | 2.2 µH | ±10% | - | 664mA | Shielded | 410mOhm Max | 28 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.100" Dia x 0.250" L (2.54mm x 6.35mm) | - |
|

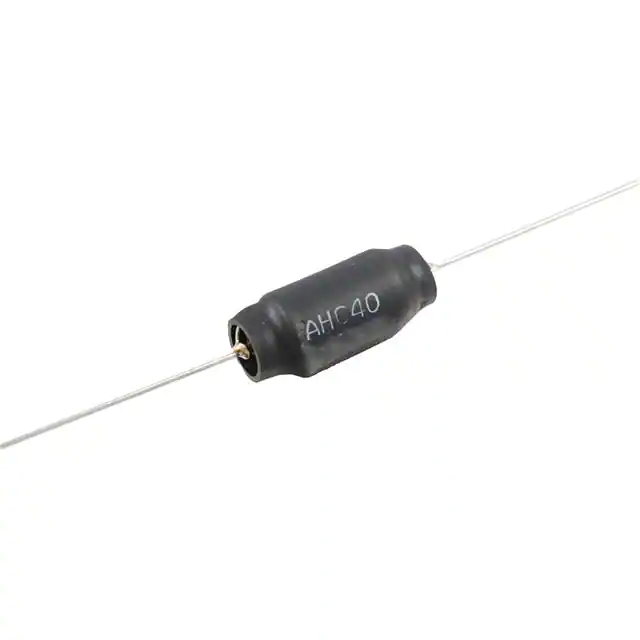

AHC40-3-101K-RC100UH 10% AXIAL HIGH CURRENT |
4,441 | - |
|
Datasheet | - | Axial | Tray | Active | - | - | 100 µH | ±10% | 3 A | - | Unshielded | 75mOhm Max | - | 2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 1.170" L (12.70mm x 29.72mm) | - |
|
|
AHC40-3-500K-RC50UH 10% AXIAL HIGH CURRENT |
1,099 | - |
|
Datasheet | - | Axial | Tray | Active | - | - | 50 µH | ±10% | 3 A | - | Unshielded | 65mOhm Max | - | 4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 0.920" L (12.70mm x 23.37mm) | - |
|
|
AHC40-5-500K-RC50UH 10% 5 AMP AXIAL HI CURRENT |
3,173 | - |
|
Datasheet | - | Axial | Tray | Active | - | - | 50 µH | ±10% | 5 A | - | Unshielded | 50mOhm Max | - | 2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.700" Dia x 1.050" L (17.78mm x 26.67mm) | - |
|
|
AHC40-1-501K-RC50UH 10% 1 AMP AXIAL HI CURRENT |
3,568 | - |
|
Datasheet | - | Axial | Tray | Active | - | - | 500 µH | ±10% | 1 A | - | Unshielded | 500mOhm Max | - | 800kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.050" L (13.97mm x 26.67mm) | - |
|

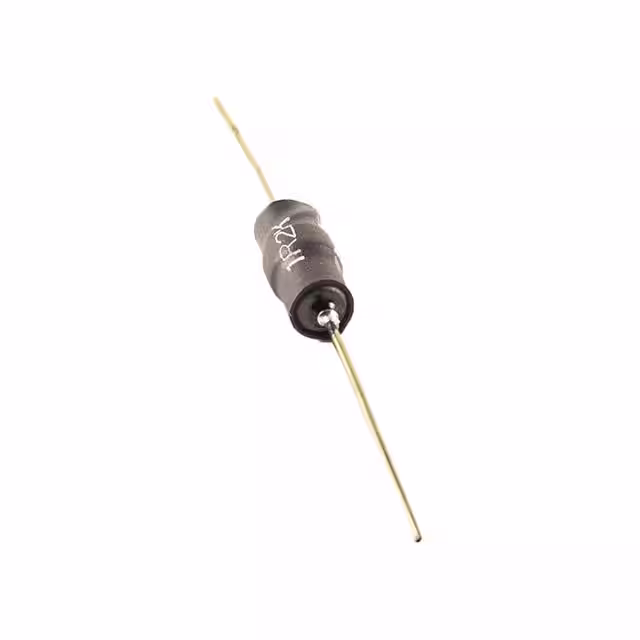

AHC30-1R2K-RC1.2UH 10% AXIAL HICURRENT CHOKE |
3,321 | - |
|
Datasheet | - | Axial | Bag | Active | - | - | 1.2 µH | ±10% | 1.58 A | - | Unshielded | 63mOhm Max | 55 @ 7.96MHz | 150MHz | - | - | 7.96 MHz | - | Through Hole | Axial | 0.180" Dia x 0.500" L (4.57mm x 12.70mm) | - |
|
|
AHC30-560K-RC56UH 10% AXIAL HI CURRENT CHOKE |
4,901 | - |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | - | - | 56 µH | ±10% | 300 mA | - | Unshielded | 1.95Ohm Max | 55 @ 2.52MHz | 20MHz | - | - | 2.52 MHz | - | Through Hole | Axial | 0.180" Dia x 0.500" L (4.57mm x 12.70mm) | - |
|
APC20-820K-RC82UH 10% AXIAL POWER CHOKE |
4,037 | - |
|
Datasheet | APC20 | Axial | Bulk | Active | - | - | 82 µH | ±10% | 804 mA | 1.4A | Unshielded | 152mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-220K-RC22UH 10% AXIAL POWER CHOKE |
3,787 | - |
|
Datasheet | APC20 | Axial | Bulk | Active | - | - | 22 µH | ±10% | 1.28 A | 2.7A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
