Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

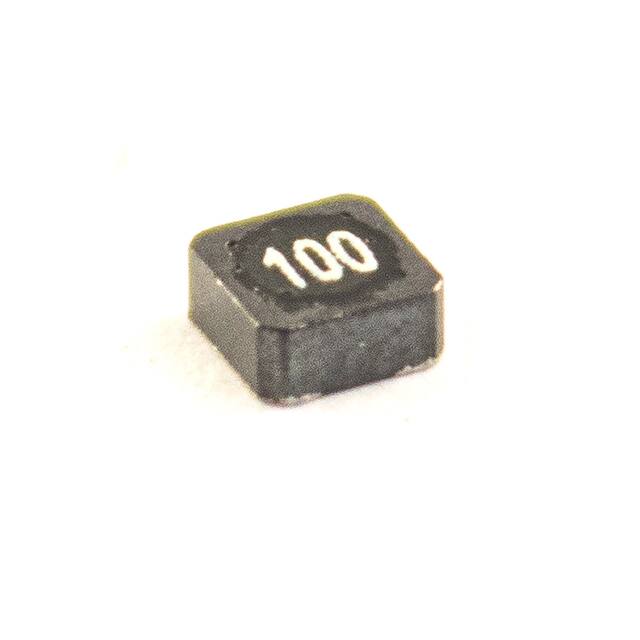

PCS3X15-100M10UH, SHIELDED POWER INDUCTOR |
4,930 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 750 mA | 650mA | Shielded | 440mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
VTC-4486470UH,VERTIVAL TOROIDAL CHOKE |
1,387 | - |
|
Datasheet | - | Vertical, 2 PC Pin | Tray | Active | Toroidal | - | 470 µH | ±20% | 1 A | - | Unshielded | 225mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Radial | 0.748" Dia x 0.374" L (19.00mm x 9.50mm) | - |
.jpg "PCHC420Z2-1R0M-RC")
|

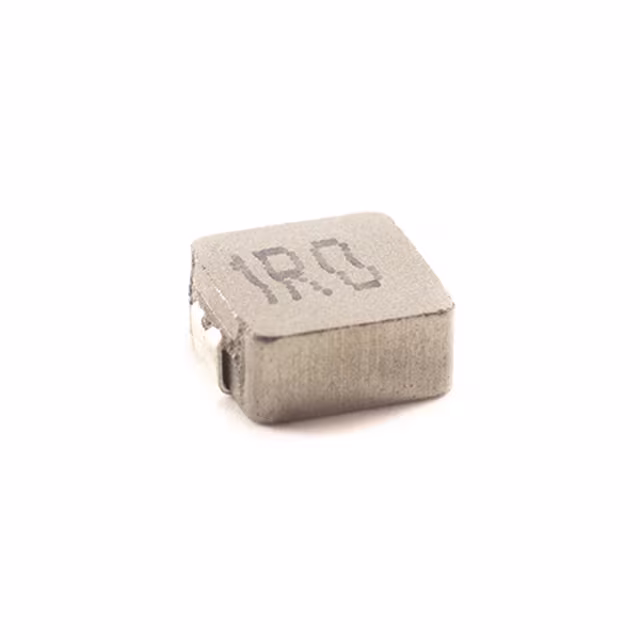

PCHC420Z2-1R0M-RC1.00UH, SMD HIGH CURRENT SHIELDE |
3,147 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 4.4 A | 7.5A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
PCHC1265HP-5R6M5.6H 20% POWER CHOKE HIGH CURREN |
4,197 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 12.5 A | 23A | Shielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
PCHC1265HP-101M100H 20% POWER CHOKE HIGH CURREN |
1,460 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 4.2 A | 5.5A | Shielded | 165mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
FWECY1390-220M22H 20% FLAT WIRE SMD POWER IN |
3,348 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 7.7 A | 6.8A | Shielded | 23.1mOhm Max | - | 20.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.354" (9.00mm) |
|
|
FWECY1390-330M33H 20% FLAT WIRE SMD POWER IN |
2,915 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 7.7 A | 4.4A | Shielded | 23.1mOhm Max | - | 15.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.354" (9.00mm) |
|
|
FWECY1390-470M47H 20% FLAT WIRE SMD POWER IN |
3,533 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 7.7 A | 3A | Shielded | 23.1mOhm Max | - | 13.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.354" (9.00mm) |
|
PCS104-100M-RC10H 20% POWER CHIP INDUCTOR |
3,918 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.4 A | - | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|

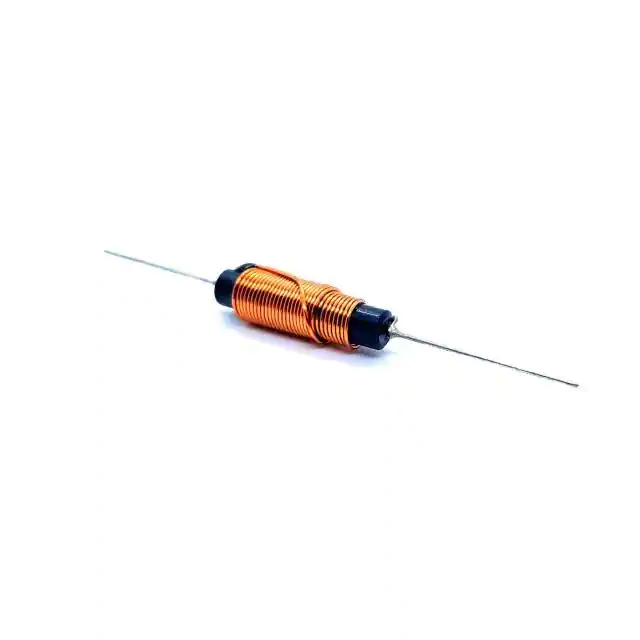

AHC50-101M-RC100uH, 20%, Axial Hash Choke |
3,994 | - |
|
Datasheet | - | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.394" Dia x 1.380" L (10.00mm x 35.05mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
