Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

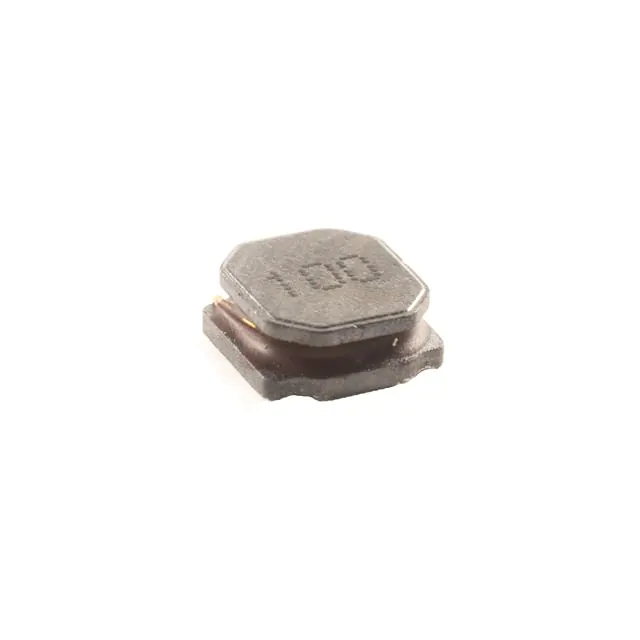

PCSV48-330M-RC33H 20% SHIELDED POWER CHIP IN |
4,798 | - |
|
Datasheet | PCSV48 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 700 mA | 800mA | Shielded | 530mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

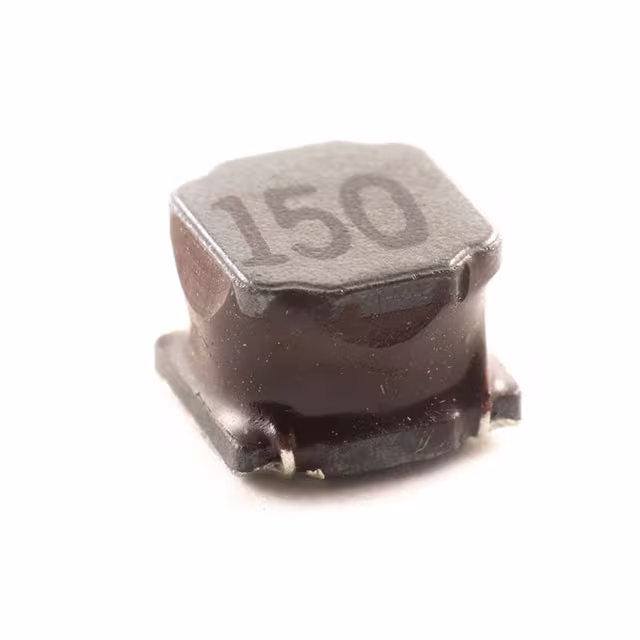

PCSV65-101M-RC100H 20% SHIELDED POWER CHIP IND |
1,726 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 800 mA | 1.3A | Shielded | 500mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
PCSV65-100M-RC10H 20% SMD SHIELDED POWER CHIP |
1,239 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.7 A | 4.5A | Shielded | 57mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

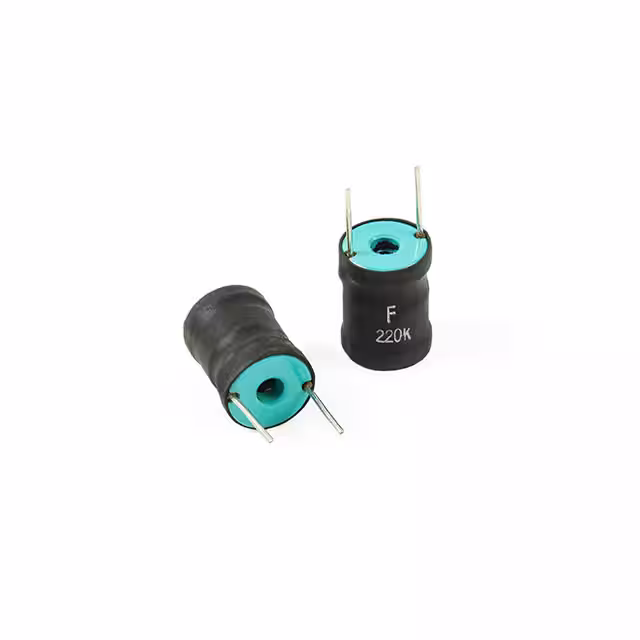

RDC10-331K-RC330H 10% RADIAL DRUM CORE IND |
3,554 | - |
|
Datasheet | RDC10 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 1.3 A | 3.8A | Unshielded | 336mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
PCSE15Q8-2R2M-RC2.2UH 20% SMD POWER INDUCTOR |
1,505 | - |
|
Datasheet | - | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.2 A | 2.5A | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

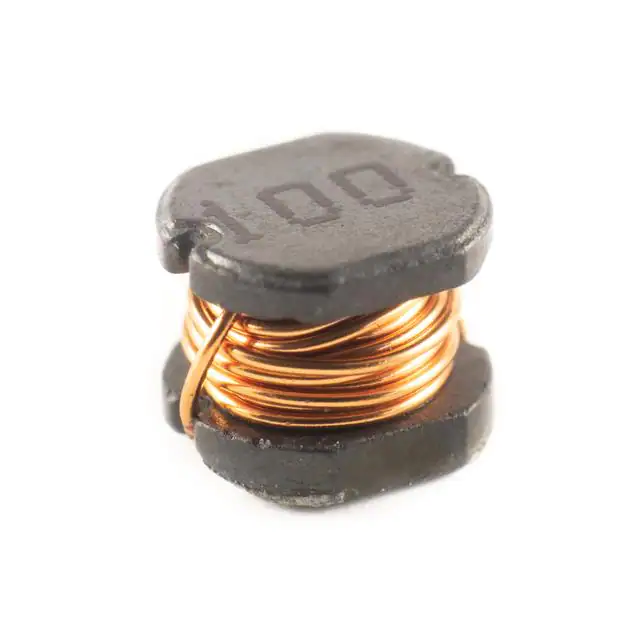

PC0504-470K-RC47UH 10% POWER CHIP INDUCTOR |
3,981 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
PC0504-220K-RC22UH 10% POWER CHIP INDUCTOR |
3,299 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 1.11 A | - | Unshielded | 180mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
PC0504-331M-RC330UH 20% POWER CHIP INDUCTOR |
3,553 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 280 mA | - | Unshielded | 1.7Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|

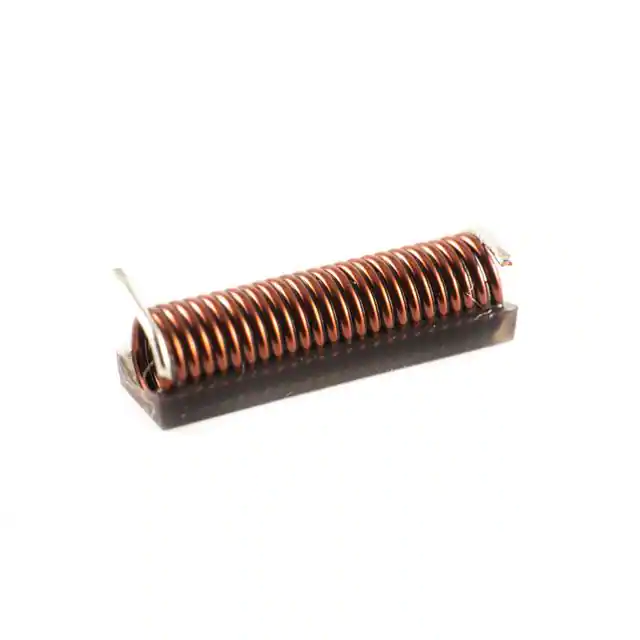

SMAC60-R30L-RC300NH 15% SMD AIR COIL INDUCTOR |
2,870 | - |
|
Datasheet | - | Nonstandard | Tray | Active | Wirewound | Air | 300 nH | ±15% | 3.5 A | - | Unshielded | 49mOhm Max | 1 @ 200MHz | - | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.465" L x 0.190" W (11.80mm x 4.83mm) | 0.140" (3.55mm) |
|

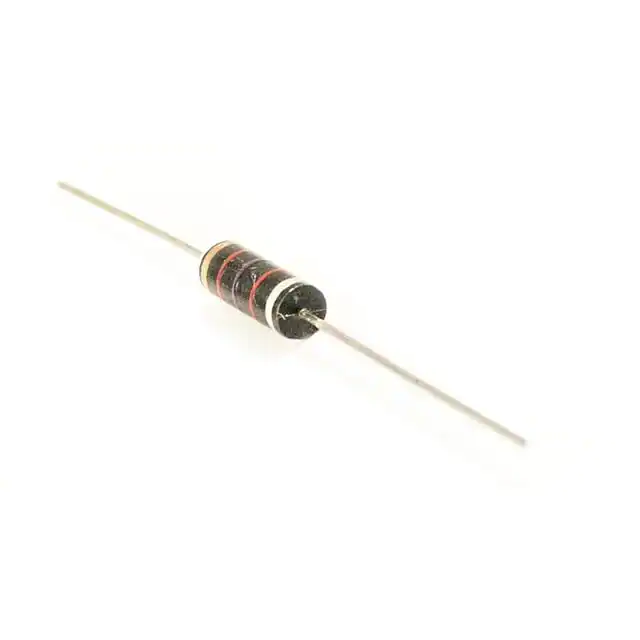

AM20-R10K-RC.10H 10% AXIAL MOLDED INDUCTOR |
3,157 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 100 nH | ±10% | - | 1.35A | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
