Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM20-R039K-RC.039H 10% AXIAL MOLDED INDUCTR |
1,034 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 39 nH | ±10% | - | 1.9A | Unshielded | 40mOhm Max | 40 @ 25MHz | 825MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
AM20-R027K-RC.027H 10% AXIAL MOLDED INDUCTR |
2,702 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 27 nH | ±10% | - | 2.2A | Unshielded | 30mOhm Max | 40 @ 25MHz | 875MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
AM20-R068K-RC.068H 10% AXIAL MOLDED INDUCTR |
1,406 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 68 nH | ±10% | - | 1.5A | Unshielded | 60mOhm Max | 40 @ 25MHz | 750MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
AM20-R047K-RC.047H 10% AXIAL MOLDED INDUCTR |
1,926 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 47 nH | ±10% | - | 1.8A | Unshielded | 45mOhm Max | 40 @ 25MHz | 800MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
AM20-R022M-RC.022H 20% AXIAL MOLDED INDUCTR |
4,413 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 22 nH | ±20% | - | 2.4A | Unshielded | 25mOhm Max | 50 @ 50MHz | 900MHz | - | -55°C ~ 125°C | 50 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
AM20-R082K-RC.082H 10% AXIAL MOLDED INDUCTR |
3,286 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 82 nH | ±10% | - | 1.4A | Unshielded | 70mOhm Max | 40 @ 25MHz | 725MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
AM20-R056K-RC.056H 10% AXIAL MOLDED INDUCTR |
2,194 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 56 nH | ±10% | - | 1.7A | Unshielded | 50mOhm Max | 40 @ 25MHz | 775MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
AM20-R033K-RC.033H 10% AXIAL MOLDED INDUCTR |
4,112 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 33 nH | ±10% | - | 2A | Unshielded | 35mOhm Max | 40 @ 25MHz | 850MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
AM20-R68K-RC.68H 10% AXIAL MOLDED INDUCTOR |
4,976 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 680 nH | ±10% | - | 495mA | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

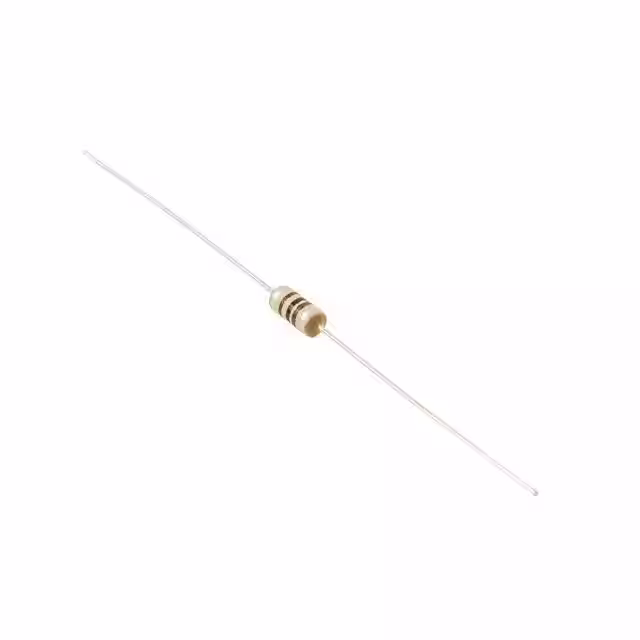

AS20-1R5K-RC1.5UH 10% AXIAL SHIELDED IND. |
3,546 | - |
|
Datasheet | AS20 | Axial | Bag | Active | - | - | 1.5 µH | ±10% | - | 825mA | Shielded | 260mOhm Max | 29 @ 7.9MHz | 136MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.100" Dia x 0.250" L (2.54mm x 6.35mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
