Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

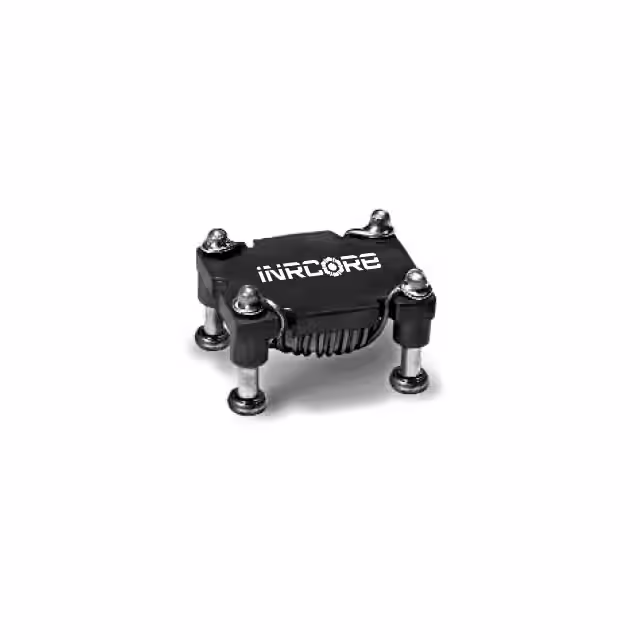

PL8171TFIXED IND 8.4UH 10.4A 8.3MOHM SM |
2,682 | - |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 8.4 µH | - | 10.4 A | - | Unshielded | 8.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|

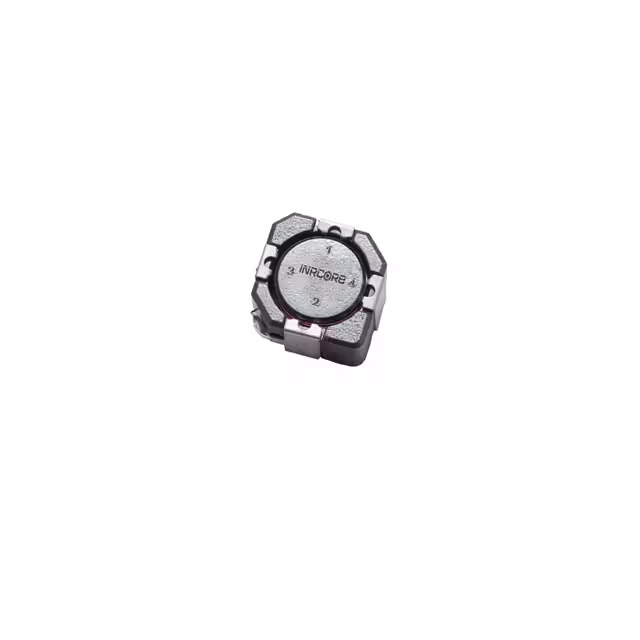

PL9508TFIXED IND 12UH 1.2A 72 MOHM SMD |
3,713 | - |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 1.2 A | 1.2A | Shielded | 72mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
PL9308NLTFIXED IND 10UH 3.4A 33.2MOHM SMD |
1,981 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.4 A | 3.8A | Shielded | 33.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9309NLTFIXED IND 12UH 3A 45.2 MOHM SMD |
3,446 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 3 A | 3.4A | Shielded | 45.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9312NLTFIXED IND 27UH 2.1A 89 MOHM SMD |
2,289 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 2.1 A | 2.3A | Shielded | 89mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9313NLTFIXED IND 47UH 1.65A 142MOHM SMD |
4,106 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.65 A | 2.1A | Shielded | 142mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9314NLTFIXED IND 68UH 1.32A 212MOHM SMD |
3,939 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.32 A | 1.5A | Shielded | 212mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9315NLTFIXED IND 100UH 1.1A 328MOHM SMD |
4,926 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.1 A | 1.35A | Shielded | 328mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9316NLTFIXED IND 150UH 880MA 500MOHM SM |
3,810 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 880 mA | 1.15A | Shielded | 500mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9318NLTFIXED IND 330UH 600MA 1.133 OHM |
3,272 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 600 mA | 700mA | Shielded | 1.133Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
