Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

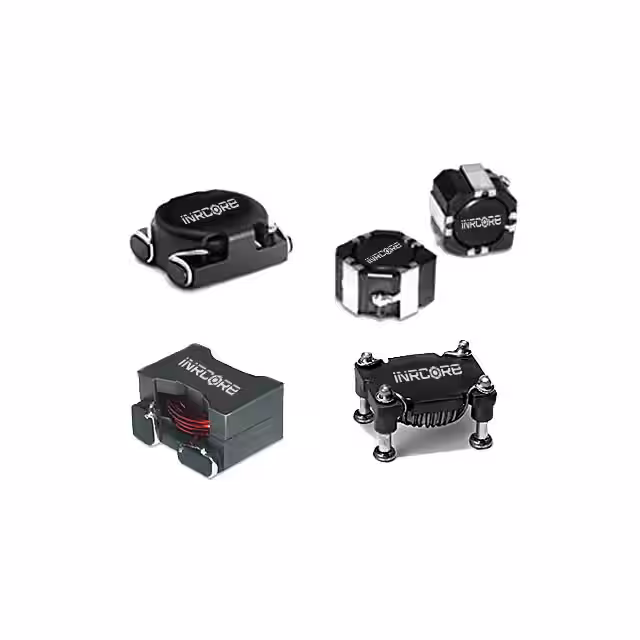

PL8181FIXED IND 17.6UH 10.9A 12.3 MOHM |
3,932 | - |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 17.6 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.275" L x 1.065" W (32.39mm x 27.05mm) | 0.510" (12.95mm) |
|
PL8181NLFIXED IND 17.6UH 10.9A 12.3 MOHM |
4,844 | - |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 17.6 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.275" L x 1.065" W (32.39mm x 27.05mm) | 0.510" (12.95mm) |
|
|
PL9226NLTFIXED IND 330UH 660MA 955MOHM SM |
4,177 | - |
|
Datasheet | PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 660 mA | 710mA | Shielded | 955mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9227NLTFIXED IND 390UH 580MA 1.087 OHM |
2,910 | - |
|
Datasheet | PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 390 µH | ±20% | 580 mA | 660mA | Shielded | 1.087Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9311NLTFIXED IND 22UH 2.3A 77 MOHM SMD |
2,634 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.3 A | 2.8A | Shielded | 77mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL8502NLTFIXED IND 25UH 2.4A 74 MOHM SMD |
1,403 | - |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 2.4 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8705NLTFIXED IND 18.5UH 5.2A 23.24 MOHM |
3,089 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 18.5 µH | ±20% | 5.2 A | - | Unshielded | 23.24mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL9219NLTFIXED IND 82UH 1.36A 232MOHM SMD |
3,689 | - |
|
Datasheet | PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 1.36 A | 1.4A | Shielded | 232mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9220NLTFIXED IND 100UH 1.29A 270MOHM SM |
3,868 | - |
|
Datasheet | PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.29 A | 1.3A | Shielded | 270mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9203NLTFIXED IND 2.7UH 6.6A 10 MOHM SMD |
3,980 | - |
|
Datasheet | PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 6.6 A | 7.3A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
