Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9221NLTFIXED IND 120UH 1.07A 316MOHM SM |
3,194 | - |
|
Datasheet | PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 1.07 A | 1.2A | Shielded | 316mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9225NLTFIXED IND 270UH 780MA 775MOHM SM |
2,985 | - |
|
Datasheet | PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 780 mA | 790mA | Shielded | 775mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9311TFIXED IND 22UH 2.3A 77 MOHM SMD |
2,691 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.3 A | 2.8A | Shielded | 77mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|

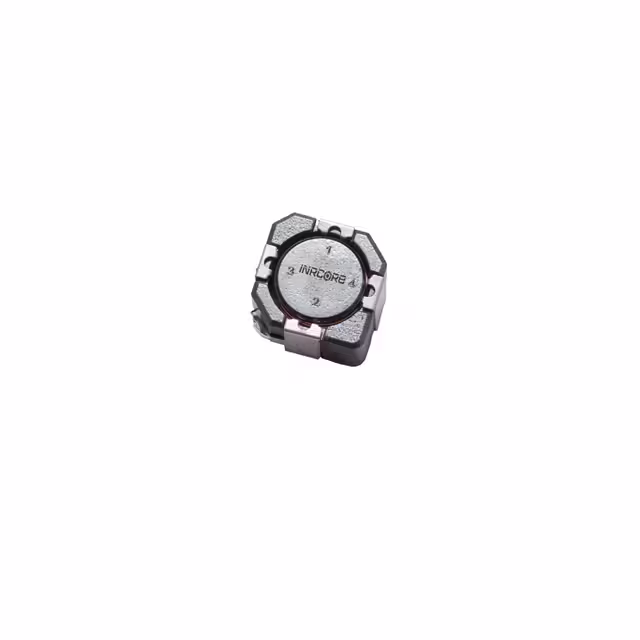

PL9125TFIXED IND 270UH 910MA 460MOHM SM |
1,068 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 910 mA | 910mA | Shielded | 460mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL8600FIXED IND 2.2UH 8.3A 8 MOHM SMD |
1,955 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 2.2 µH | ±10% | 8.3 A | - | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8600NLFIXED IND 2.2UH 8.3A 8 MOHM SMD |
2,148 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 2.2 µH | ±10% | 8.3 A | - | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|

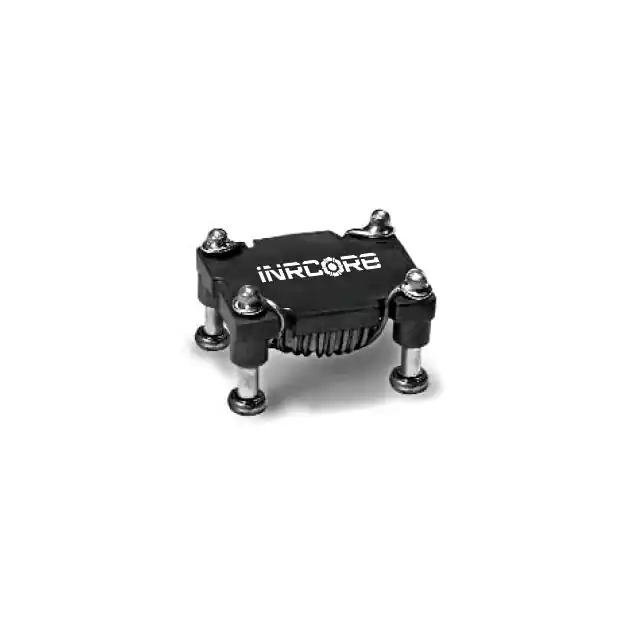

PL8601FIXED IND 2.6UH 7.2A 10.9MOHM SM |
3,875 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 2.6 µH | ±10% | 7.2 A | - | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8601NLFIXED IND 2.6UH 7.2A 10.9MOHM SM |
3,931 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 2.6 µH | ±10% | 7.2 A | - | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8602FIXED IND 5.5UH 5.2A 19 MOHM SMD |
3,033 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 5.5 µH | ±10% | 5.2 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8602NLFIXED IND 5.5UH 5.2A 19 MOHM SMD |
2,372 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 5.5 µH | ±10% | 5.2 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
