Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

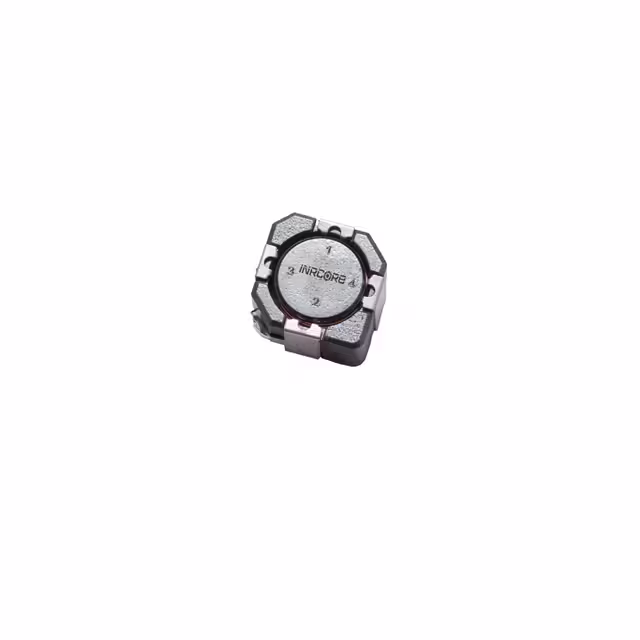

PL9301TFIXED IND 680NH 7.6A 5.5MOHM SMD |
2,455 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 nH | ±25% | 7.6 A | 10A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL9302TFIXED IND 1.3UH 7.1A 7.3MOHM SMD |
1,669 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.3 µH | ±25% | 7.1 A | 8A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL9303TFIXED IND 2.2UH 5.8A 10.9MOHM SM |
3,980 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±25% | 5.8 A | 6.15A | Shielded | 10.9mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL9304TFIXED IND 3.3UH 5.2A 13.3MOHM SM |
1,893 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±25% | 5.2 A | 5.8A | Shielded | 13.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL9305TFIXED IND 4.7UH 4.7A 19.6MOHM SM |
4,525 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±25% | 4.7 A | 5.4A | Shielded | 19.6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL9306TFIXED IND 6UH 3.7A 27 MOHM SMD |
3,948 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 6 µH | ±25% | 3.7 A | 4.5A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL9310TFIXED IND 15UH 2.8A 49.4MOHM SMD |
1,163 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 2.8 A | 3.1A | Shielded | 49.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL8401NLFIXED IND 39.5UH 2.7A 90.5 MOHM |
4,972 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 39.5 µH | - | 2.7 A | - | Unshielded | 90.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|

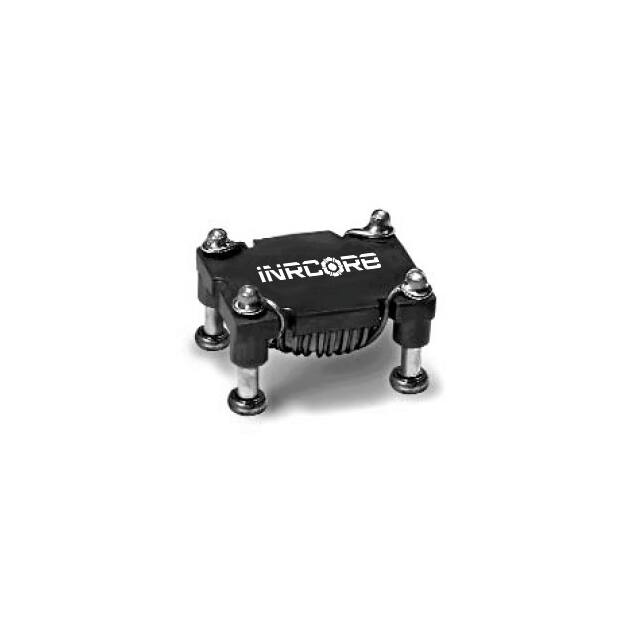

PL8402FIXED IND 6.575UH 6.4A 23MOHM SM |
4,373 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 6.575 µH | - | 6.4 A | - | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
|
PL8402NLFIXED IND 6.575UH 6.4A 23MOHM SM |
1,948 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 6.575 µH | - | 6.4 A | - | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
