Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9122NLTFIXED IND 150UH 1.2A 280MOHM SMD |
4,755 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.2 A | 1.2A | Shielded | 280mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9123NLTFIXED IND 180UH 1.1A 310MOHM SMD |
2,822 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 1.1 A | 1.1A | Shielded | 310mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9128NLTFIXED IND 470UH 680MA 850MOHM SM |
2,843 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 680 mA | 680mA | Shielded | 850mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9129NLTFIXED IND 560UH 630MA 1.06OHM SM |
4,751 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 630 mA | 630mA | Shielded | 1.06Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9130NLTFIXED IND 680UH 570MA 1.2OHM SMD |
2,225 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 570 mA | 570mA | Shielded | 1.2Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
PL9131NLTFIXED IND 820UH 520MA 1.55OHM SM |
3,873 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 520 mA | 520mA | Shielded | 1.55Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|

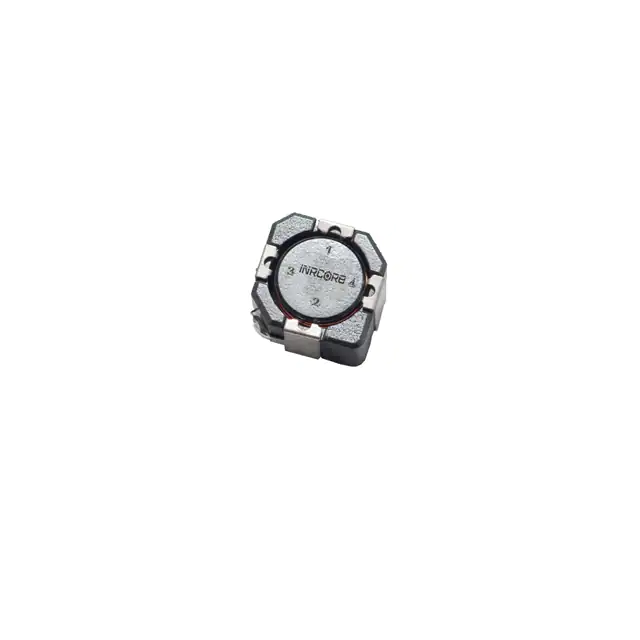

PL9309TFIXED IND 12UH 3A 45.2 MOHM SMD |
3,081 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 3 A | 3.4A | Shielded | 45.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|

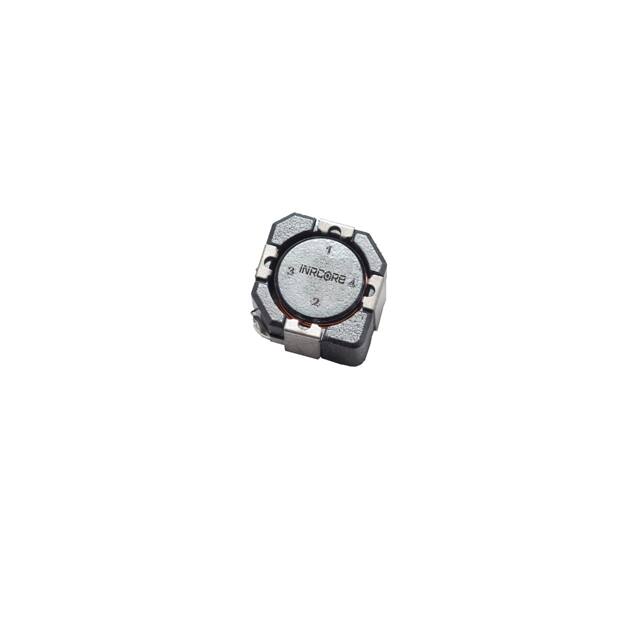

PL9313TFIXED IND 47UH 1.65A 142MOHM SMD |
1,969 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.65 A | 2.1A | Shielded | 142mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|

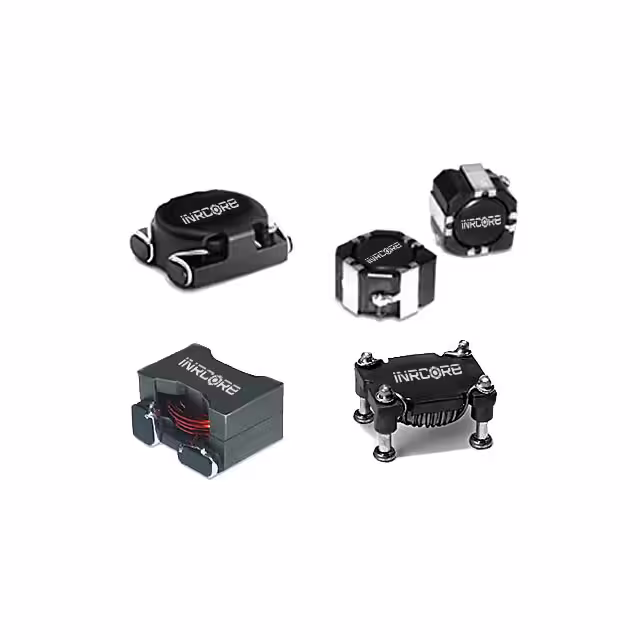

PL8124FIXED IND 292UH 900MA 560MOHM SM |
3,603 | - |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 292 µH | - | 900 mA | - | Unshielded | 560mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL9317NLTFIXED IND 220UH 730MA 739MOHM SM |
3,333 | - |
|
Datasheet | PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 730 mA | 920mA | Shielded | 739mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
