Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L06031R5AHLTRFIXED IND 1.5NH 1A 60 MOHM SMD |
4,098 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 1.5 nH | ±0.05nH | 1 A | - | Unshielded | 60mOhm Max | 26 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06031R8AHLTRFIXED IND 1.8NH 1A 70 MOHM SMD |
1,770 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 1.8 nH | ±0.05nH | 1 A | - | Unshielded | 70mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06032R2AHLTRFIXED IND 2.2NH 1A 80 MOHM SMD |
3,557 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 2.2 nH | ±0.05nH | 1 A | - | Unshielded | 80mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06032R7AHLTRFIXED IND 2.7NH 750MA 80MOHM SMD |
3,475 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 2.7 nH | ±0.05nH | 750 mA | - | Unshielded | 80mOhm Max | 21 @ 450MHz | 9GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|

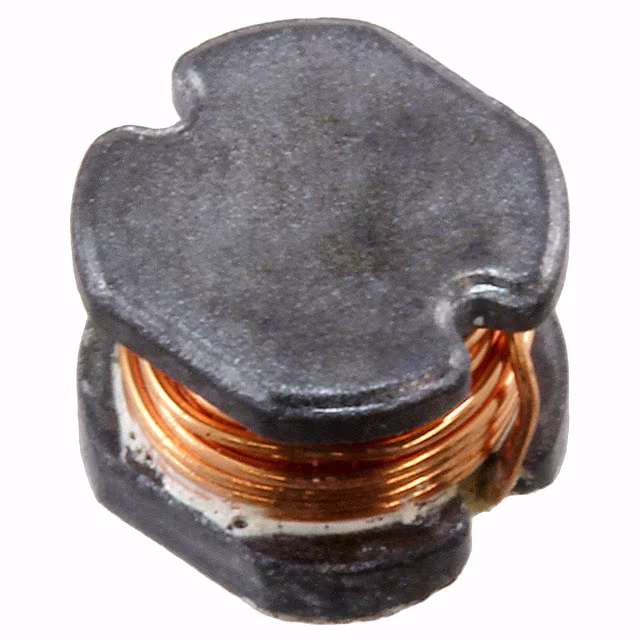

LMXN0605M330DTASFIXED IND 33UH 880MA 230MOHM SMD |
1,386 | - |
|
Datasheet | LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
LMXN0605M470DTASFIXED IND 47UH 720MA 370MOHM SMD |
4,360 | - |
|
Datasheet | LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

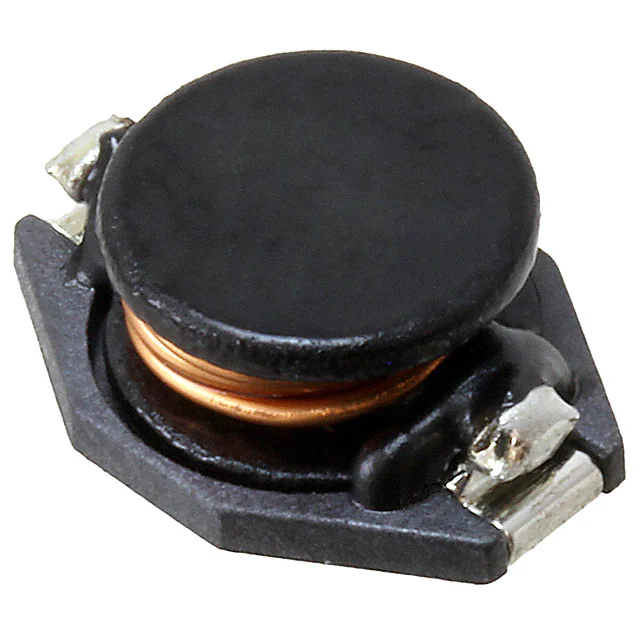

LMXN1310M4R7CTASFIXED IND 4.7UH 36 MOHM SMD |
2,008 | - |
|
Datasheet | LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | - | 4.2A | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.20mm x 9.90mm) | 0.250" (6.35mm) |
|

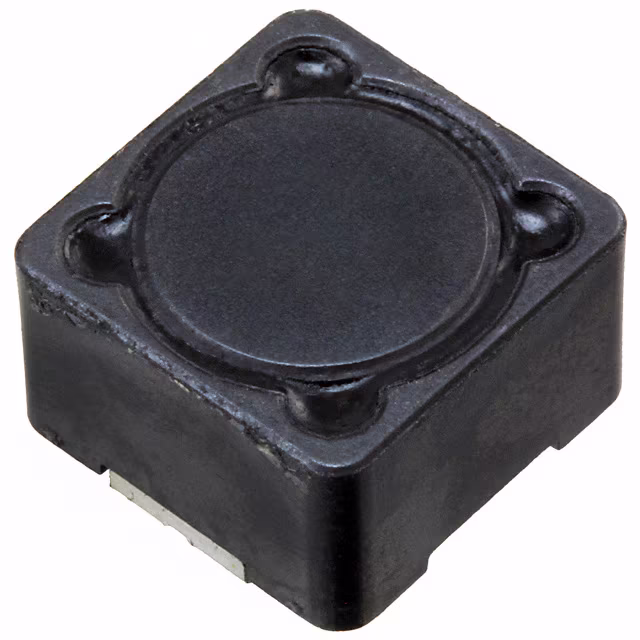

LMXS1212M330HTASFIXED IND 33UH 2.7A 97 MOHM SMD |
4,388 | - |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | - | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
LMXS0606M471BTASFIXED IND 470UH 2.58 OHM SMD |
1,997 | - |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 µH | ±20% | - | 200mA | Shielded | 2.58Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.118" (3.00mm) |
|
LMXS131JM220FTASFIXED IND 22UH 4A 32 MOHM SMD |
2,900 | - |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4 A | - | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
