Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMXS131JM470FTASFIXED IND 47UH 2.7A 64 MOHM SMD |
4,124 | - |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | - | Shielded | 64mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LMLP1011M150DTASFIXED IND 15UH 6.25A 45MOHM SMD |
4,438 | - |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 6.25 A | 7A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
LMLP1011M470DTASFIXED IND 47UH 3.3A 145MOHM SMD |
4,204 | - |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 47 µH | ±20% | 3.3 A | 3.5A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
LMLP1011M220DTASFIXED IND 22UH 5A 66 MOHM SMD |
2,703 | - |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 5 A | 5.5A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|

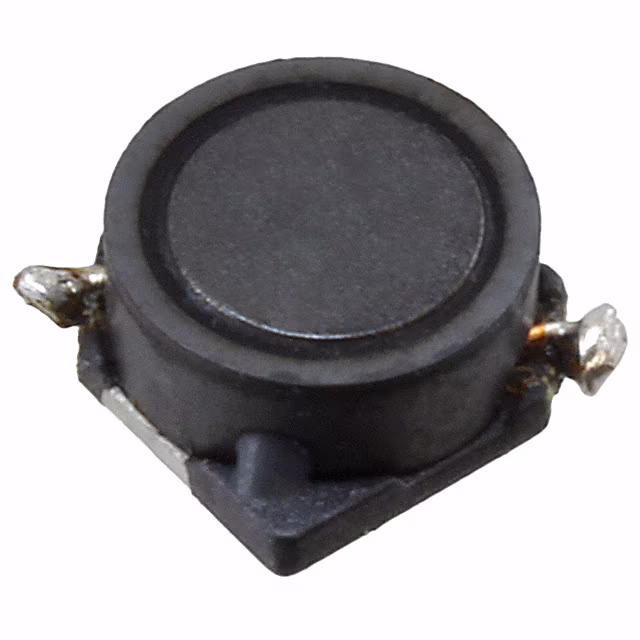

LMXS06C6M100FTASFIXED IND 10UH 1.3A 98 MOHM SMD |
3,252 | - |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | - | Shielded | 98mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
LMLP1313M4R7DTASFIXED IND 4.7UH 12A 15MOHM SMD |
4,475 | - |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 12 A | 27A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M8R2DTASFIXED IND 8.2UH 9.5A 22.5MOHM SM |
4,735 | - |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 9.5 A | 18A | Shielded | 22.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313MR82DTASFIXED IND 820NH 31A 2.3MOHM SMD |
1,247 | - |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 820 nH | ±20% | 31 A | 53A | Shielded | 2.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M6R8DTASFIXED IND 6.8UH 11A 18.5MOHM SMD |
3,034 | - |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 11 A | 21A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
LMLP1313M1R5DTASFIXED IND 1.5UH 23A 4.1MOHM SMD |
2,426 | - |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.5 µH | ±20% | 23 A | 48A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
