Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQM31PNR47MC0LFIXED IND 470NH 1.3A 107MOHM SMD |
3,468 | - |
|
Datasheet | LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 1.3 A | - | Shielded | 107mOhm Max | - | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|

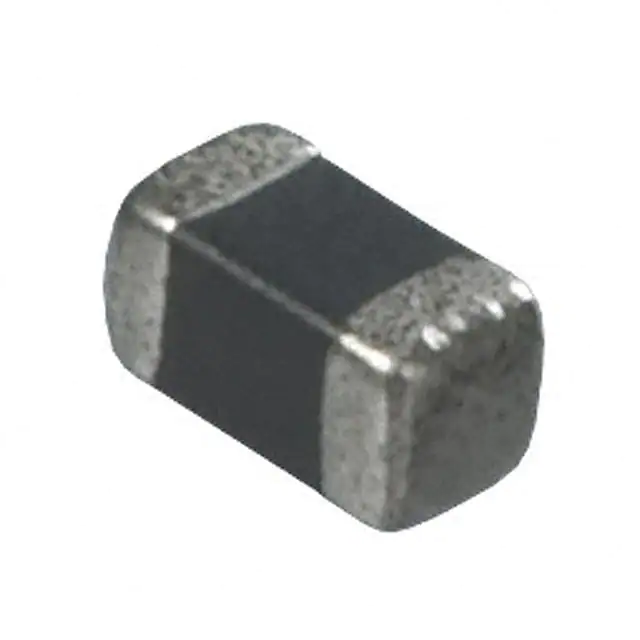

LQB18NNR27N10DFIXED IND 270NH 450MA 450MOHM SM |
4,973 | - |
|
Datasheet | LQB18 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 270 nH | ±30% | 450 mA | - | Shielded | 450mOhm Max | 25 @ 25MHz | 80MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQB18NNR33K10DFIXED IND 330NH 450MA 450MOHM SM |
3,332 | - |
|
Datasheet | LQB18 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 330 nH | ±10% | 450 mA | - | Shielded | 450mOhm Max | 25 @ 25MHz | 80MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQH44PN100MGRLFIXED IND 10UH 660MA 324MOHM SMD |
3,378 | - |
|
Datasheet | LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 660 mA | 800mA | Shielded | 324mOhm Max | - | 13MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN150MGRLFIXED IND 15UH 540MA 504MOHM SMD |
3,060 | - |
|
Datasheet | LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 540 mA | 640mA | Shielded | 504mOhm Max | - | 10MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN1R0NGRLFIXED IND 1UH 1.3A 74.4 MOHM SMD |
4,167 | - |
|
Datasheet | LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.3 A | 1.7A | Shielded | 74.4mOhm Max | - | 50MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN220MGRLFIXED IND 22UH 450MA 684MOHM SMD |
2,655 | - |
|
Datasheet | LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 450 mA | 500mA | Shielded | 684mOhm Max | - | 8MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN470MGRLFIXED IND 47UH 240MA 2.04OHM SMD |
3,775 | - |
|
Datasheet | LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 240 mA | 360mA | Shielded | 2.04Ohm Max | - | 6MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PN4R7MGRLFIXED IND 4.7UH 960MA 156MOHM SM |
1,910 | - |
|
Datasheet | LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 960 mA | 1.2A | Shielded | 156mOhm Max | - | 17MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
-Height-1.20mm.jpg "1239AS-H-6R0M=P2")
|
1239AS-H-6R0M=P2FIXED IND 6UH 1.1A 275 MOHM SMD |
1,781 | - |
|
Datasheet | DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 6 µH | ±20% | 1.1 A | 1.4A | Shielded | 275mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
