Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFEG12060D-2R2M=P3FIXED IND 2.2UH 16A 4.4MOHM SMD |
1,919 | - |
|
Datasheet | DFEG12060D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 2.2 µH | ±20% | 16 A | 21A | Shielded | 4.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.236" (6.00mm) |
|
|
DFEG12060D-3R3M=P3FIXED IND 3.3UH 13A 6.3MOHM SMD |
1,688 | - |
|
Datasheet | DFEG12060D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 3.3 µH | ±20% | 13 A | 18A | Shielded | 6.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.236" (6.00mm) |
|
|
DFEG12060D-4R7M=P3FIXED IND 4.7UH 10A 11 MOHM SMD |
1,685 | - |
|
Datasheet | DFEG12060D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 4.7 µH | ±20% | 10 A | 14A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.236" (6.00mm) |
|
|
DFEG12060D-5R6M=P3FIXED IND 5.6UH 10A 11 MOHM SMD |
2,360 | - |
|
Datasheet | DFEG12060D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 5.6 µH | ±20% | 10 A | 13A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.236" (6.00mm) |
|
|
DFEG12060D-6R8M=P3FIXED IND 6.8UH 9A 14 MOHM SMD |
1,747 | - |
|
Datasheet | DFEG12060D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 6.8 µH | ±20% | 9 A | 11A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.236" (6.00mm) |
|
|
DFEG12060D-8R2M=P3FIXED IND 8.2UH 8A 17 MOHM SMD |
4,654 | - |
|
Datasheet | DFEG12060D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 8.2 µH | ±20% | 8 A | 11A | Shielded | 17mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.236" (6.00mm) |
|

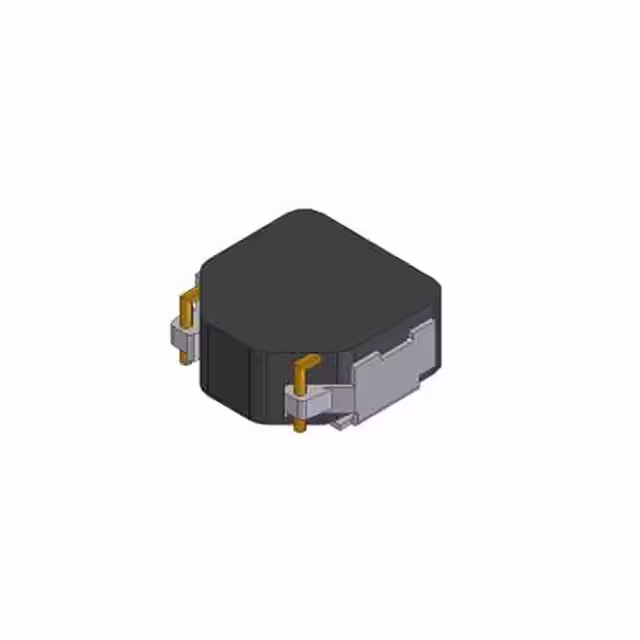

DFEH10040D-8R2M=P3FIXED IND 8.2UH 5.9A 29MOHM SMD |
1,029 | - |
|
Datasheet | DFEH10040D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | 8.2 µH | ±20% | 5.9 A | 7.4A | Shielded | 29mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 MHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|

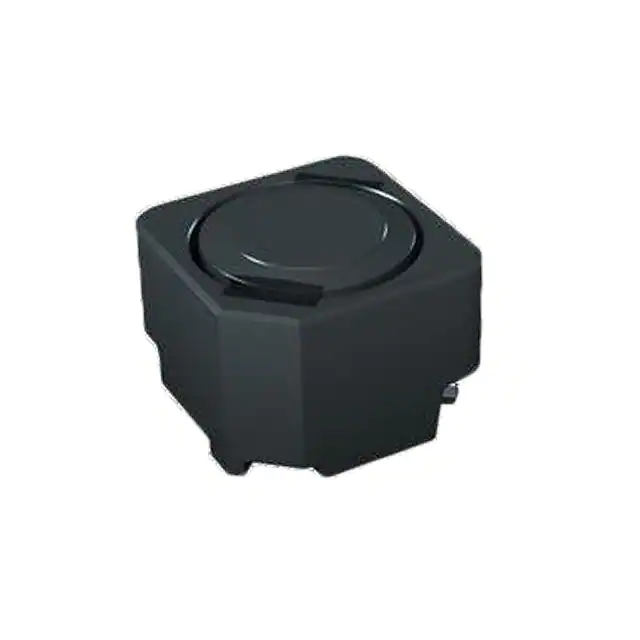

MBH6045C-470MA=P3FIXED IND 47UH 1A 307.2MOHM SMD |
2,183 | - |
|
Datasheet | MBH6045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1 A | 1.4A | Shielded | 307.2mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.189" (4.80mm) |
|
MBH7045C-220MA=P3FIXED IND 22UH 1.9A 73.2MOHM SMD |
2,829 | - |
|
Datasheet | MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 1.4A | Shielded | 73.2mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
|
|
MBH7045C-470MA=P3FIXED IND 47UH 1.3A 150MOHM SMD |
2,595 | - |
|
Datasheet | MBH7045C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 940mA | Shielded | 150mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.189" (4.80mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
