Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1135AS-150M=P3FIXED IND 15UH 2.5A 64 MOHM SMD |
2,247 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 2A | Shielded | 64mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-101M=P3FIXED IND 100UH 1.1A 330MOHM SMD |
3,735 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.1 A | 790mA | Shielded | 330mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|

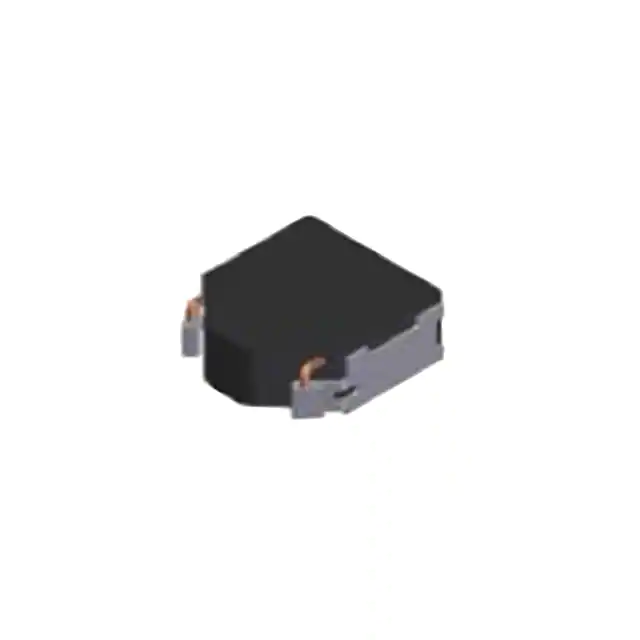

FDSD0420-H-R68M=P3FIXED IND 680NH 6.5A 22MOHM SMD |
2,504 | - |
|
Datasheet | FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 680 nH | ±20% | 6.5 A | 8.3A | Shielded | 22mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
FDSD0630-H-R68M=P3FIXED IND 680NH 9.61A 8.6MOHM SM |
4,139 | - |
|
Datasheet | FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 680 nH | ±20% | 9.61 A | 17A | Shielded | 8.6mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

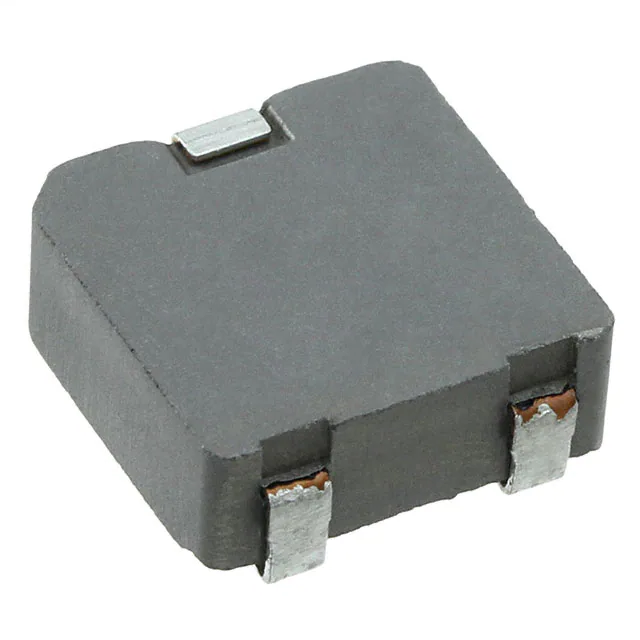

FDA1254-H-3R3M=P3FIXED IND 3.3UH 11.5A 7 MOHM SMD |
4,444 | - |
|
Datasheet | FDA1254 | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 11.5 A | 13.1A | Shielded | 7mOhm | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.496" W (12.90mm x 12.60mm) | 0.213" (5.40mm) |
|
#A916CY-3R3M=P3FIXED IND 3.3UH 3.52A 26MOHM SMD |
3,887 | - |
|
Datasheet | D63CB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 3.52 A | - | Shielded | 26mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|
LQW04CA60NK00DFIXED IND 60NH 620MA 180MOHM SMD |
4,400 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 60 nH | ±10% | 620 mA | - | Unshielded | 180mOhm Max | - | 3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CA90NK00DFIXED IND 90NH 520MA 240MOHM SMD |
3,378 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 90 nH | ±10% | 520 mA | - | Unshielded | 240mOhm Max | - | 2.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR12K00DFIXED IND 120NH 510MA 280MOHM SM |
2,687 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 510 mA | - | Unshielded | 280mOhm Max | - | 2.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR29K00DFIXED IND 290NH 270MA 940MOHM SM |
2,302 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 290 nH | ±10% | 270 mA | - | Unshielded | 940mOhm Max | - | 1.4GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
