Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW04CAR45K00DFIXED IND 450NH 200MA 1.23OHM SM |
2,448 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 450 nH | ±10% | 200 mA | - | Unshielded | 1.23Ohm Max | - | 850MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR51K00DFIXED IND 510NH 200MA 1.31OHM SM |
4,337 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 510 nH | ±10% | 200 mA | - | Unshielded | 1.31Ohm Max | - | 700MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
#FSLM2520-820J=P2FIXED IND 82UH 65MA 12.5 OHM SMD |
2,422 | - |
|
Datasheet | LLM2520 | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±5% | 65 mA | - | - | 12.5Ohm Max | 25 @ 2.52MHz | 11MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.067" (1.70mm) |
|
|
FDUE1040D-H-1R0M=P3FIXED IND 1UH 18A 2.515 MOHM SMD |
4,452 | - |
|
Datasheet | FDUE1040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 18 A | 16A | Shielded | 2.515mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.394" W (11.20mm x 10.00mm) | 0.157" (4.00mm) |
|
FDA1254-H-4R7M=P3FIXED IND 4.7UH 10.2A 8.8MOHM SM |
2,698 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 10.2 A | 11.2A | Shielded | 8.8mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.496" W (12.90mm x 12.60mm) | 0.213" (5.40mm) |
|
|
FDA1055-H-3R3M=P3FIXED IND 3.3UH 11.2A 7.3MOHM SM |
3,006 | - |
|
Datasheet | FDA1055 | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 11.2 A | 11.7A | Shielded | 7.3mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.425" W (10.80mm x 10.80mm) | 0.217" (5.50mm) |
|

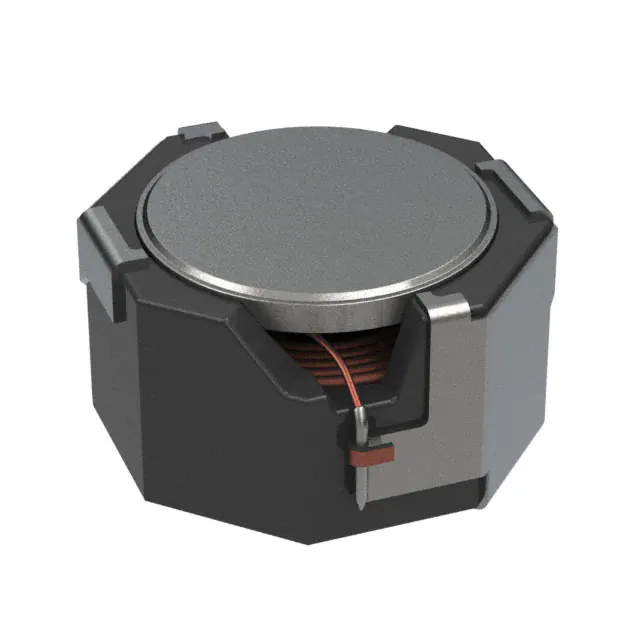

MDH12577C-330MA=P3FIXED IND 33UH 2.7A 39 MOHM SMD |
2,800 | - |
|
Datasheet | MDH12577C | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | 4A | Unshielded | 39mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
FDSD0415-H-1R0M=P3FIXED IND 1UH 4.5A 41 MOHM SMD |
4,047 | - |
|
Datasheet | FDSD0415 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1 µH | ±20% | 4.5 A | 5.3A | Shielded | 41mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.059" (1.50mm) |
|
FDVE1040-H-3R3M=P3FIXED IND 3.3UH 9A 10.1MOHM SMD |
3,892 | - |
|
Datasheet | FDVE1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 3.3 µH | ±20% | 9 A | 9.8A | Unshielded | 10.1mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.394" W (11.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFE201208S-1R0M=P2FIXED IND 1UH 2.1A 84 MOHM SMD |
3,262 | - |
|
Datasheet | DFE201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2.1 A | 2.7A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
