Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11R103CFIXED IND 10UH 950MA 140 MOHM TH |
1,238 | - |
|
Datasheet | 1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | 950 mA | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|

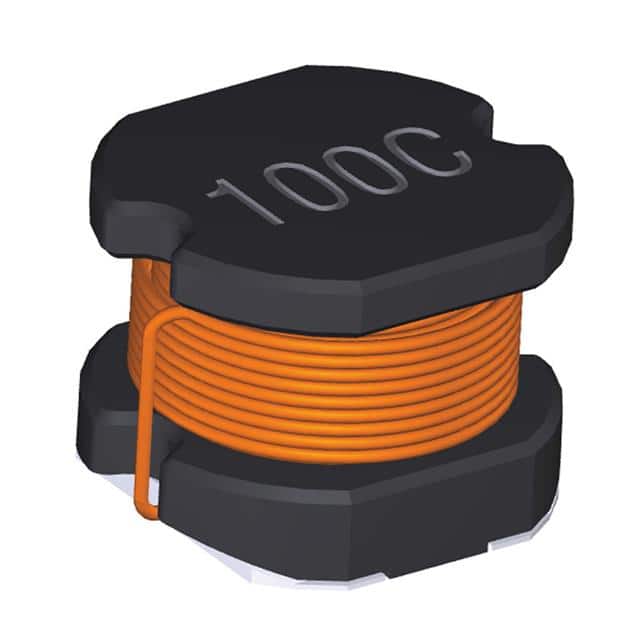

23100CFIXED IND 10UH 1.02A 138MOHM SMD |
1,508 | - |
|
Datasheet | 2300 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | - | 1.02 A | - | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
45223CFIXED IND 22UH 1.35A 180MOHM SMD |
7,769 | - |
|
Datasheet | 4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.35 A | - | Shielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
|
45105CFIXED IND 1MH 230MA 6.5 OHM SMD |
3,913 | - |
|
Datasheet | 4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 230 mA | - | Shielded | 6.5Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
|
45224CFIXED IND 220UH 500MA 1.55OHM SM |
2,445 | - |
|
Datasheet | 4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 500 mA | - | Shielded | 1.55Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
46223CFIXED IND 22UH 1.8A 120 MOHM SMD |
5,066 | - |
|
Datasheet | 4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.8 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
|
46683CFIXED IND 68UH 1.05A 360MOHM SMD |
2,622 | - |
|
Datasheet | 4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.05 A | - | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
|
46104CFIXED IND 100UH 860MA 500MOHM SM |
1,241 | - |
|
Datasheet | 4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 860 mA | - | Shielded | 500mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
48330SCFIXED IND 33UH 2.8A 73 MOHM SMD |
3,187 | - |
|
Datasheet | 4800S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2.8 A | - | Shielded | 73mOhm Max | 31 @ 1MHz | 11MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.236" (6.00mm) |
|
|
48470SCFIXED IND 47UH 2.4A 100MOHM SMD |
1,474 | - |
|
Datasheet | 4800S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.4 A | - | Shielded | 100mOhm Max | 32 @ 1MHz | 10MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.236" (6.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
