Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0426.201NLTFIXED IND 200NH 26A 2.2 MOHM SMD |
2,095 | - |
|
Datasheet | PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 200 nH | ±20% | 26 A | 46A | Shielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|

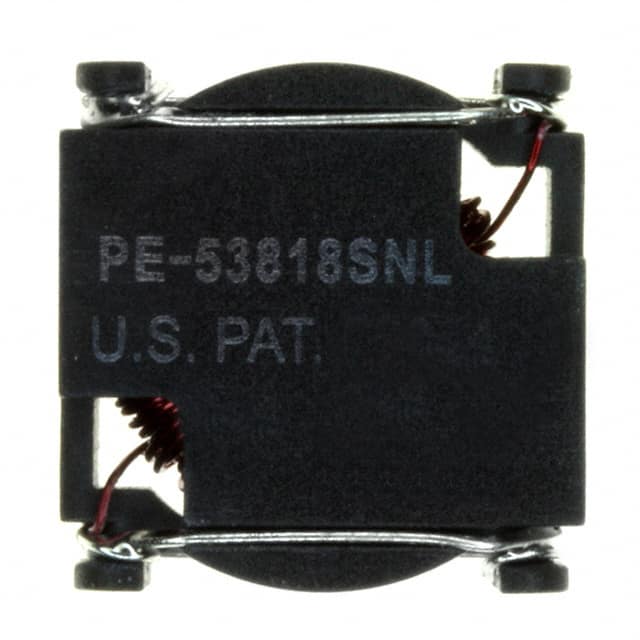

PE-53818SNLFIXED IND 252UH 440MA 900MOHM SM |
182 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 252 µH | ±20% | 440 mA | - | Shielded | 900mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53718NLFIXED IND 21.9UH 2.7A 90.5 MOHM |
1,010 | - |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 21.9 µH | - | 2.7 A | - | Unshielded | 90.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.390" (9.91mm) |
|

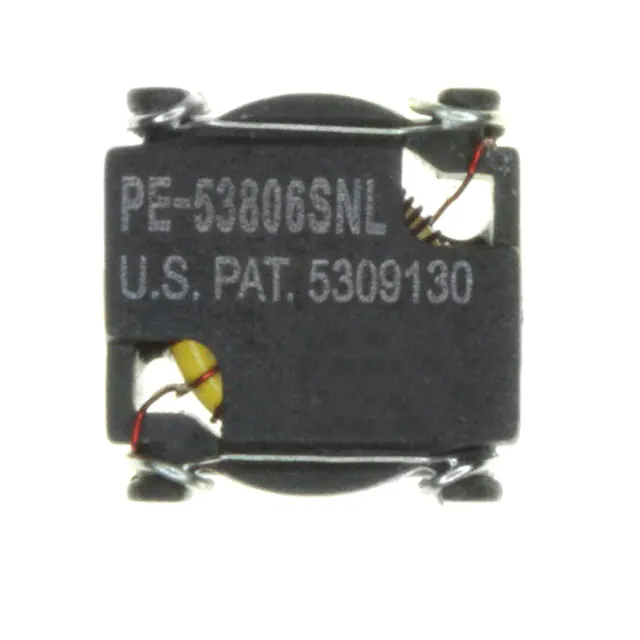

PE-53806SNLFIXED IND 39UH 340MA 800MOHM SMD |
1,268 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 39 µH | ±20% | 340 mA | - | Shielded | 800mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|

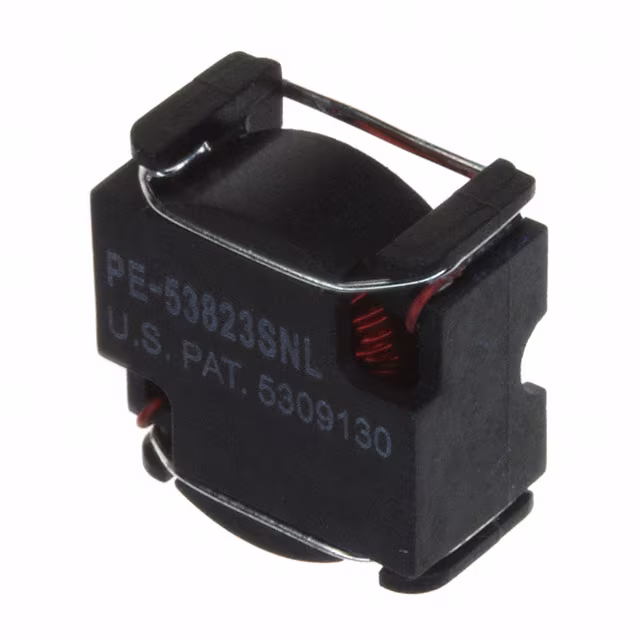

PE-53823SNLFIXED IND 38UH 1.2A 100 MOHM SMD |
617 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 38 µH | ±20% | 1.2 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-54041SNLTFIXED IND 25UH 3A 40 MOHM SMD |
520 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PB2020.153NLFIXED IND 15UH 9.7A 13 MOHM SMD |
1,271 | - |
|
Datasheet | PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 15 µH | ±20% | 9.7 A | 18A | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
|
PA2050.233NLFIXED IND 23UH 8A 13.7 MOHM SMD |
695 | - |
|
Datasheet | PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 23 µH | ±10% | 8 A | 9.8A | Shielded | 13.7mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
PG0077.202NLTFIXED IND 2UH 23A 2.9 MOHM SMD |
1,909 | - |
|
Datasheet | PG0077NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 2 µH | ±20% | 23 A | 24A | Unshielded | 2.9mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.256" (6.50mm) |
|
PA2729.383NLFIXED IND 38.3UH 6.5A 19.7 MOHM |
1,040 | - |
|
Datasheet | PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 38.3 µH | ±15% | 6.5 A | 7.8A | Shielded | 19.7mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
