Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9499.122CNLTINDUCTOR 1.25UH 3.5A ER11 SMD |
400 | - |
|
Datasheet | PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.25 µH | ±6% | 3.5 A | 22A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
|
PE-92408NLFIXED IND 67UH 3.6A 45 MOHM TH |
548 | - |
|
Datasheet | - | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 67 µH | ±20% | 3.6 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|

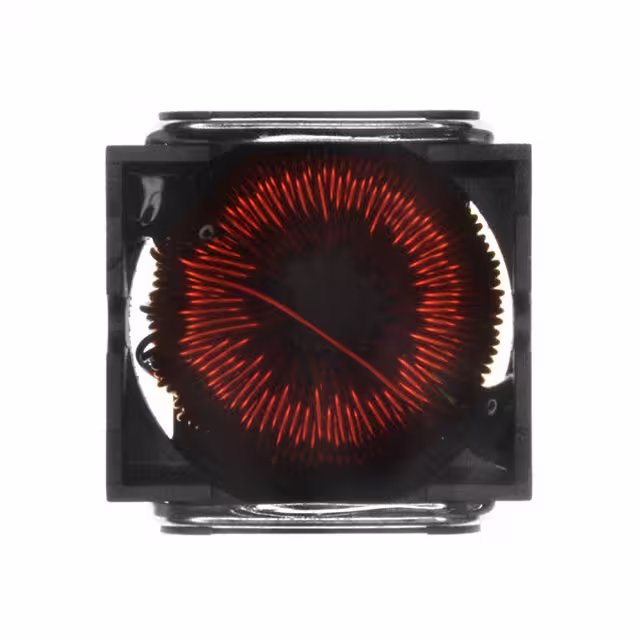

PE-53935SNLFIXED IND 250UH 1.5A 230MOHM SMD |
417 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 250 µH | ±20% | 1.5 A | - | Shielded | 230mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PE-54044NLFIXED IND 77UH 3A 80 MOHM TH |
1,101 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PH9499.102CNLTINDUCTOR 1.05UH 3.5A ER11 SMD |
377 | - |
|
Datasheet | PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.05 µH | ±6% | 3.5 A | 25A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
|
PG0936.682NLTFIXED IND 6.8UH 18A 3.5 MOHM SMD |
989 | - |
|
Datasheet | PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 18 A | 18A | Unshielded | 3.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
PE-92104NLFIXED IND 70UH 3A 52 MOHM TH |
555 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 70 µH | ±20% | 3 A | - | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" Dia x 0.410" W (21.59mm x 10.41mm) | - |
|
PA4344.102NLTFIXED IND 1UH 52A 2 MOHM SMD |
1,052 | - |
|
Datasheet | PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | - | 52 A | 60A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
PE-53820SNLFIXED IND 115UH 670MA 400MOHM SM |
222 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PA4344.222NLTFIXED IND 2.2UH 43.5A 2.7MOHM SM |
434 | - |
|
Datasheet | PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | - | 43.5 A | 46A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
