Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

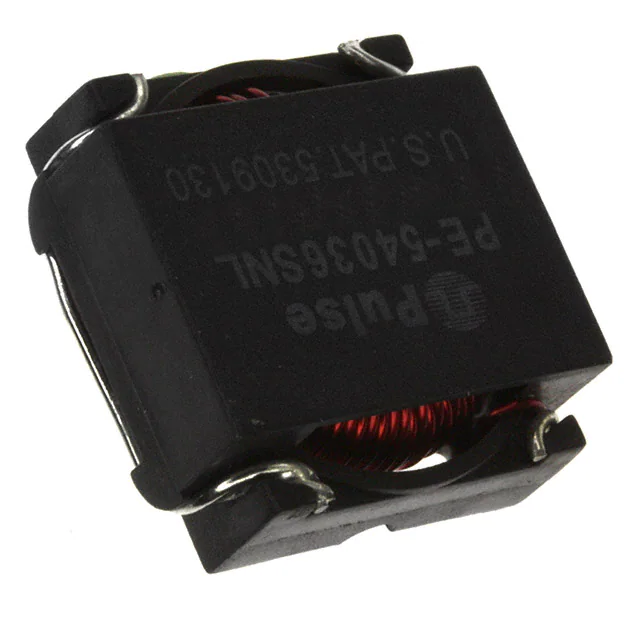

PE-54036SNLFIXED IND 168UH 1.81A 180MOHM SM |
168 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 168 µH | ±20% | 1.81 A | - | Shielded | 180mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
P0146NLFIXED IND 25UH 2.43A 75 MOHM SMD |
308 | - |
|
Datasheet | Bobcat | Nonstandard | Tube | Active | Toroidal | - | 25 µH | - | 2.43 A | - | Unshielded | 75mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
PM4344.333NLTFIXED IND 33UH 10.7A 44MOHM SMD |
141 | - |
|
Datasheet | PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 10.7 A | 15A | Shielded | 44mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|

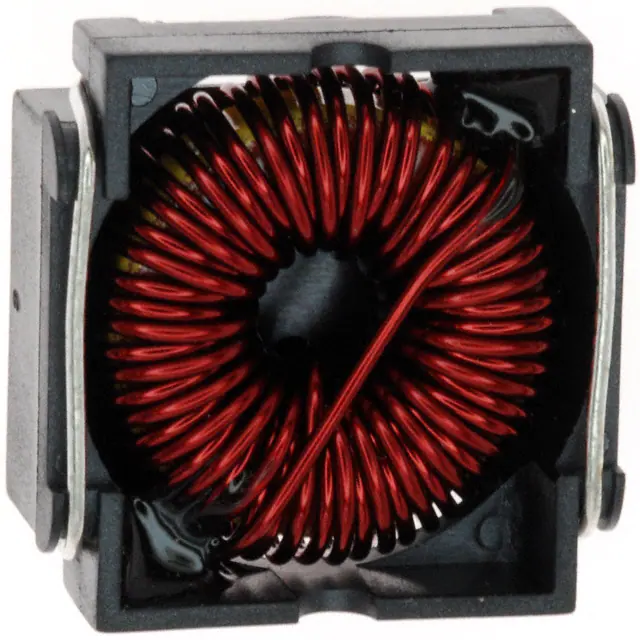

PE-54039SNLFIXED IND 53UH 3A 80 MOHM SMD |
994 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PE-53831NLFIXED IND 53UH 1.87A 130 MOHM TH |
556 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 53 µH | ±20% | 1.87 A | - | Shielded | 130mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
PG1083.323NLFIXED IND 32UH 9A 21.5 MOHM SMD |
760 | - |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 32 µH | ±20% | 9 A | 12.5A | Unshielded | 21.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
PA2247.472NLTFIXED IND 4.7UH 30A 3.8MOHM SMD |
750 | - |
|
Datasheet | PA2247.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 30 A | 39A | Unshielded | 3.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
|
PM5433.103NLTFIXED IND 10UH 16A 9.6 MOHM SMD |
806 | - |
|
Datasheet | PM5433.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 16 A | - | Shielded | 9.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.315" (8.00mm) |
|
PE-51516NLFIXED IND 98UH 6A 48 MOHM TH |
391 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 98 µH | - | 6 A | - | Unshielded | 48mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | 1.720" (43.68mm) |
|
PE-51515NLFIXED IND 52UH 7A 32 MOHM TH |
327 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tube | Active | Toroidal | - | 52 µH | - | 7 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.440" L x 0.800" W (36.57mm x 20.32mm) | 1.440" (36.57mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
