Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

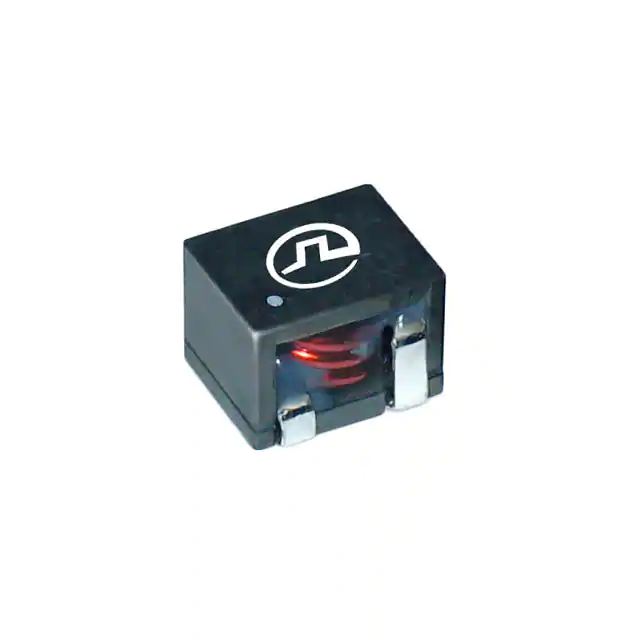

PG0936.183NLTFIXED IND 18UH 9.8A 13.8MOHM SMD |
2,888 | - |
|
Datasheet | PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 9.8 A | 11A | Unshielded | 13.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.253NLTFIXED IND 25UH 7A 19.4 MOHM SMD |
1,167 | - |
|
Datasheet | PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 25 µH | ±20% | 7 A | 9.2A | Unshielded | 19.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.282NLTFIXED IND 2.8UH 24A 2.2 MOHM SMD |
4,169 | - |
|
Datasheet | PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 24 A | 28A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.851NLTFIXED IND 850NH 40A 0.87MOHM SMD |
4,343 | - |
|
Datasheet | PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 850 nH | ±20% | 40 A | 50A | Unshielded | 0.87mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.315" (8.00mm) |
|
APCK00131111100M80HIGHT CURRENT TYPE |
3,639 | - |
|
Datasheet | APCK | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.2 A | 7.1A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.413" W (12.80mm x 10.50mm) | 0.421" (10.70mm) |
|
|
APCK00080809100M80HIGHT CURRENT TYPE |
4,857 | - |
|
Datasheet | APCK | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.7 A | 4.3A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.354" (9.00mm) |
|
|
APCK00100910100M80HIGHT CURRENT TYPE |
4,366 | - |
|
Datasheet | APCK | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | 5A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
|
APCK00080809220M80HIGHT CURRENT TYPE |
2,262 | - |
|
Datasheet | APCK | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 3A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.354" (9.00mm) |
|
P1170.222NLTFIXED IND 2.2UH 9.6A 5.7MOHM SMD |
3,881 | - |
|
Datasheet | P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±30% | 9.6 A | 9.7A | Shielded | 5.7mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
|
P1170.502NLTFIXED IND 5UH 6.4A 12 MOHM SMD |
1,017 | - |
|
Datasheet | P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5 µH | ±30% | 6.4 A | 6.4A | Shielded | 12mOhm Max | - | 30MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
