Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

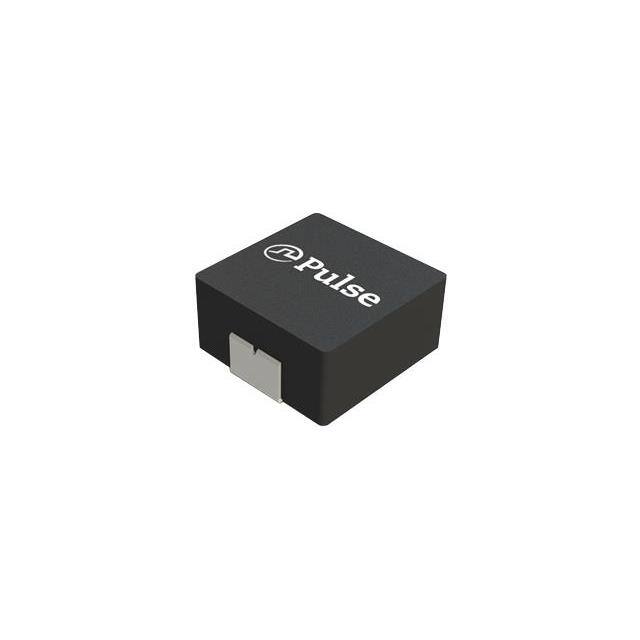

PA4344.683ANLTIND POWDER MOLDED 18.3X17.2X7 |
3,542 | - |
|
Datasheet | PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 6.5 A | 7.2A | Shielded | 76mOhm Max | - | 4MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|

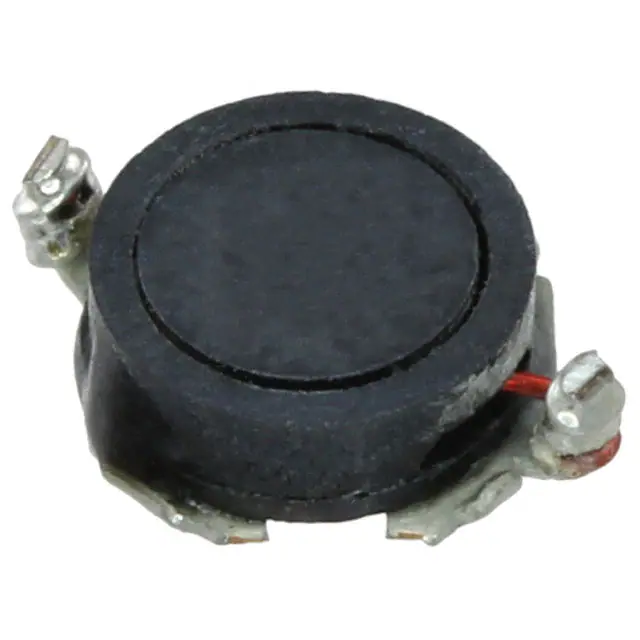

PG0085.223NLFIXED IND 22UH 400MA 360MOHM SMD |
4,400 | - |
|
Datasheet | PG0085NL | Nonstandard | Tray | Obsolete | Wirewound | - | 22 µH | ±20% | 400 mA | 400mA | Shielded | 360mOhm Max | - | 33MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.071" (1.80mm) |
|
|
PG0085.473NLFIXED IND 47UH 280MA 780MOHM SMD |
2,373 | - |
|
Datasheet | PG0085NL | Nonstandard | Tray | Obsolete | Wirewound | - | 47 µH | ±20% | 280 mA | 280mA | Shielded | 780mOhm Max | - | 14MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.071" (1.80mm) |
|
|
PG0085.152NLFIXED IND 1.5UH 1.3A 38 MOHM SMD |
1,664 | - |
|
Datasheet | PG0085NL | Nonstandard | Tray | Obsolete | Wirewound | - | 1.5 µH | ±20% | 1.3 A | 1.3A | Shielded | 38mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.071" (1.80mm) |
|
PG1083.262NLTFIXED IND 26UH SMD |
3,982 | - |
|
Datasheet | PG1083NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 26 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
PM4344.152NLTFIXED IND 1.5UH 47A 2.5 MOHM SMD |
1,069 | - |
|
Datasheet | PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 47 A | 52A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.683NLTFIXED IND 68UH 7A 80 MOHM SMD |
2,407 | - |
|
Datasheet | PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 7 A | 8A | Shielded | 80mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.563NLTFIXED IND 56UH 7.8A 62 MOHM SMD |
3,826 | - |
|
Datasheet | PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 56 µH | ±20% | 7.8 A | 9A | Shielded | 62mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.132NLTFIXED IND 1.3UH 49A 2.3 MOHM SMD |
2,912 | - |
|
Datasheet | PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.3 µH | ±20% | 49 A | 54A | Shielded | 2.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PM4344.822NLTFIXED IND 8.2UH 18A 10.8MOHM SMD |
2,081 | - |
|
Datasheet | PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 18 A | 25A | Shielded | 10.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
