Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-0805CM820KTTFIXED IND 82NH 400MA 360MOHM SMD |
1,347 | - |
|
Datasheet | 0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±10% | 400 mA | - | Unshielded | 360mOhm Max | 60 @ 500MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
PE-0805CM471GTTFIXED IND 470NH 240MA 3.25OHM SM |
1,438 | - |
|
Datasheet | 0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 240 mA | - | Unshielded | 3.25Ohm Max | 38 @ 100MHz | 600MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
PE-0805CD152GTTFIXED IND 1.5UH 100MA 5 OHM SMD |
2,147 | - |
|
Datasheet | 0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 1.5 µH | ±2% | 100 mA | - | Unshielded | 5Ohm Max | 20 @ 50MHz | 200MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
PE-0805CD910GTTFIXED IND 91NH 400MA 440MOHM SMD |
1,422 | - |
|
Datasheet | 0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 91 nH | ±2% | 400 mA | - | Unshielded | 440mOhm Max | 65 @ 500MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
.jpg "PE-1008CM271JTT")
|
PE-1008CM271JTTFIXED IND 270NH 500MA 500MOHM SM |
3,669 | - |
|
Datasheet | 1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 500 mA | - | Unshielded | 500mOhm Max | 45 @ 100MHz | 525MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|

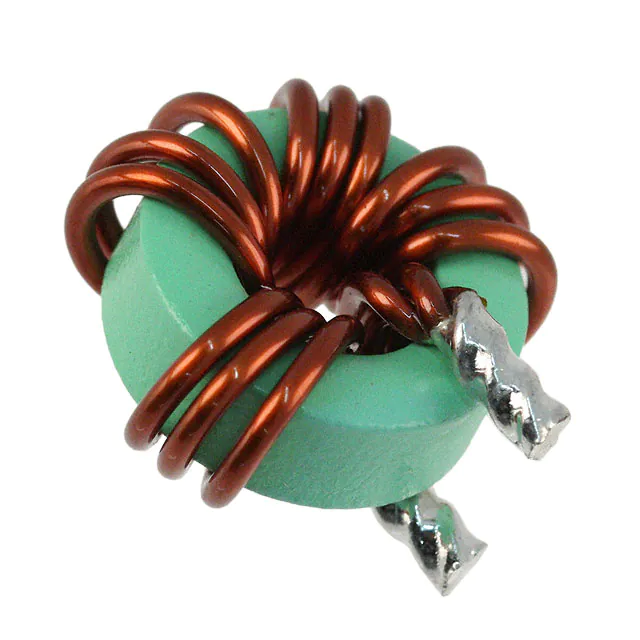

PG0123NLFIXED IND 490NH 48A 0.85 MOHM TH |
4,122 | - |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 490 nH | - | 48 A | - | Unshielded | 0.85mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.807" Dia x 0.413" W (20.50mm x 10.50mm) | - |
|
PA0373NLFIXED IND 2.1UH 34A 3.85 OHM SMD |
3,209 | - |
|
Datasheet | Spyglass | Nonstandard | Tray | Active | - | - | 2.1 µH | ±12% | 34 A | 35.2A | Shielded | 3.85Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.920" L x 0.790" W (23.37mm x 20.07mm) | 0.290" (7.37mm) |
|
|
PG0016.102NLFIXED IND 1UH 4.5A 13 MOHM SMD |
4,944 | - |
|
Datasheet | PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±15% | 4.5 A | 6.8A | Unshielded | 13mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.103NLFIXED IND 10UH 1.5A 80 MOHM SMD |
4,533 | - |
|
Datasheet | PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±15% | 1.5 A | 2.3A | Unshielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
|
|
PG0016.154NLFIXED IND 150UH 400MA 1.25OHM SM |
2,837 | - |
|
Datasheet | PG0016NL | 2420 (6050 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±15% | 400 mA | 550mA | Unshielded | 1.25Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.191" (4.85mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
