Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0382.104NLTFIXED IND 100UH 1.5A 200MOHM SMD |
3,055 | - |
|
Datasheet | PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.5 A | 2.6A | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PB2020.681NLTFIXED IND 680NH 30A 1.8 MOHM SMD |
3,960 | - |
|
Datasheet | PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 30 A | 70A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|

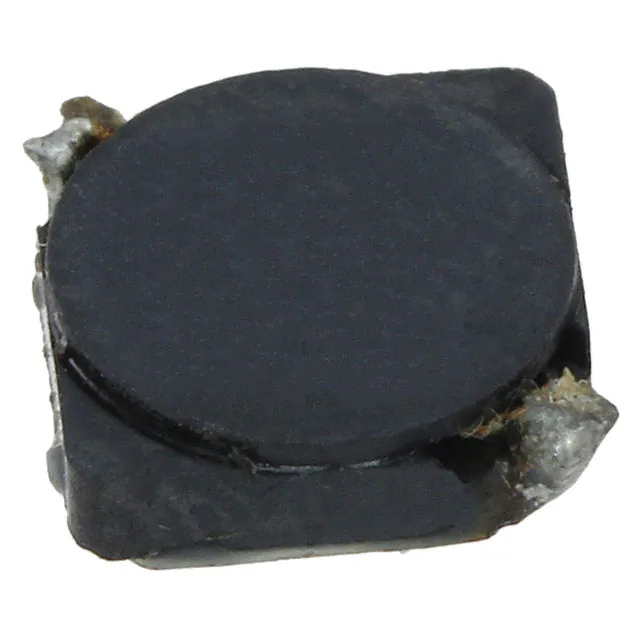

PG0087.224NLTFIXED IND 220UH 250MA 2.7OHM SMD |
1,638 | - |
|
Datasheet | PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 250 mA | 250mA | Shielded | 2.7Ohm Max | - | 7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PG0087.505NLTFIXED IND 5MH 25MA 64.2 OHM SMD |
3,311 | - |
|
Datasheet | PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 5 mH | ±20% | 25 mA | 25mA | Shielded | 64.2Ohm Max | - | 1.1MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PG0087.305NLTFIXED IND 3MH 38MA 31.53 OHM SMD |
2,640 | - |
|
Datasheet | PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 3 mH | ±20% | 38 mA | 38mA | Shielded | 31.53Ohm Max | - | 1.6MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PG0087.205NLTFIXED IND 2MH 50MA 24.9 OHM SMD |
2,267 | - |
|
Datasheet | PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 2 mH | ±20% | 50 mA | 50mA | Shielded | 24.9Ohm Max | - | 1.9MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|

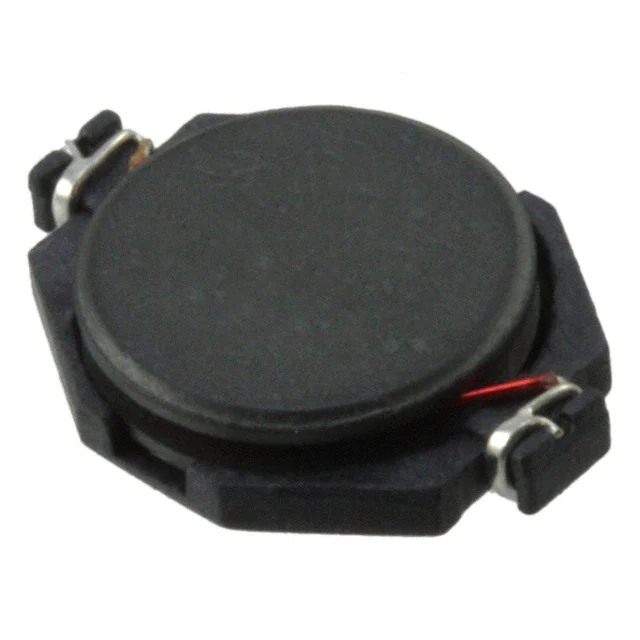

P0762.473NLTFIXED IND 47UH 800MA 390MOHM SMD |
2,418 | - |
|
Datasheet | P0762NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 800 mA | 1A | Unshielded | 390mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
PG0084.351NLTFIXED IND 350NH 40A 1.8 MOHM SMD |
4,289 | - |
|
Datasheet | PG0084NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 350 nH | ±20% | 40 A | 40A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.173" (4.40mm) |
|
PE-0805CM221GTTFIXED IND 220NH 300MA 850MOHM SM |
1,190 | - |
|
Datasheet | 0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 300 mA | - | Unshielded | 850mOhm Max | 45 @ 250MHz | 800MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
PE-0402CD680JTGFIXED IND 68NH 100MA 970MOHM SMD |
4,083 | - |
|
Datasheet | 0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 100 mA | - | Unshielded | 970mOhm Max | 16 @ 250MHz | 1.84GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
