Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1171.142NLTFIXED IND 1.4UH 11A 4.2 MOHM SMD |
2,504 | - |
|
Datasheet | P1171NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.4 µH | ±30% | 11 A | 13A | Shielded | 4.2mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
|
P1171.224NLTFIXED IND 220UH 1A 400 MOHM SMD |
4,122 | - |
|
Datasheet | P1171NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1 A | 1A | Shielded | 400mOhm Max | - | 3.5MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
PA2083.201NLTFIXED IND 205NH 27A 0.6 MOHM SMD |
4,099 | - |
|
Datasheet | PA2083NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 205 nH | ±10% | 27 A | 32A | Shielded | 0.6mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
|
|
PA1211.850NLTFIXED IND 85NH 31A 0.55 MOHM SMD |
3,127 | - |
|
Datasheet | PA1211NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 85 nH | ±20% | 31 A | 70A | Shielded | 0.55mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.96mm) |
|
|
PF0382.473NLTFIXED IND 47UH 2.7A 90 MOHM SMD |
2,338 | - |
|
Datasheet | PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.7 A | 3.8A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PF0698.683NLTFIXED IND 68UH 2A 130 MOHM SMD |
1,309 | - |
|
Datasheet | PF0698NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2 A | 3.1A | Unshielded | 130mOhm Max | - | 6MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PF0698.103NLTFIXED IND 10UH 4.9A 24 MOHM SMD |
2,532 | - |
|
Datasheet | PF0698NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 4.9 A | 8.3A | Unshielded | 24mOhm Max | - | 19MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
|
PF0698.334NLTFIXED IND 330UH 950MA 580MOHM SM |
3,734 | - |
|
Datasheet | PF0698NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 950 mA | 1.35A | Unshielded | 580mOhm Max | - | 2.3MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|

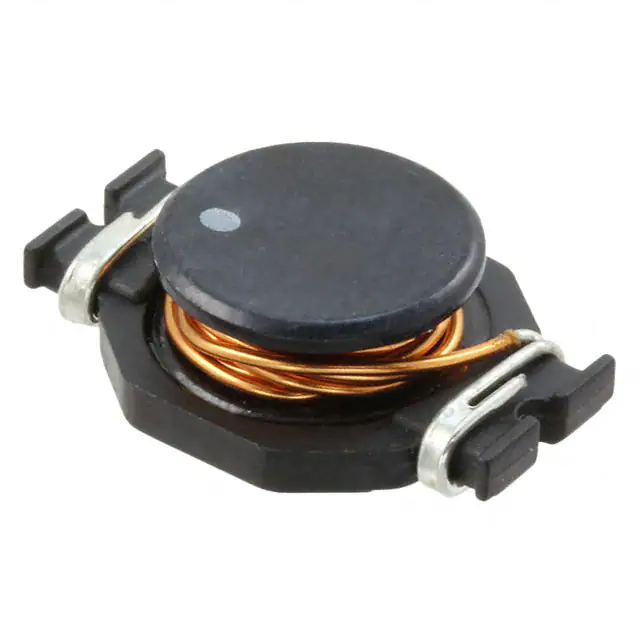

P1252.392NLTFIXED IND 3.9UH 9A 10 MOHM SMD |
2,076 | - |
|
Datasheet | P1252NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±20% | 9 A | 15A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.879" L x 0.596" W (22.33mm x 15.14mm) | 0.295" (7.49mm) |
|
|
PA2083.101NLTFIXED IND 105NH 27A 0.6 MOHM SMD |
2,179 | - |
|
Datasheet | PA2083NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 105 nH | ±10% | 27 A | 61A | Shielded | 0.6mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
