Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1494.162NLTFIXED IND 1.6UH 37A 1.8 MOHM SMD |
3,989 | - |
|
Datasheet | PA1494NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.6 µH | ±15% | 37 A | 55A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PF0504.392NLTFIXED IND 3.9UH 11.7A 6.7MOHM SM |
1,503 | - |
|
Datasheet | PF0504NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±20% | 11.7 A | 26A | Unshielded | 6.7mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
|
|
PF0504.473NLTFIXED IND 47UH 3.5A 55 MOHM SMD |
2,548 | - |
|
Datasheet | PF0504NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 3.5 A | 7A | Unshielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
|
P0453NLTFIXED IND 2.3UH 5A 15 MOHM SMD |
3,229 | - |
|
Datasheet | Ros 2 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.3 µH | ±15% | 5 A | - | Shielded | 15mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|
|
PG0437.601NLTFIXED IND 600NH 18A 0.85MOHM SMD |
3,504 | - |
|
Datasheet | PG0437NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 600 nH | ±20% | 18 A | 21A | Unshielded | 0.85mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.433" W (12.50mm x 11.00mm) | 0.177" (4.50mm) |
|
P0762.334NLTFIXED IND 330UH 300MA 2.7OHM SMD |
2,831 | - |
|
Datasheet | P0762NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 300 mA | 400mA | Unshielded | 2.7Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
P1174.102NLTFIXED IND 1UH 3A 13 MOHM SMD |
2,643 | - |
|
Datasheet | P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 3 A | 3A | Shielded | 13mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
PE-53719NLTFIXED IND 4.03UH 6.4A 23MOHM SMD |
3,725 | - |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4.03 µH | - | 6.4 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.770" L x 0.670" W (19.56mm x 17.02mm) | 0.390" (9.91mm) |
|

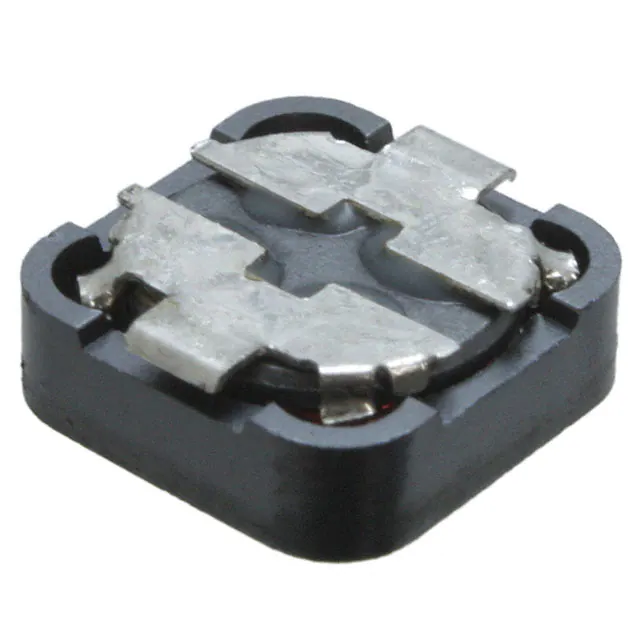

P1169.452NLTFIXED IND 4.5UH 6A 13 MOHM SMD |
1,694 | - |
|
Datasheet | P1169NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.5 µH | ±30% | 6 A | 6.4A | Shielded | 13mOhm Max | - | 35MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|

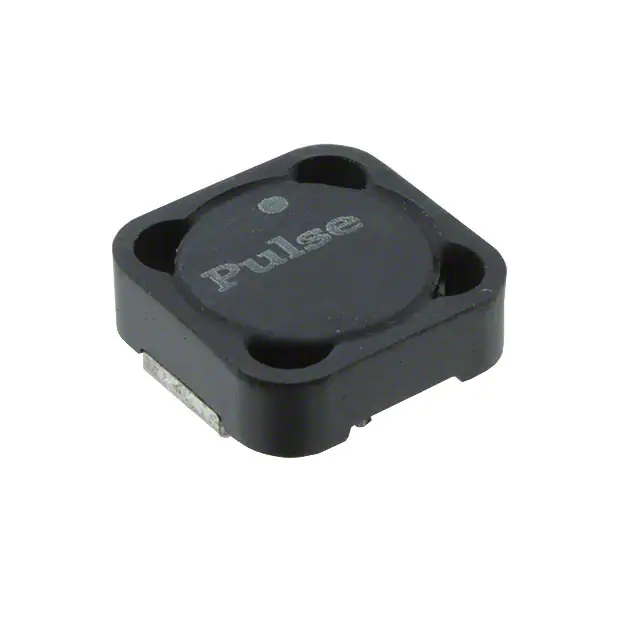

P1168.394NLTFIXED IND 390UH 620MA 1.087 OHM |
4,298 | - |
|
Datasheet | P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±20% | 620 mA | 620mA | Shielded | 1.087Ohm Max | - | 2.6MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
