Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1294.132NLTFIXED IND 1.3UH 25A 0.48MOHM SMD |
2,268 | - |
|
Datasheet | PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.3 µH | ±15% | 25 A | 29A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PF0465.104NLTFIXED IND 100UH 650MA 350MOHM SM |
2,936 | - |
|
Datasheet | PF0465NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 650 mA | 650mA | Shielded | 350mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.205" (5.20mm) |
|

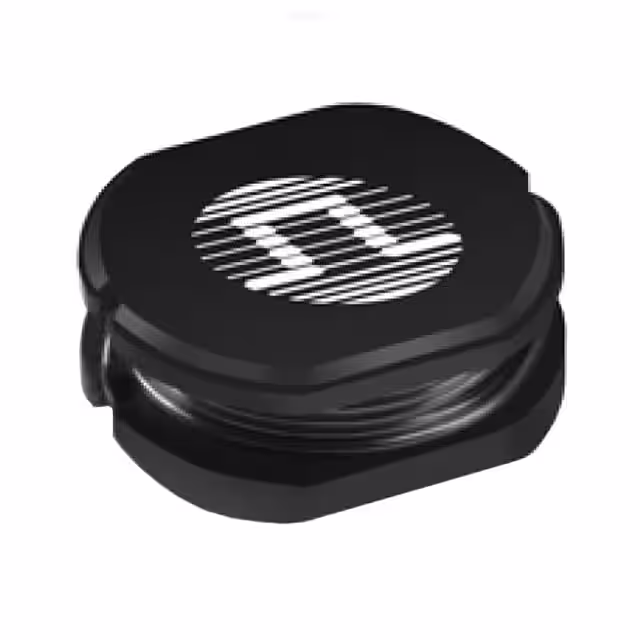

PF0581.184NLTFIXED IND 180UH 560MA 620MOHM SM |
2,877 | - |
|
Datasheet | PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±10% | 560 mA | 560mA | Unshielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|

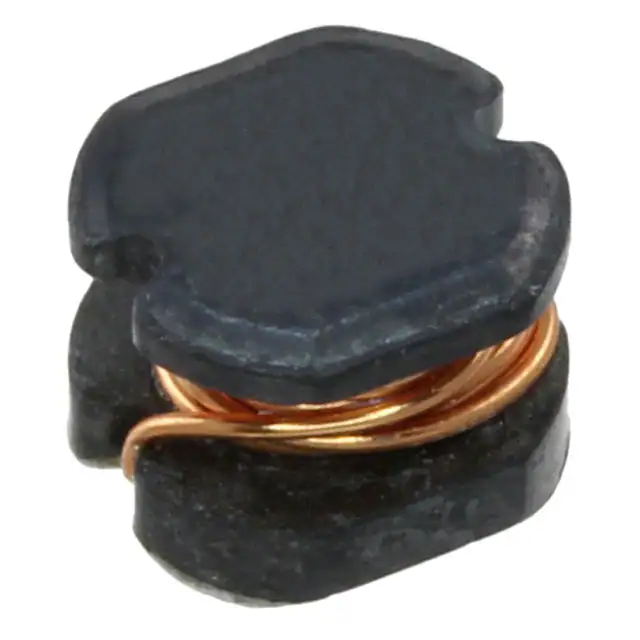

PF0580.223NLTFIXED IND 22UH 750MA 280MOHM SMD |
4,575 | - |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±15% | 750 mA | 750mA | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.382NLTFIXED IND 3.8UH 1.7A 68 MOHM SMD |
1,247 | - |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.8 µH | ±15% | 1.7 A | 1.7A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
P0467NLTFIXED IND 422.5UH 300MA 1.185OHM |
3,511 | - |
|
Datasheet | Ros 2 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 422.5 µH | ±15% | 300 mA | - | Shielded | 1.185Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|
|
PF0580.683NLTFIXED IND 68UH 410MA 827MOHM SMD |
4,814 | - |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±15% | 410 mA | 410mA | Unshielded | 827mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|

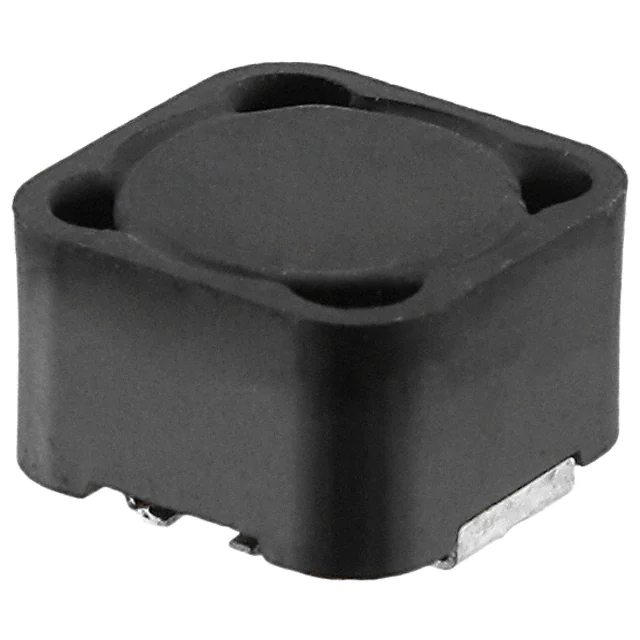

P1172.183NLTFIXED IND 18UH 4A 37 MOHM SMD |
4,537 | - |
|
Datasheet | P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 4 A | 4.3A | Shielded | 37mOhm Max | - | 13MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
|
PG0138.472NLTFIXED IND 4.7UH 10.2A 12.4 MOHM |
3,243 | - |
|
Datasheet | PG0138NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10.2 A | 10.2A | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.193" (4.90mm) |
|

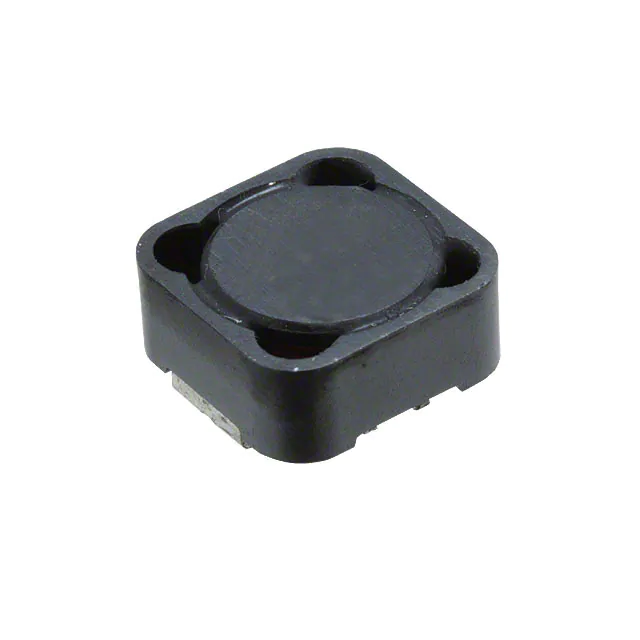

P1171.334NLTFIXED IND 330UH 820MA 620MOHM SM |
1,604 | - |
|
Datasheet | P1171NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 820 mA | 820mA | Shielded | 620mOhm Max | - | 3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
