Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-92108NLFIXED IND 67UH 3.6A 45 MOHM TH |
4,767 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 67 µH | ±20% | 3.6 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia x 0.550" W (26.67mm x 13.97mm) | - |
|
|
PE-92107NLFIXED IND 450UH 3A 200 MOHM TH |
3,770 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 450 µH | ±20% | 3 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
|
PE-92115NLFIXED IND 95UH 7A 25 MOHM TH |
3,549 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 95 µH | ±20% | 7 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|

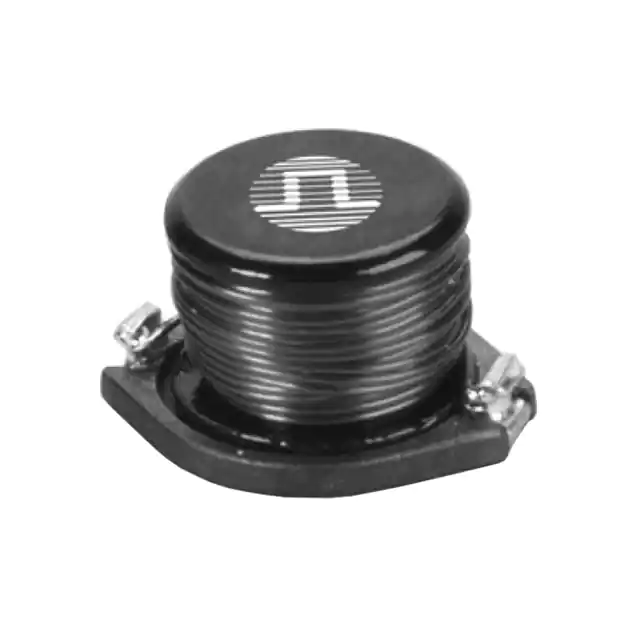

PF0504.403NLTFIXED IND 40UH 4A 50 MOHM SMD |
1,435 | - |
|
Datasheet | PF0504NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 40 µH | ±20% | 4 A | 8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
|
|
PE-53801SNLFIXED IND 259UH 130MA 3.4OHM SMD |
3,529 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 259 µH | ±20% | 130 mA | - | Shielded | 3.4Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|

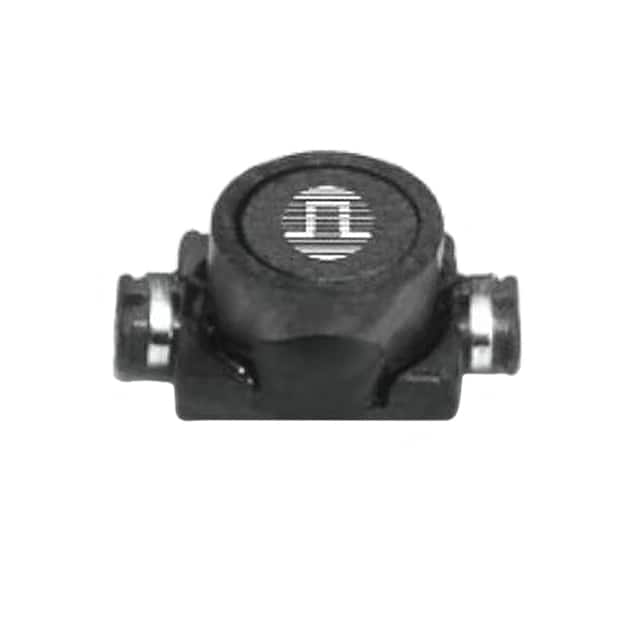

P1174.604NLTFIXED IND 600UH 120MA 2.55OHM SM |
4,342 | - |
|
Datasheet | P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 600 µH | ±20% | 120 mA | 120mA | Shielded | 2.55Ohm Max | - | 3.7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
P1174.222NLTFIXED IND 2.2UH 1.7A 18 MOHM SMD |
2,123 | - |
|
Datasheet | P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.7 A | 1.7A | Shielded | 18mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
PG0434.142NLTFIXED IND 1.4UH 27A 2.1 MOHM SMD |
4,591 | - |
|
Datasheet | PG0434NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.4 µH | ±20% | 27 A | 28A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|

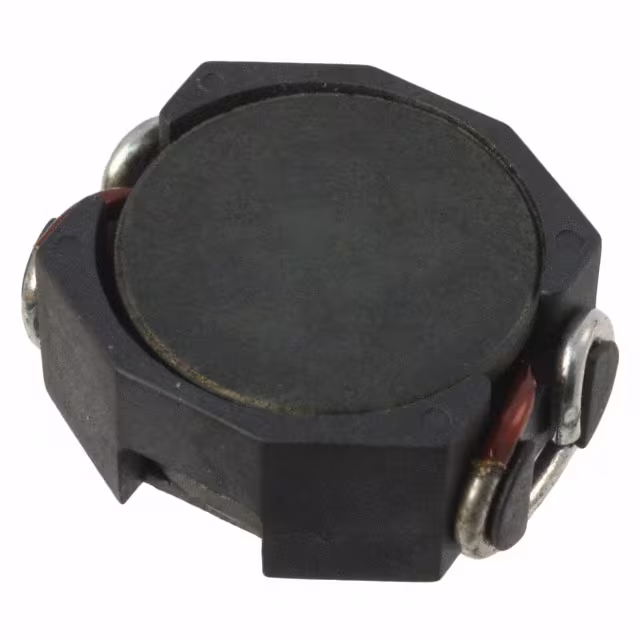

PB2020.102NLTFIXED IND 1.2UH 23.7A 2.2MOHM SM |
3,584 | - |
|
Datasheet | PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 23.7 A | 55A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PF0580.393NLTFIXED IND 39UH 550MA 490MOHM SMD |
3,148 | - |
|
Datasheet | PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±15% | 550 mA | 550mA | Unshielded | 490mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
