Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-0603CDR10KTTFIXED IND 100NH 400MA 580MOHM SM |
2,485 | - |
|
Datasheet | 0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±10% | 400 mA | - | Unshielded | 580mOhm Max | 34 @ 150MHz | 1.4GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|

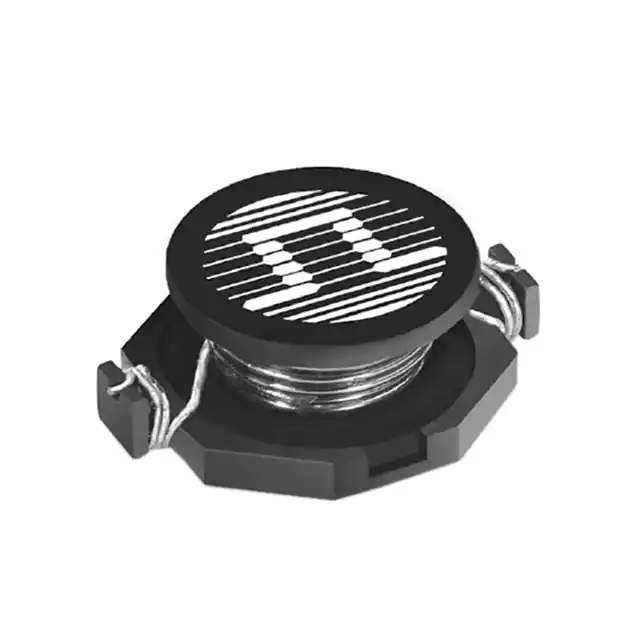

P0752.684NLFIXED IND 680UH 400MA 2.17OHM SM |
4,412 | - |
|
Datasheet | P0752NL | Nonstandard | Tray | Active | Wirewound | - | 680 µH | ±20% | 400 mA | 400mA | Unshielded | 2.17Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

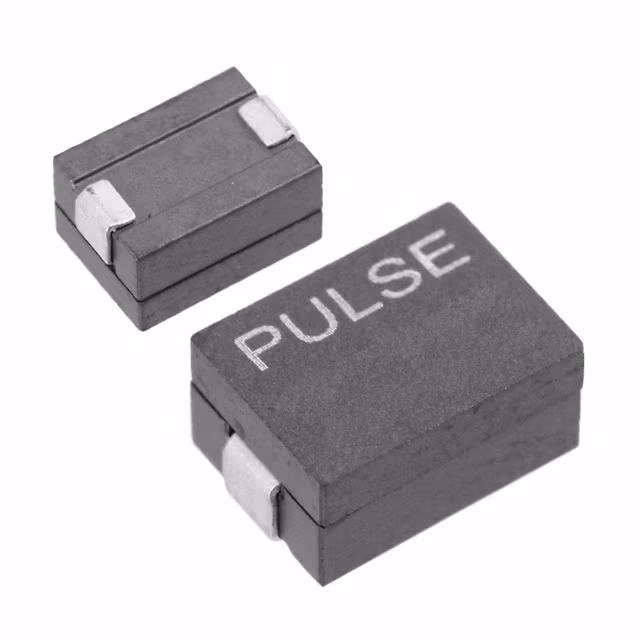

PA0511.221NLFIXED IND 220NH 25A 0.39MOHM SMD |
1,233 | - |
|
Datasheet | PA0511NL | Nonstandard | Tray | Active | - | - | 220 nH | ±20% | 25 A | 33A | Shielded | 0.39mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.96mm) |
|

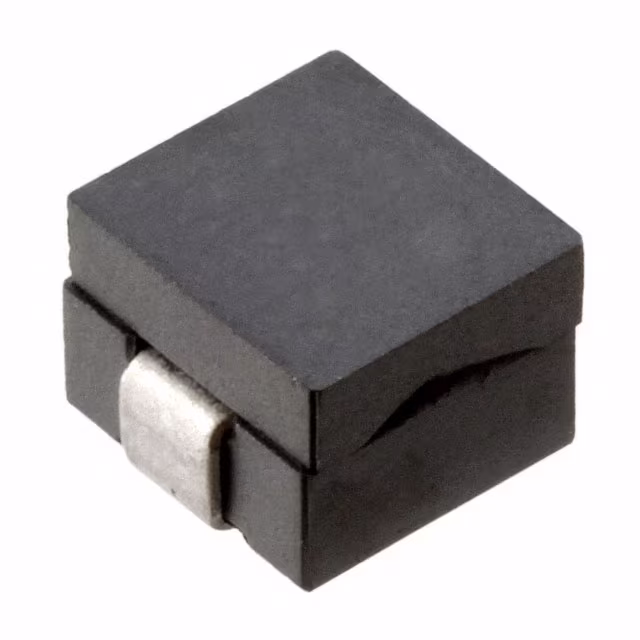

PA0512.101NLFIXED IND 105NH 31A 0.32MOHM SMD |
3,931 | - |
|
Datasheet | PA0512NL | Nonstandard | Tray | Obsolete | - | - | 105 nH | ±20% | 31 A | 46A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|

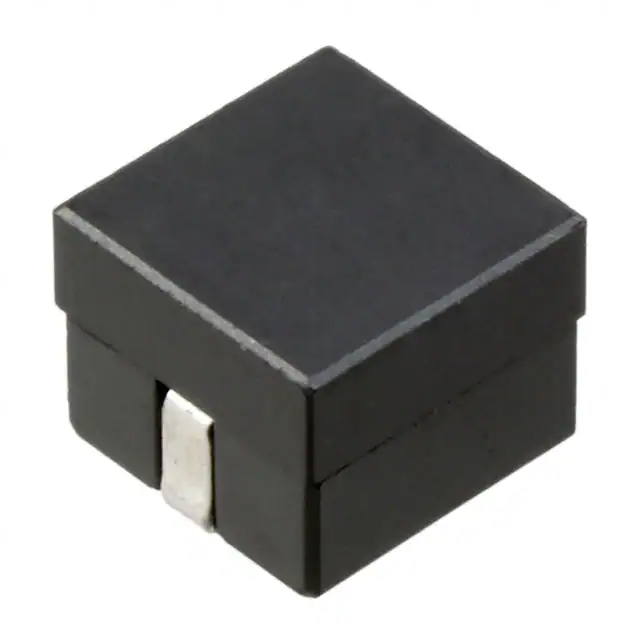

PA0512.151NLFIXED IND 150NH 24A 0.32MOHM SMD |
2,957 | - |
|
Datasheet | PA0512NL | Nonstandard | Tray | Obsolete | - | - | 150 nH | ±20% | 24 A | 30A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
|
PA0512.700NLFIXED IND 72NH 31A 0.32 MOHM SMD |
1,990 | - |
|
Datasheet | PA0512NL | Nonstandard | Tray | Obsolete | - | - | 72 nH | ±20% | 31 A | 58A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
PA0513.321NLFIXED IND 320NH 41A 0.32MOHM SMD |
4,082 | - |
|
Datasheet | PA0513NL | Nonstandard | Tray | Obsolete | - | - | 320 nH | ±20% | 41 A | 50A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
|
PA0513.441NLFIXED IND 440NH 30A 0.32MOHM SMD |
1,441 | - |
|
Datasheet | PA0513NL | Nonstandard | Tray | Obsolete | - | - | 440 nH | ±20% | 30 A | 35A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|

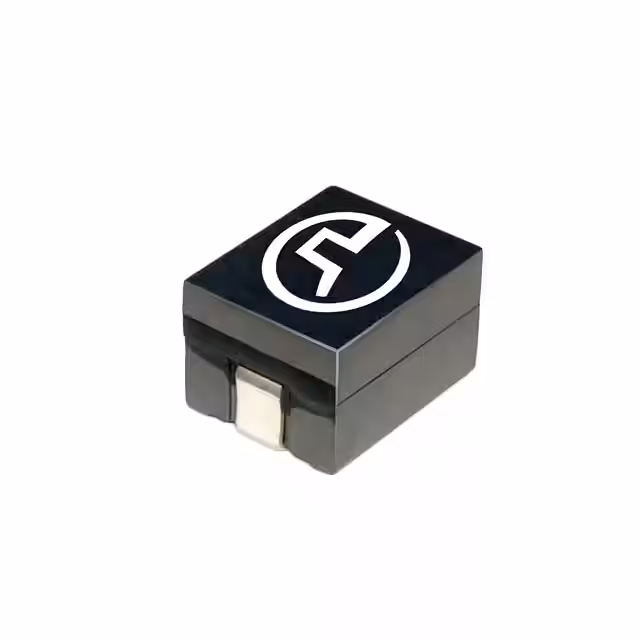

PA1320.171NLFIXED IND 180NH 40A 0.48MOHM SMD |
1,957 | - |
|
Datasheet | PA1320NL | Nonstandard | Tray | Active | - | - | 180 nH | ±20% | 40 A | 44A | Shielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.315" W (10.41mm x 8.00mm) | 0.256" (6.50mm) |
|
PA3288.221HLFIXED IND 220NH 64A 0.29MOHM SMD |
4,464 | - |
|
Datasheet | PA3288.XXXHL | Nonstandard | Tray | Active | - | - | 220 nH | ±15% | 64 A | 45A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
