Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

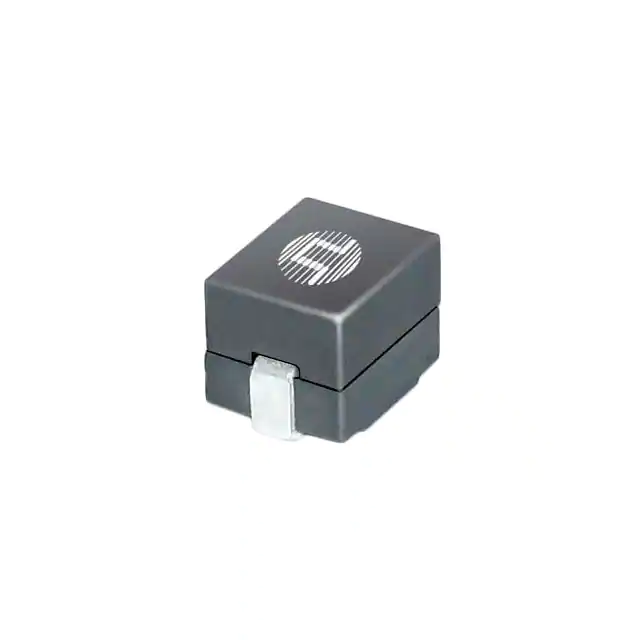

PA3288.301HLFIXED IND 300NH 64A 0.29MOHM SMD |
3,448 | - |
|
Datasheet | PA3288.XXXHL | Nonstandard | Tray | Active | - | - | 300 nH | ±15% | 64 A | 34A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
|

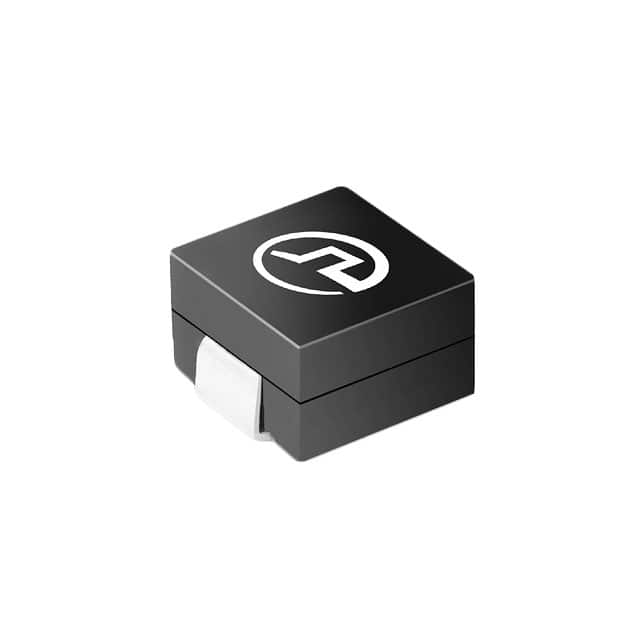

PA3790.181HLFIXED IND 180NH 57A 0.29MOHM SMD |
2,850 | - |
|
Datasheet | PA3790.XXXHL | Nonstandard | Tray | Active | - | - | 180 nH | ±15% | 57 A | 84A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.315" W (12.50mm x 8.00mm) | 0.315" (8.00mm) |
|

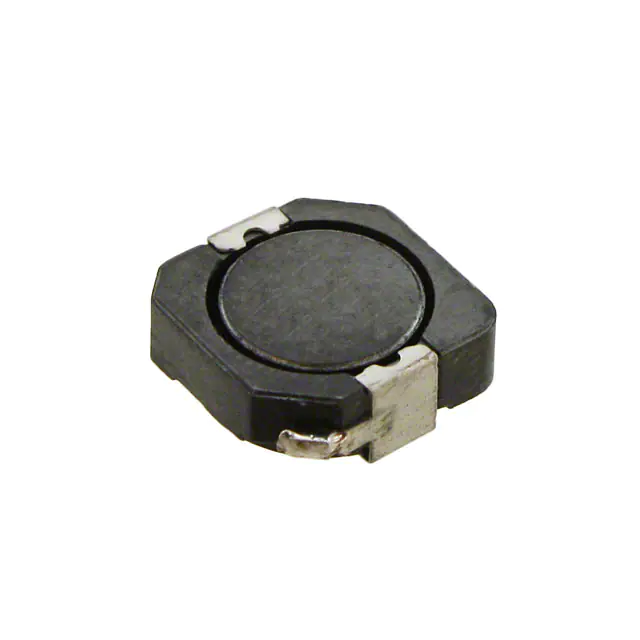

PF0560.522NLFIXED IND 5.2UH 5.4A 22 MOHM SMD |
2,907 | - |
|
Datasheet | PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 5.2 µH | ±30% | 5.4 A | 5.5A | Shielded | 22mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
PG0642.102NLFIXED IND 1UH 14.5A 5.8 MOHM SMD |
4,986 | - |
|
Datasheet | PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 14.5 A | 22A | Shielded | 5.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
|
PG0642.222NLFIXED IND 2.2UH 10A 12.7MOHM SMD |
3,211 | - |
|
Datasheet | PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 10 A | 14A | Shielded | 12.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
|
PG0642.401NLFIXED IND 400NH 20A 3.3 MOHM SMD |
4,094 | - |
|
Datasheet | PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 400 nH | ±20% | 20 A | 32A | Shielded | 3.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
PG0702.102NLFIXED IND 1UH 26A 1.76 MOHM SMD |
1,838 | - |
|
Datasheet | PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 26 A | 26A | Shielded | 1.76mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|

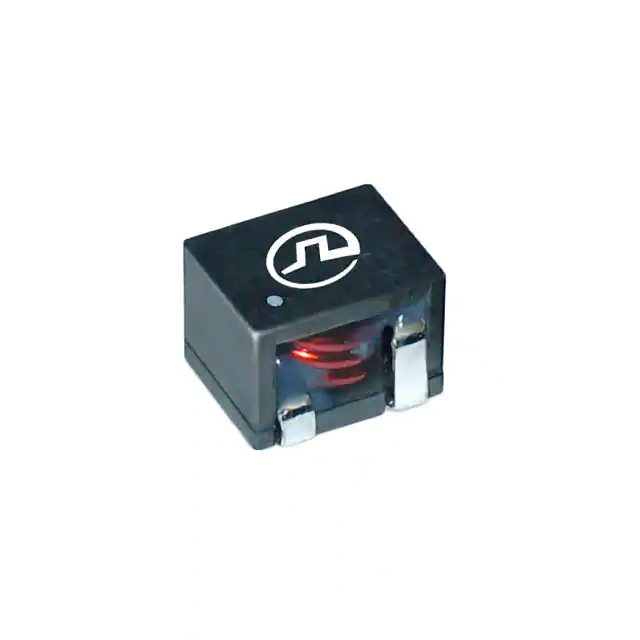

PG1083.682NLFIXED IND 6.8UH 22A 3.8 MOHM SMD |
3,911 | - |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 22 A | 20A | Unshielded | 3.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|

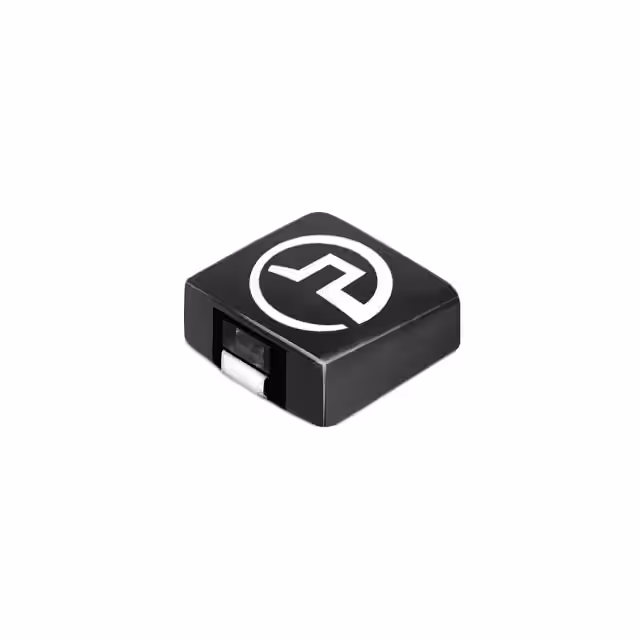

PG0255.401NLFIXED IND 400NH 29A 1.15MOHM SMD |
1,039 | - |
|
Datasheet | PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 400 nH | ±15% | 29 A | 29A | Shielded | 1.15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

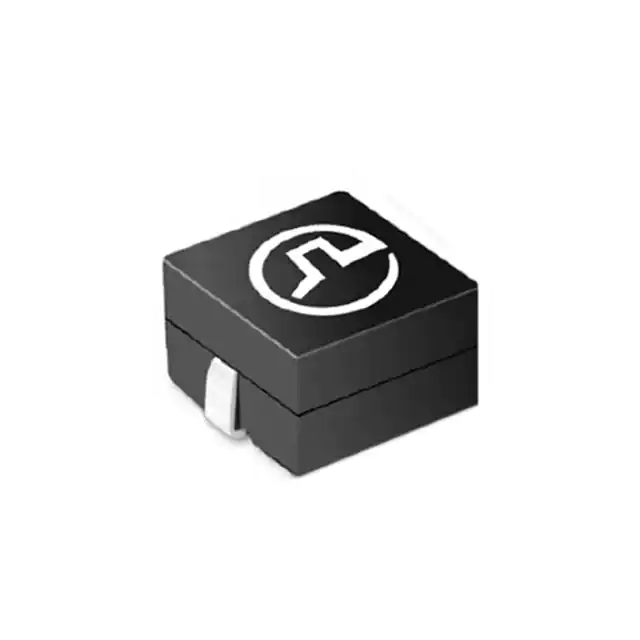

PA0513.261NLFIXED IND 260NH 45A 0.32MOHM SMD |
4,464 | - |
|
Datasheet | PA0513NL | Nonstandard | Tray | Obsolete | - | - | 260 nH | ±20% | 45 A | 60A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
