Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P0752.154NLTFIXED IND 150UH 1A 570 MOHM SMD |
3,769 | - |
|
Datasheet | P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 1 A | 1A | Unshielded | 570mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
P0752.334NLTFIXED IND 330UH 600MA 1.02OHM SM |
2,936 | - |
|
Datasheet | P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 600 mA | 600mA | Unshielded | 1.02Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
P0752.224NLTFIXED IND 220UH 800MA 840MOHM SM |
234 | - |
|
Datasheet | P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 800 mA | 800mA | Unshielded | 840mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PM4343.103NLTFIXED IND 10UH 10A 16.5MOHM SMD |
3,253 | - |
|
Datasheet | PM4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 10 A | 15.5A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
PA5001.102NLTFIXED IND 1UH 9.6A 14.6MOHM SMD |
41,322 | - |
|
Datasheet | PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±20% | 9.6 A | 9.6A | Shielded | 14.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
PA4343.102ANLTFIXED IND 1UH 29A 1.8 MOHM SMD |
63,889 | - |
|
Datasheet | PA4343.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 29 A | 36A | Shielded | 1.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
PA5005.472NLTFIXED IND 4.7UH 8.5A 18.4MOHM SM |
600 | - |
|
Datasheet | PA5005.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±20% | 8.5 A | 10.5A | Shielded | 18.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
PA5119.421NLTFIXED IND 420NH 16A 3.15MOHM SMD |
1,755 | - |
|
Datasheet | PA5119.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 420 nH | ±10% | 16 A | 42A | Shielded | 3.15mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.197" (5.00mm) |
|

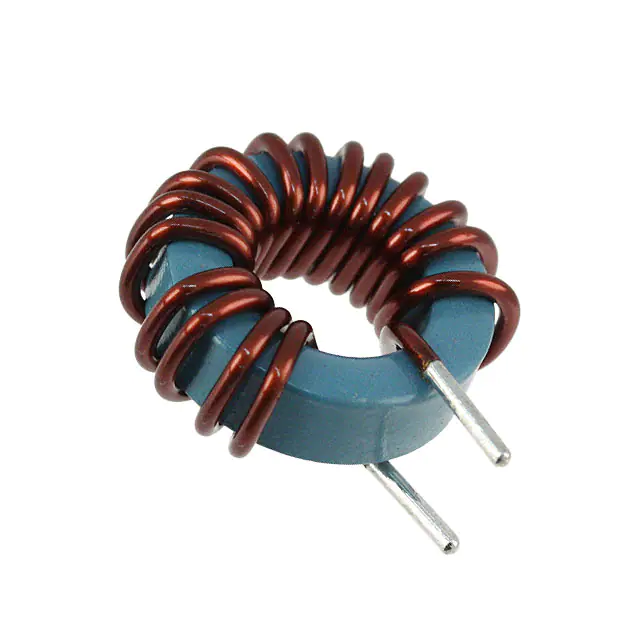

PA0432LNLFIXED IND 12.1UH 20.5A 7.5 MOHM |
1,860 | - |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 12.1 µH | ±20% | 20.5 A | - | Unshielded | 7.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.980" Dia x 0.441" W (24.90mm x 11.20mm) | - |
|

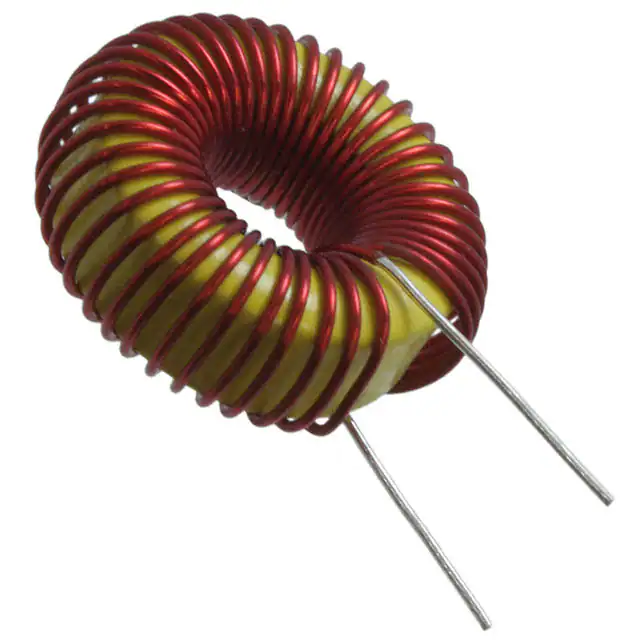

PE-92102NLFIXED IND 100UH 2.6A 100 MOHM TH |
1,668 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 2.6 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" Dia x 0.410" W (21.59mm x 10.41mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
