Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

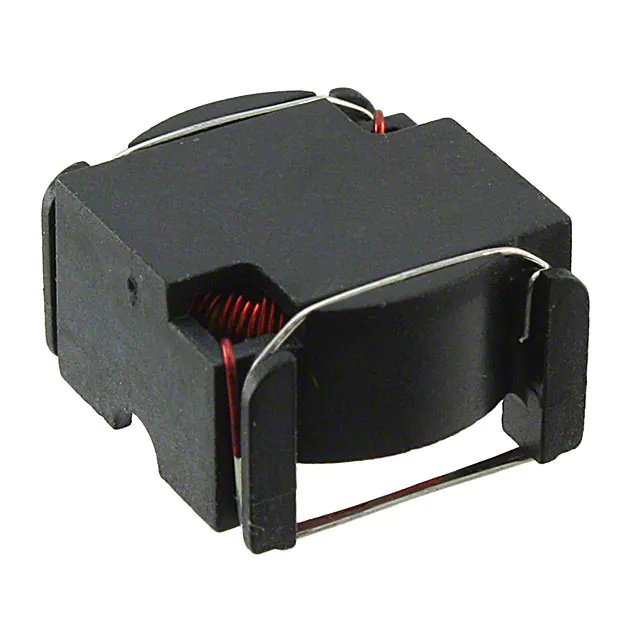

PE-53831SNLTFIXED IND 53UH 1.87A 130MOHM SMD |
1,756 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 53 µH | ±20% | 1.87 A | - | Shielded | 130mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PA4344.104NLTFIXED IND 100UH 5.3A 118MOHM SMD |
4,261 | - |
|
Datasheet | PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | - | 5.3 A | 6.5A | Shielded | 118mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
PA4344.153NLTFIXED IND 15UH 12.5A 20.5MOHM SM |
3,599 | - |
|
Datasheet | PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | - | 12.5 A | 23A | Shielded | 20.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|

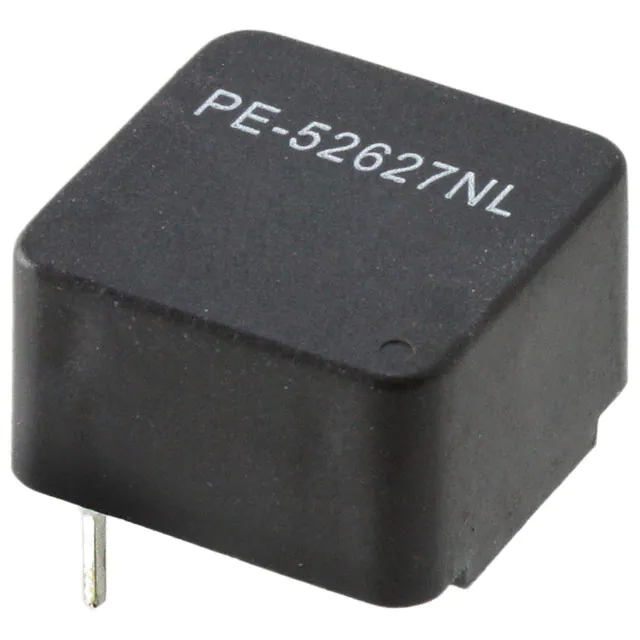

PE-52627NLFIXED IND 330UH 1A 780 MOHM TH |
1,938 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 330 µH | ±20% | 1 A | - | Unshielded | 780mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|

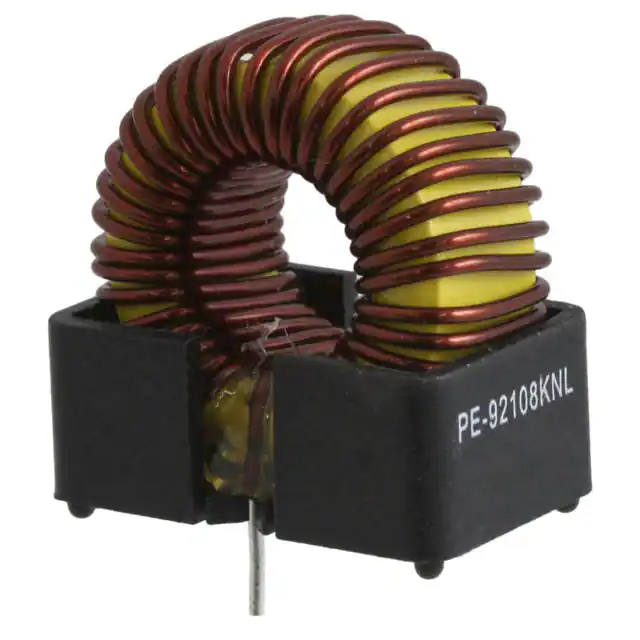

PE-92108KNLFIXED IND 100UH 3.6A 45 MOHM TH |
1,122 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 3 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
PA4344.473ANLTFIXED IND 47UH 9.5A 47 MOHM SMD |
1,585 | - |
|
Datasheet | PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 9.5 A | 9.5A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
PA4344.103ANLTFIXED IND 10UH 21A 10.6 MOHM SMD |
1,065 | - |
|
Datasheet | PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 21 A | 22A | Shielded | 10.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
PA2248.153NLTFIXED IND 15UH 22A 7.5 MOHM SMD |
1,395 | - |
|
Datasheet | PA2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 22 A | 25.5A | Unshielded | 7.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|

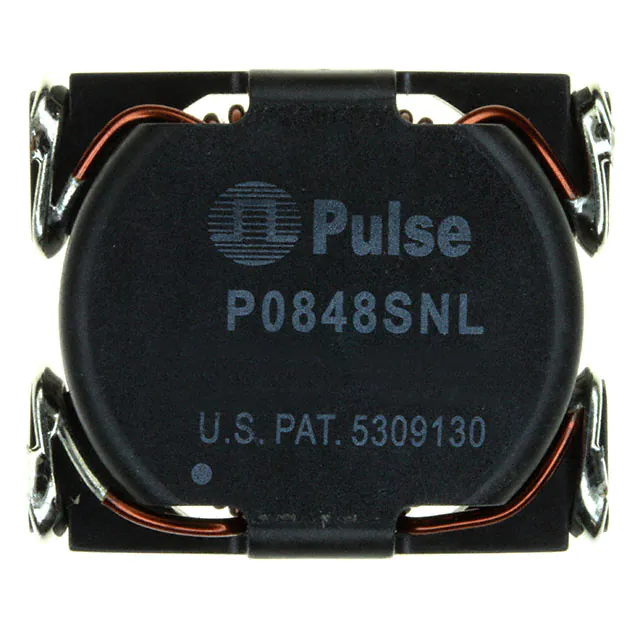

P0848SNLFIXED IND 50UH 5A 25 MOHM SMD |
1,013 | - |
|
Datasheet | Bigfoot | Nonstandard | Tube | Active | Toroidal | - | 50 µH | ±20% | 5 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

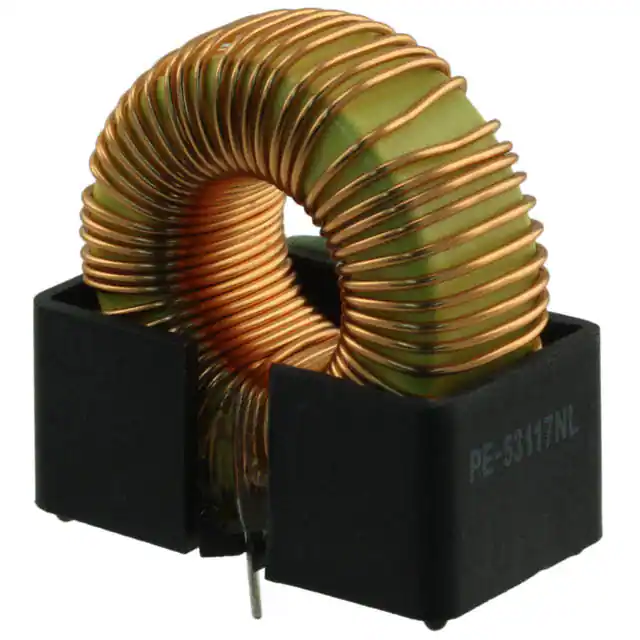

PE-53117NLFIXED IND 330UH 3A 150 MOHM TH |
541 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 330 µH | ±20% | 3 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
