Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4341.252NLTFIXED IND 2.5UH 7A 22 MOHM SMD |
676 | - |
|
Datasheet | PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.5 µH | ±20% | 7 A | 13A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4341.601NLTFIXED IND 600NH 16A 5.2 MOHM SMD |
2,217 | - |
|
Datasheet | PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 600 nH | ±20% | 16 A | 25.5A | Shielded | 5.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
PA4301.334NLTFIXED IND 330UH 285MA 1.7OHM SMD |
208 | - |
|
Datasheet | PA4301.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 285 mA | - | Shielded | 1.7Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|

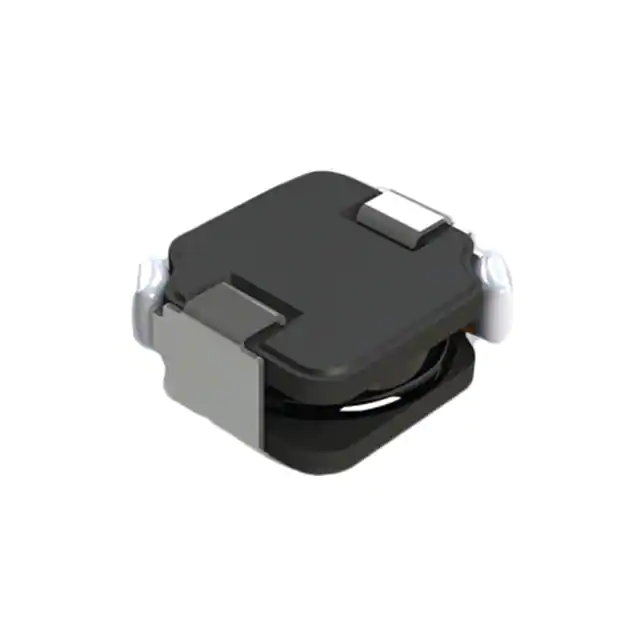

PA4333.332NLTFIXED IND 3.3UH 4.6A 30.5MOHM SM |
1,000 | - |
|
Datasheet | PA4333.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 3.3 µH | ±20% | 4.6 A | 4.6A | Shielded | 30.5mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.291" L x 0.268" W (7.40mm x 6.80mm) | 0.126" (3.20mm) |
|
PA4342.471NLTFIXED IND 470NH 28A 1.5 MOHM SMD |
190 | - |
|
Datasheet | PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 28 A | 43A | Shielded | 1.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PA4309.334NLTFIXED IND 330UH 1.9A 1.215OHM SM |
490 | - |
|
Datasheet | PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 1.9 A | - | Unshielded | 1.215Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
P1167.823NLTFIXED IND 82UH 700MA 350MOHM SMD |
2,538 | - |
|
Datasheet | P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 700 mA | 700mA | Shielded | 350mOhm Max | - | 8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
PA4304.153NLTFIXED IND 15UH 3.3A 30 MOHM SMD |
830 | - |
|
Datasheet | PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.3 A | - | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PA4343.221NLTFIXED IND 220NH 53A 0.6 MOHM SMD |
481 | - |
|
Datasheet | PA4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 53 A | 112A | Shielded | 0.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
PA4343.681NLTFIXED IND 680NH 35A 1.5 MOHM SMD |
490 | - |
|
Datasheet | PA4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 35 A | 55A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
