Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2206.102NLTFIXED IND 1UH 11A 10.8 MOHM SMD |
819 | - |
|
Datasheet | PM2206.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 11 A | 23A | Unshielded | 10.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
|
PM2207.222NLTFIXED IND 2.2UH 13A 12.4MOHM SMD |
969 | - |
|
Datasheet | PM2207.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 13 A | 19A | Unshielded | 12.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
PM2207.332NLTFIXED IND 3.3UH 10A 16.3MOHM SMD |
4,704 | - |
|
Datasheet | PM2207.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 10 A | 15A | Unshielded | 16.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
PG0255.102NLFIXED IND 1UH 21A 3.2 MOHM SMD |
1,361 | - |
|
Datasheet | PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±15% | 21 A | 27A | Shielded | 3.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PA4344.103NLTFIXED IND 10UH 16.5A 13 MOHM SMD |
3,296 | - |
|
Datasheet | PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | - | 16.5 A | 24A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
P0841NLFIXED IND 22.8UH 4.9A 36 MOHM TH |
2,535 | - |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 22.8 µH | ±20% | 4.9 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-53118NLFIXED IND 470UH 2A 170 MOHM TH |
4,660 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 470 µH | ±20% | 2 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
PE-53819SNLFIXED IND 173UH 540MA 600MOHM SM |
1,405 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 173 µH | ±20% | 540 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
P0847SNLFIXED IND 10UH 5A 25 MOHM SMD |
2,273 | - |
|
Datasheet | LCI-50 | Nonstandard | Tube | Active | Toroidal | - | 10 µH | ±20% | 5 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|

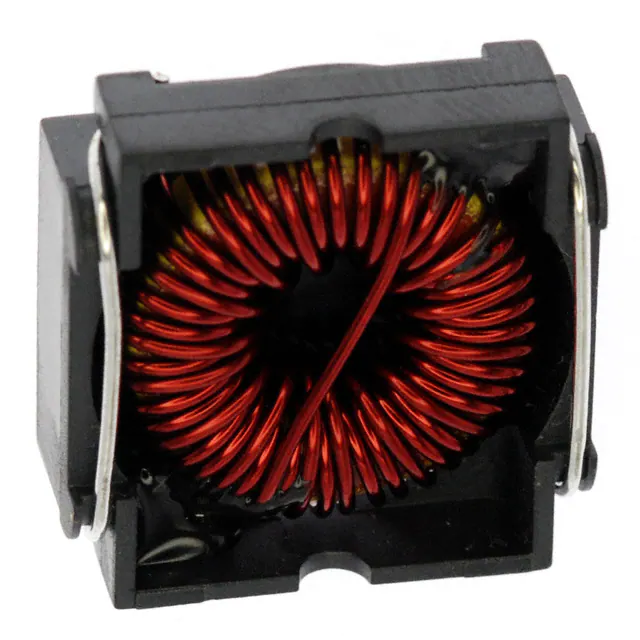

PE-54040SNLFIXED IND 38UH 3A 50 MOHM SMD |
4,967 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 38 µH | ±20% | 3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
