Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB2020.333NLFIXED IND 33UH 6.5A 29 MOHM SMD |
1,498 | - |
|
Datasheet | PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 33 µH | ±20% | 6.5 A | 10A | Unshielded | 29mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PG0936.471NLFIXED IND 470NH 40A 0.87MOHM SMD |
3,323 | - |
|
Datasheet | PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 470 nH | ±20% | 40 A | 65A | Unshielded | 0.87mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
PE-54038SNLFIXED IND 77UH 2.7A 90 MOHM SMD |
4,875 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PG1083.102NLFIXED IND 1UH 40A 1.4 MOHM SMD |
2,251 | - |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 40 A | 70A | Unshielded | 1.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
PE-51514NLFIXED IND 32UH 6.6A 25 MOHM TH |
3,297 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 32 µH | - | 6.6 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|

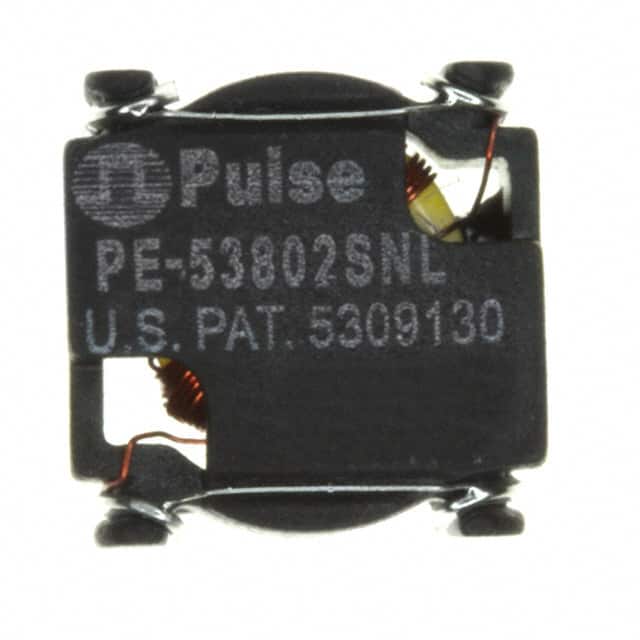

PE-53802SNLFIXED IND 178UH 160MA 2.8OHM SMD |
2,295 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 178 µH | ±20% | 160 mA | - | Shielded | 2.8Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
PE-51513NLFIXED IND 144UH 10A 32 MOHM TH |
1,115 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 144 µH | - | 10 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 2.300" L x 1.110" W (58.42mm x 28.19mm) | 2.300" (58.42mm) |
|
P0751.102NLFIXED IND 1UH 6.8A 10 MOHM SMD |
1,522 | - |
|
Datasheet | P0751NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 6.8 A | 9A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PF0464.223NLFIXED IND 22UH 1.85A 113MOHM SMD |
3,618 | - |
|
Datasheet | PF0464NL | Nonstandard | Tray | Active | - | - | 22 µH | ±20% | 1.85 A | 1.2A | Shielded | 113mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|
PF0560.103NLFIXED IND 10UH 3.8A 35 MOHM SMD |
4,524 | - |
|
Datasheet | PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±30% | 3.8 A | 4.4A | Shielded | 35mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
