Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0702.472NLFIXED IND 4.7UH 8.4A 5.3MOHM SMD |
3,107 | - |
|
Datasheet | PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 8.4 A | 8.4A | Shielded | 5.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
P0250.224NLTFIXED IND 220UH 1.2A 380MOHM SMD |
3,617 | - |
|
Datasheet | P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±15% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|

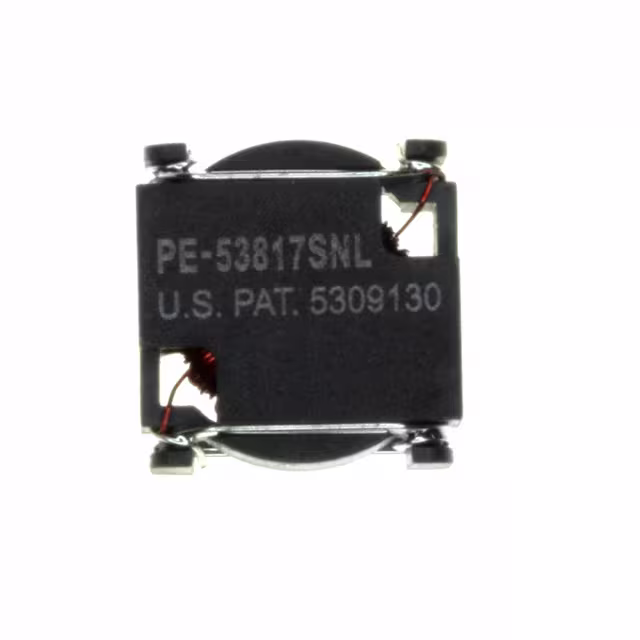

PE-53817SNLFIXED IND 375UH 360MA 1.3OHM SMD |
1,615 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 375 µH | ±20% | 360 mA | - | Shielded | 1.3Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PA4346.471ANLTFIXED IND 470NH 34A 0.9 MOHM SMD |
4,920 | - |
|
Datasheet | PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 34 A | 58A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
PD0120.532NLFIXED IND 5.7UH 10.4A 8.5MOHM SM |
4,012 | - |
|
Datasheet | PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 5.7 µH | ±10% | 10.4 A | 13.6A | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
PE-53600NLFIXED IND 6.2UH 1.4A 70 MOHM SMD |
2,175 | - |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 6.2 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
PG1083.472NLFIXED IND 4.7UH 26A 2.8 MOHM SMD |
2,689 | - |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 26 A | 30A | Unshielded | 2.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
P0846NLFIXED IND 14.8UH 5A 23 MOHM TH |
3,795 | - |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 14.8 µH | ±20% | 5 A | - | Shielded | 23mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.670" L x 0.460" W (17.02mm x 11.69mm) | 0.750" (19.05mm) |
|
PE-53683NLFIXED IND 9.4UH 10.9A 12.3 MOHM |
4,959 | - |
|
Datasheet | SLIC | Nonstandard | Bulk | Active | Toroidal | - | 9.4 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.91mm) |
|
PE-53611NLTFIXED IND 383UH 720MA 862MOHM SM |
1,273 | - |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 383 µH | - | 720 mA | - | Unshielded | 862mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
